Cisco

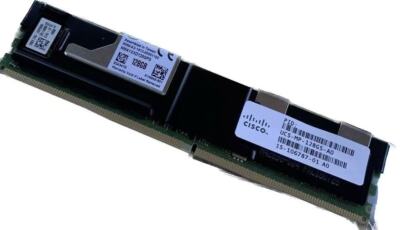

Cisco HX-MP-128GS-B0 | Persistent Memory Module | 128GB | 3200 MT/s | DDR4 | 288-pin DIMM | App Direct & Memory Mode

SKU:HX-MP-128GS-B0

Regular price POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

128GB persistent memory module at 3200 MT/s using a DDR4 DIMM interface to deliver large, byte-addressable capacity with persistence. Ideal for consolidating in-memory databases, boosting VM density, and accelerating analytics. Supports App Direct for persistent namespaces and Memory Mode to enlarge volatile memory capacity with DRAM as cache. Requires a compatible platform, proper BIOS configuration, and OS support for persistent memory.

Features

- High-capacity 128GB persistent memory per DIMM
- 3200 MT/s data rate for improved bandwidth
- App Direct and Memory Mode flexibility
- Works in tandem with DRAM for balanced performance
- Enhances in-memory workload scalability
- Enterprise-grade reliability and monitoring

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Do I need DRAM installed with this module?
A: Yes. Platforms typically require DRAM alongside PMem. DRAM acts as cache in Memory Mode and is required for controller functions.

Q: Is 3200 MT/s backward compatible?
A: It may operate at a lower supported speed if the platform or configuration limits the data rate. Always match to the server’s qualified speeds.

Q: How is capacity presented to the OS?
A: In App Direct mode via persistent namespaces; in Memory Mode as additional volatile memory capacity invisible to the OS as separate media.

Q: What firmware or BIOS settings are needed?
A: Enable and provision persistent memory regions and modes in BIOS/UEFI or through vendor tools before installing the OS or hypervisor.

Q: Can I mix different PMem capacities?
A: Most platforms require symmetrical capacity per channel and CPU. Mixing may be restricted; follow the server’s population guide.

Technical Specifications

- Capacity: 128GB per module
- Data rate: 3200 MT/s
- Interface: DDR4 DIMM (persistent memory class)
- Form factor: 288-pin DIMM
- Module type: Persistent Memory (PMem), not standard DRAM
- Operating modes: App Direct (persistent), Memory Mode (volatile expansion)
- Typical platform support: Intel Xeon Scalable systems that support 3200 MT/s PMem (check server HCL/BIOS)
- Population: Use with DDR4 RDIMMs/LRDIMMs per platform population rules
- Use cases: In-memory databases, virtualization, real-time analytics
- Persistence: Data survives power cycles in App Direct mode
- Relative latency: Between DRAM and NVMe/SSD storage tiers
- Management: Configure and monitor with platform tools/OS utilities (e.g., ipmctl)
