• Gold NVIDIA Ampere VDI GPU Cisco HX-GPU-A16 64GB GDDR6 ECC
1 1

Cisco

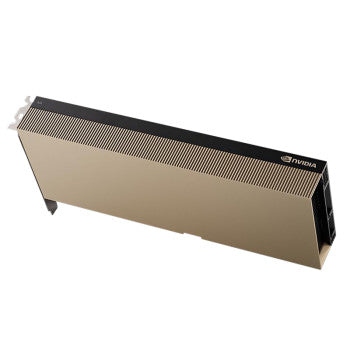

Cisco HX-GPU-A16 | NVIDIA A16 GPU, 64GB GDDR6, 250W, PCIe Gen4 x16

HX-GPU-A16

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.

Description

The Cisco HX-GPU-A16 is a high-density VDI graphics accelerator featuring the NVIDIA A16 with four Ampere architecture GPUs on a single PCIe card. Designed for virtual desktop infrastructure deployments, it delivers 64GB total GDDR6 ECC memory and 250W TDP, providing double the user density of previous generations. Ideal for enterprise virtual workstation and virtual PC environments requiring graphics-rich performance and scalability.

Features

NVIDIA Ampere Architecture with four independent GPUs on single PCIe card
- 64GB total GDDR6 ECC memory for reliable virtual desktop deployments
- 5,120 CUDA cores total for parallel graphics and compute processing
- 160 third-generation Tensor Cores for AI and deep learning acceleration
- 40 second-generation RT Cores for real-time ray tracing
- PCIe Gen4 x16 interface for maximum bandwidth (backward compatible with Gen3)
- Passive cooling design optimized for enterprise server environments
- Support for NVIDIA Virtual PC (vPC) and RTX Virtual Workstation (vWS) software
- Multi-instance GPU capability for flexible resource allocation
- Hardware-accelerated video encoding and decoding including H.264, HEVC, and AV1
- Double user density compared to previous generation VDI solutions
- ECC memory protection for enhanced reliability in production environments
- Mixed user profile support enabling simultaneous virtual PC and workstation sessions
- Compatible with VMware vSphere, Citrix Virtual Apps and Desktops, and Microsoft Azure Stack HCI

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

GPU Architecture: NVIDIA Ampere with four GA107 GPUs on single board
- Total Memory: 64GB GDDR6 ECC (4x 16GB, 16GB per GPU)
- Memory Bandwidth: 800 GB/s aggregate
- CUDA Cores: 5,120 total (1,280 per GPU)
- Tensor Cores: 160 total (40 per GPU, 3rd generation)
- RT Cores: 40 total (10 per GPU, 2nd generation)
- Interface: PCIe Gen4 x16 (backward compatible with Gen3 x16)
- Maximum Power Consumption: 250W TDP
- Power Connector: CPU 8-pin auxiliary power connector
- Form Factor: Double-wide, full-height, full-length (FHFL) passive cooling
- GPU Clock Speed: Base 885 MHz, boost up to 1695 MHz
- Memory Speed: 14.5 Gbps effective
- Dimensions: 267mm length x 112mm width
- Cooling: Passive heatsink design (requires server airflow)
- Compatible with Cisco HyperFlex HX-Series and UCS C-Series rack servers

FAQs

Q: What is the primary use case for the NVIDIA A16 GPU?
A: The A16 is purpose-built for high-density virtual desktop infrastructure (VDI) deployments. It excels at hosting graphics-rich virtual PCs and entry-level virtual workstations, supporting use cases from knowledge worker desktops to CAD applications. The quad-GPU design enables flexible resource allocation across mixed user profiles on a single card.

Q: How many virtual desktop users can the A16 support?
A: The A16 delivers double the user density compared to previous generation VDI GPUs. When combined with NVIDIA Virtual PC (vPC) or RTX Virtual Workstation (vWS) software, it can support numerous concurrent users depending on workload type, with optimized performance for knowledge workers and graphics-intensive applications.

Q: What server compatibility should I consider for the HX-GPU-A16?
A: The HX-GPU-A16 is designed for Cisco HyperFlex HX-Series nodes and UCS C-Series rack servers with PCIe Gen4 x16 slots. It requires a double-wide PCIe slot, appropriate server power supply capacity (minimum 250W for the GPU), and proper airflow for passive cooling. Check your specific HyperFlex or UCS model documentation for GPU slot compatibility and power requirements.

Q: Does the A16 require additional software licensing?
A: Yes, the A16 requires NVIDIA vGPU software licensing to enable virtual desktop and workstation functionality. Options include NVIDIA Virtual PC (vPC) for virtual desktops or NVIDIA RTX Virtual Workstation (vWS) for workstation-class applications. Licensing is typically per concurrent user or per GPU, depending on the deployment model.

Q: What are the key advantages of the Ampere architecture in the A16?
A: The NVIDIA Ampere architecture in the A16 provides second-generation RT Cores for ray tracing, third-generation Tensor Cores for AI-accelerated workloads, enhanced video encoding/decoding including AV1 support, and improved power efficiency. The quad-GPU design allows flexible partitioning and mixed workload support on a single card, maximizing infrastructure utilization.
