Cisco

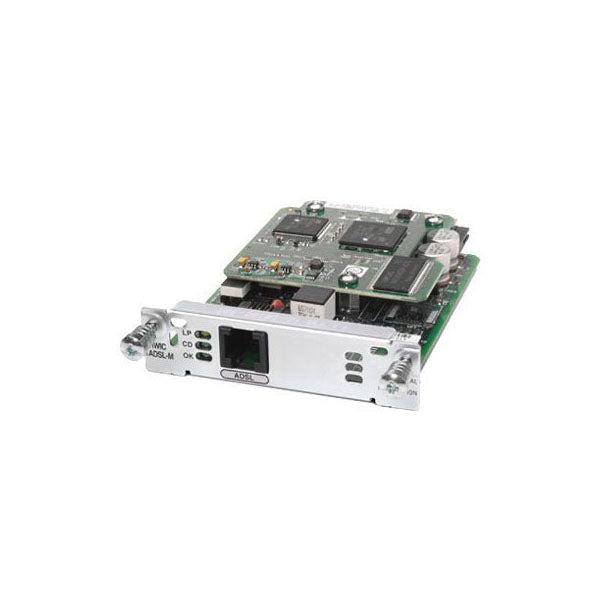

Cisco HWIC-1ADSL-M | 1x ADSL2/2+ Annex M (RJ-11), 24/3.3 Mbps max, ATM PPPoA/PPPoE, ISR HWIC

SKU:HWIC-1ADSL-M

Regular price POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

Single-port ADSL2/2+ Annex M HWIC that brings high-performance DSL termination directly into ISR routers. Supports full-rate ADSL2+ with Annex M for higher upstream bandwidth and common encapsulations for seamless integration with service providers. Ideal for branch WAN uplinks where simplicity and control are required.

Features

- Integrated ADSL2/2+ Annex M termination in the router
- Annex M support for enhanced upstream bandwidth
- Flexible encapsulations: PPPoA/PPPoE and RFC 1483/2684
- ATM QoS with multiple PVCs for traffic separation
- Rich line diagnostics and performance statistics

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Does this module work on Annex B (ISDN) lines?
A: No. This model is for Annex A/M over POTS. For Annex B, use an ADSL over ISDN variant.

Q: What upstream speeds can I expect with Annex M?
A: Up to approximately 3.3 Mbps under ideal conditions; actual rates depend on loop length and provider.

Q: Is an external splitter required?
A: Follow your provider's guidance; many deployments use microfilters or a central splitter for POTS voice and DSL.

Q: Can I terminate PPPoE directly on the router?
A: Yes, PPPoE and PPPoA are supported for provider-facing authentication.

Q: Which ISR platforms support this HWIC?
A: ISR 1800/2800/3800 and ISR G2 1900/2900/3900 with available HWIC slots.

Technical Specifications

- Interfaces: 1x ADSL over POTS (Annex A/M), RJ-11
- DSL standards: ITU G.992.1 (ADSL), G.992.3 (ADSL2), G.992.5 (ADSL2+), Annex M
- Line coding: DMT, support for interleaved and fast path
- Max data rates: up to 24 Mbps downstream, up to 3.3 Mbps upstream with Annex M (service dependent)
- Encapsulations: PPPoA, PPPoE, RFC 1483/2684 bridging, Routed Bridge Encapsulation
- ATM features: AAL5, multiple PVCs (VPI 0-255, VCI 32-65535), OAM F4/F5
- DSL features: SRA (seamless rate adaptation), bit swapping, noise margin/attenuation reporting
- Connector: RJ-11 for ADSL line (external splitter/microfilters as required by provider)
- Platform compatibility: ISR 1800/2800/3800 and ISR G2 1900/2900/3900 HWIC slots
- Software requirement: Cisco IOS 12.4T or later (feature-dependent)
- Management: CLI, SNMP, per-PVC QoS and shaping
