Cisco GRWIC-4T | CGR 2010 4-Port Serial WAN Card, 8 Mbps Sync
SKU:GRWIC-4T
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

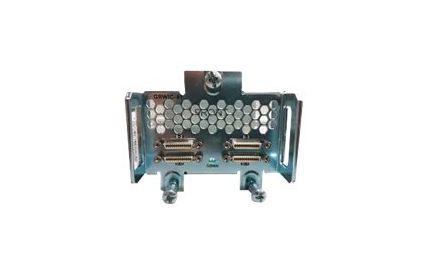

The GRWIC-4T is a single-slot, 4-port Smart Serial WAN interface card for the ruggedised Cisco Connected Grid Router 2010 (CGR 2010). It connects legacy utility and power substation equipment such as RTUs, protection relays and SCADA systems to an IP network through the router.
Each of the four ports supports synchronous operation up to 8 Mbps and asynchronous operation up to 230.4 kbps. Ports use the Cisco 12-in-1 Smart Serial connector, and DTE or DCE mode is set by the cable attached, with DCE clocking configured through the clock rate command. HDLC, PPP and Frame Relay encapsulation are supported, along with EIA-232, EIA-449, EIA-530/530A, V.35 and X.21 signalling. The card draws about 4.8 W from the router backplane and has no slot restrictions in the CGR 2010.
The card runs under the CGR 2010 Cisco IOS image (15.4(1)CG1 or later) with no separate licence for the card itself. It is built to IEEE 1613 and IEC 61850-3 substation standards with continuous operation from -40 to +60 C. It works with the Cisco serial cables CAB-SS-V35MT/FC, CAB-SS-232MT/FC, CAB-SS-449MT/FC, CAB-SS-X21MT/FC, CAB-SS-530MT/FC and CAB-SS-530AMT/FC.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Meets IEEE 1613 and IEC 61850-3 power substation networking standards
- Supports both synchronous and asynchronous serial protocols
- DTE or DCE operation determined by the serial cable attached
- Lead manipulation to ignore, view and monitor input signals
- Raw Socket and protocol translation between T101/T104 and DNP3-IP/DNP3-Serial
- Supports legacy protocol transport, console server and dial access server applications
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Number of ports: 4
- Connector: Cisco 12-in-1 Smart Serial
- Synchronous speed: up to 8 Mbps per port
- Asynchronous speed: up to 230.4 kbps per port
- Encapsulation: HDLC, PPP, Frame Relay
- Signalling: EIA-232, EIA-449, EIA-530/530A, V.35, X.21
- Slot restrictions: None
- Dimensions (H x W x D): 7.62 x 5.08 x 16.51 cm
- Typical power consumption: approx. 4.8 W
- Operating temperature (continuous): -40 to +60 C
- Operating temperature (type test): -40 to +85 C for 100 hours
- Operating humidity: 5 to 95% non-condensing
- Operating altitude: up to 3,048 m with temperature de-rating
- Operating shock and vibration: 30G at 11 ms
- Non-operating temperature: -40 to +85 C
- Seismic: NEBS GR-63 (5.4.1)
- LED: 1 bi-colour CONN LED for ports 0-3
- Minimum software: Cisco IOS 15.4(1)CG1
- Compliance: IEEE 1613, IEC 61850-3, IEC 60870-2-2, IEC 60068-2-2
FAQs
Q: Which router does the GRWIC-4T fit?
A: It fits the Cisco 2010 Connected Grid Router (CGR 2010) and can be installed in any GRWIC slot. It requires Cisco IOS 15.4(1)CG1 or later.
Q: Does it need its own licence?
A: No separate licence is needed for the card. It runs under the CGR 2010 Cisco IOS image, and the router itself uses Data and Security licences for its feature sets.
Q: How is DTE or DCE mode selected?
A: The mode is determined by the Smart Serial cable you attach. For DCE operation, clocking is set using the clock rate command.
Q: Which serial cables does it work with?
A: It uses Cisco 12-in-1 serial cables: CAB-SS-V35MT/FC, CAB-SS-232MT/FC, CAB-SS-449MT/FC, CAB-SS-X21MT/FC, CAB-SS-530MT/FC and CAB-SS-530AMT/FC.
Q: How is the card powered?
A: It draws power from the CGR 2010 chassis backplane, so no separate supply is needed. Typical consumption is approximately 4.8 W.
