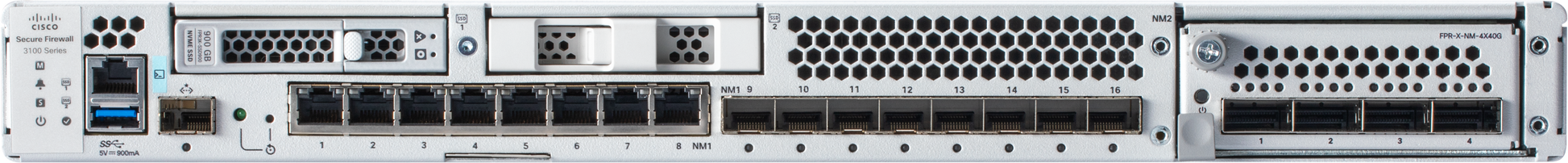

• Cisco Secure Firewall 3130 ASA 1U silver server rack with ports and slots
1 1

Cisco

Cisco FPR3130-ASA-K9 | Secure Firewall 3130 Firewall, 8x 1G RJ45, 8x 10/25G SFP28

FPR3130-ASA-K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco Secure Firewall 3130 ASA is a high-performance 1U security appliance designed for enterprise network edges, data centers, and high-throughput VPN deployments. It delivers 42 Gbps stateful firewall throughput and supports up to 6 million concurrent connections with 15,000 VPN peers. With 8x 1G RJ45 copper ports, 8x 1/10/25G SFP28 fiber interfaces, and an expansion slot for network modules supporting up to 40G connectivity, the 3130 offers flexible deployment options with dual hot-swap power supplies and advanced threat defense capabilities.

Features

Runs Cisco Secure ASA software with option to reimage to Firepower Threat Defense (FTD)
- 42 Gbps stateful firewall throughput with 39 Gbps multiprotocol performance
- 6 million concurrent firewall connections with 875,000 new connections per second
- IPsec VPN throughput of 14 Gbps (28 Gbps with VPN hardware offload)
- Support for up to 15,000 site-to-site and remote access VPN peers
- Up to 50 security contexts for multi-tenant virtual firewall deployments
- 8x 1/10/25G SFP28 ports for high-speed fiber connectivity
- 8x 1G RJ45 copper ports for flexible network integration
- Network module expansion slot supporting 8x 1/10/25G or 2x 40G QSFP+ modules
- Dual hot-swappable 400W AC power supplies for redundancy
- Hot-swappable 3+1 redundant fan modules with front-to-back airflow
- 900 GB SSD storage with RAID1 capability for logging and configuration resilience
- Clustering support for up to 16 units to scale throughput and provide high availability
- Q-in-Q (stacked VLAN) support with up to two 802.1Q headers per packet
- Application Visibility and Control (AVC), URL filtering, and High Availability
- Integrated 1/10G SFP management port for out-of-band management
- 1U rack-mountable form factor optimized for data center and enterprise deployment
- Operating temperature range of 0°C to 40°C with 5% to 85% non-condensing humidity
- Compatible with Cisco Defense Orchestrator for cloud-based centralized management

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 1U rack-mountable appliance
- Fixed Interfaces: 8x 10/100/1000BASE-T RJ45, 8x 1/10/25G SFP/SFP+/SFP28
- Network Module Slot: 1x expansion bay (supports 8x 1/10/25G or 2x 40G QSFP+ modules)
- Management: 1x 1/10G SFP management port, 1x RJ45 console, 1x USB 3.0
- ASA Firewall Throughput: 42 Gbps (stateful inspection, 1500B UDP), 39 Gbps (multiprotocol)
- Concurrent Sessions: 6 million firewall connections
- New Connections: 875,000 per second
- IPsec VPN Throughput: 14 Gbps (28 Gbps with VPN offload)
- Maximum VPN Peers: 15,000
- Security Contexts: Up to 50 virtual firewalls
- Storage: 900 GB SSD with RAID1 slot
- Memory: 128 GB DDR4 RAM
- Power: Dual hot-swappable 400W AC power supplies
- Fans: 3+1 redundant hot-swappable configuration
- Dimensions: 1.7 x 17 x 20 in (4.3 x 43.2 x 50.8 cm)
- Weight: Approximately 25 lbs (11.4 kg) fully configured
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Software: Cisco Secure ASA (can be reimaged to FTD)
- Clustering: Supports up to 16 nodes for horizontal scaling

FAQs

Q: What is the difference between the FPR3130-ASA-K9 and FPR3130-NGFW-K9?
A: Both SKUs use identical hardware. The FPR3130-ASA-K9 ships with ASA software for traditional firewall management via CLI or ASDM, while the FPR3130-NGFW-K9 ships with Firepower Threat Defense (FTD) for next-generation firewall features managed by FMC or FDM. The software can be reimaged to switch between ASA and FTD modes.

Q: Can the Secure Firewall 3130 support 25G and 40G interfaces?
A: Yes. The 3130 features 8x fixed SFP28 ports supporting 1G, 10G, or 25G speeds, and includes one network module slot that accepts optional modules for 8x 1/10/25G or 2x 40G QSFP+ connectivity, making it suitable for high-bandwidth data center and core network deployments.

Q: What deployment scenarios is the 3130 best suited for?
A: The 3130 is designed for enterprise Internet edge firewalls, data center segmentation, high-throughput VPN aggregation, and campus core security. Its 42 Gbps firewall throughput, 6 million concurrent sessions, and support for 15,000 VPN peers make it ideal for medium to large enterprise environments with high traffic volumes.

Q: Does the 3130 support clustering for increased performance?
A: Yes. The Secure Firewall 3130 supports clustering of up to 16 units to scale firewall throughput and provide high availability. Clustering is available in both ASA and FTD operating modes, allowing organizations to grow capacity as network demands increase.

Q: Can the 3130 run Firepower Threat Defense for SD-WAN integration?
A: Yes. When reimaged to run FTD software, the 3130 can integrate with Cisco SD-WAN (Viptela) for unified SASE and secure access service edge deployments, combining routing, security, and application-aware path selection in a single platform.
