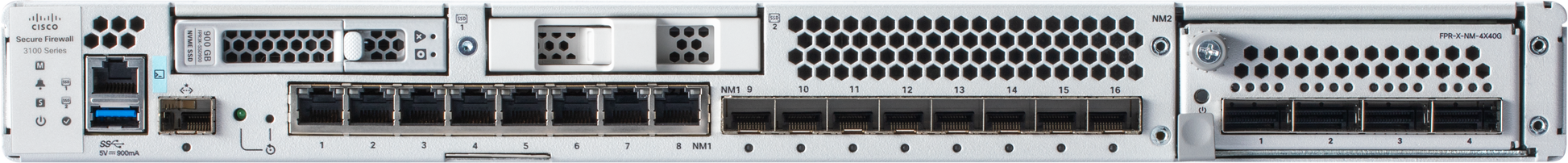

• Cisco Secure Firewall 3110 ASA silver 1U server rack with multi-gig ports
1 1

Cisco

Cisco FPR3110-ASA-K9 | Secure Firewall 3110 ASA Firewall, 8x RJ45, 8x 10G SFP+

FPR3110-ASA-K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco Secure Firewall 3110 ASA (FPR3110-ASA-K9) is a 1U enterprise firewall appliance designed for data center edges, large campus networks, and high-throughput perimeters. Running proven ASA software, it delivers 18 Gbps stateful firewall throughput and 17 Gbps multi-protocol inspection, with support for 2 million concurrent sessions and up to 3,000 VPN peers. Its 8x 1G RJ45 and 8x 1/10G SFP+ interfaces, expandable via optional network modules, provide flexible connectivity for complex multi-zone deployments, clustering, and SD-WAN integration.

Features

Cisco ASA software with stateful firewall inspection, NAT, PAT, and IPsec VPN
- Compatible with Cisco Firewall Threat Defense (FTD) for next-generation IPS and advanced threat protection
- 18 Gbps stateful firewall throughput (ASA mode), 17 Gbps multi-protocol inspection
- 17 Gbps FTD throughput with application visibility and control (AVC) and IPS enabled
- 2 million concurrent sessions and 200,000 connections per second for large-scale enterprise deployments
- 8x 1G RJ45 and 8x 1/10G SFP+ base interfaces with modular expansion slot
- Support for optional 1/10/25G network modules, expandable up to 24 total Ethernet ports
- Up to 3,000 VPN peers with 8.5–11 Gbps IPsec VPN throughput
- Active/active clustering and high availability for redundancy and scalability
- Multi-context support: 2 included, up to 100 virtual contexts (license-dependent)
- Q-in-Q (stacked VLAN) support with up to two 802.1Q headers per packet
- Fail-to-wire (FTW) network module support for inline bypass redundancy
- TLS decryption for encrypted traffic inspection (4.8–8 Gbps throughput)
- Application-based Quality of Service (QoS) for traffic prioritization
- Smart Licensing for simplified license management and entitlement tracking
- SD-WAN integration for hybrid WAN and cloud connectivity
- Hot-swappable 900 GB SSD for high-availability storage
- Optional dual 400W AC or DC power supplies for redundancy
- Centralized management via Cisco Secure Firewall Management Center (FMC) or Cisco Defense Orchestrator (CDO)
- NEBS Level 3 certified for demanding environmental conditions

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Model: Cisco Secure Firewall 3110 ASA (FPR3110-ASA-K9)
- Form Factor: 1U rack-mountable
- Interfaces: 8x 1G RJ45, 8x 1/10G SFP+
- Expansion: Optional network module slot for additional 1/10/25G interfaces (up to 24 total ports)
- Firewall Throughput (ASA): 18 Gbps stateful inspection, 17 Gbps multi-protocol
- Firewall Throughput (FTD): 17 Gbps FW + AVC + IPS
- IPS Throughput: 17 Gbps
- IPsec VPN Throughput: 8.5–11 Gbps
- Maximum VPN Peers: 3,000
- Concurrent Sessions: 2 million
- Connections Per Second: 200,000
- Multi-Context Support: 2 included, up to 100 (license-dependent)
- Management Interfaces: 1x 1G Ethernet, 1x RJ-45 console, USB 3.1
- Storage: Hot-swappable 900 GB SSD
- Power Supply: Single 400W AC (dual 400W AC or DC optional)
- Software: Cisco ASA or Firewall Threat Defense (FTD)
- Clustering: Active/active HA clustering supported
- Management: Cisco Secure Firewall Management Center (FMC), Cisco Defense Orchestrator (CDO)
- Certifications: NEBS Level 3, UL 62368-1, CAN/CSA-C22.2 No. 62368-1

FAQs

Q: What is the difference between ASA and FTD software on the FPR3110-ASA-K9?
A: The FPR3110-ASA-K9 ships with Cisco ASA software, offering stateful firewall, VPN, and multi-context capabilities with 18 Gbps throughput. The hardware can also run Firewall Threat Defense (FTD) software, which adds next-generation IPS, application visibility, and advanced threat protection with 17 Gbps throughput. Switching between ASA and FTD requires a software image change and impacts licensing and management.

Q: Can the FPR3110-ASA-K9 support 10G or 25G uplinks?
A: Yes. The base FPR3110-ASA-K9 includes 8x 1/10G SFP+ ports capable of 10 Gbps. The appliance also features a network module expansion slot that supports optional 10G or 25G SFP/SFP28 network modules, allowing you to scale interface speeds and port density up to 24 total Ethernet ports for data center aggregation or high-speed uplinks.

Q: What is the maximum number of VPN peers and IPsec throughput for the FPR3110-ASA-K9?
A: The FPR3110-ASA-K9 supports up to 3,000 concurrent VPN peers and delivers 8.5–11 Gbps of IPsec VPN throughput, making it suitable for secure remote access and site-to-site connectivity at enterprise scale. Its enhanced VPN performance is designed to support hybrid work environments and distributed branch offices.

Q: Does the FPR3110-ASA-K9 support clustering and high availability?
A: Yes. The FPR3110-ASA-K9 supports active/active high availability clustering when running ASA software, enabling redundancy and load distribution across multiple appliances. This feature provides operational continuity and horizontal scalability for mission-critical enterprise and data center deployments.

Q: Can the FPR3110-ASA-K9 be managed centrally with other Cisco Firepower appliances?
A: Yes. The FPR3110-ASA-K9 can be managed using Cisco Secure Firewall Management Center (FMC) for on-premises centralized policy, event correlation, and reporting across all Firepower appliances. It also supports Cisco Defense Orchestrator (CDO) for cloud-based management, providing unified policy management for distributed firewall deployments.
