Cisco

Cisco FPR2140-K9 | Firepower 2100 Firewall, 12x RJ45, 4x 10G SFP+, 64GB

SKU:FPR2140-K9

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

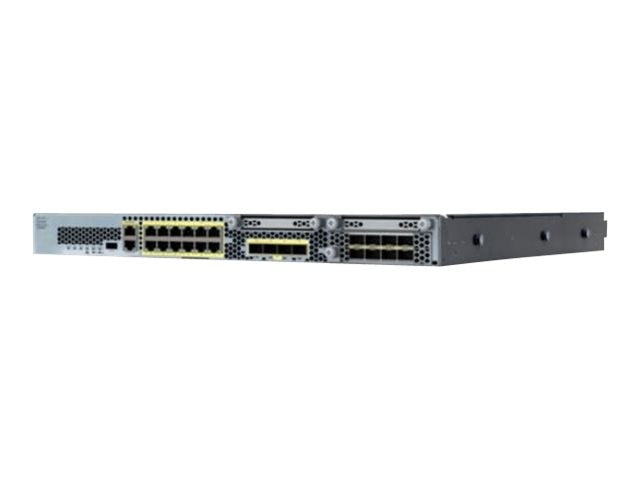

The Cisco Firepower 2140 is the top model in the 1RU Firepower 2100 series of modular security appliances. It is positioned as a next-generation firewall and IPS platform for the Internet edge and data centre edge, and runs either Cisco Firepower Threat Defense (FTD) or Cisco ASA software.

This chassis SKU provides 12 fixed RJ-45 10M/100M/1G ports and four fixed 1/10-Gbps SFP+ ports, with one network module bay for additional interfaces. It carries 64 GB of system memory, a 200 GB SSD in slot 1, and two hot-swappable 400 W AC power supplies, so it suits deployments that need redundant power in a 1RU footprint. It is the chassis SKU without a software bundle, so a software image and subscription licences are needed to operate it. Software-bundled options are sold under FPR2140-NGFW-K9 (FTD) and FPR2140-ASA-K9 (ASA).

Supported network modules include FPR2K-NM-8X1G, FPR2K-NM-8X10G, FPR-NM-8X1G-F, FPR2K-NM-6X1SX-F, FPR2K-NM-6X10SR-F and FPR2K-NM-6X10LR-F. The second SSD slot is reserved for the Malware Storage Pack.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Runs Cisco Firepower Threat Defense (FTD) or Cisco ASA software
- Modular design with one network module bay for added port density
- Redundant, hot-swappable AC power supplies, with DC supply option
- Dual SSD slots with one reserved for the Malware Storage Pack
- Mix of 1G copper and 10G SFP+ fixed ports for edge connectivity
- Dedicated management, console and USB ports for out-of-band access

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Form factor: 1 RU, 19-inch rack mount
- Fixed network ports: 12 x RJ-45 10M/100M/1G
- SFP ports: 4 x fixed 1/10-Gbps SFP+
- Network module slots: 1 (not hot-swappable)
- Maximum number of interfaces: 24
- System memory: 64 GB
- Flash: 8 G (nominal)
- Cavium NPU RAM: 16 G
- Storage: 200 GB SSD in slot 1, slot 2 reserved for Malware Storage Pack
- Management port: 1 x 10/100/1000 RJ-45
- Console port: 1 x RS-232 on RJ-45
- USB port: 1 x USB 2.0 Type A (500 mA)
- Power supplies: 2 x 400 W AC, hot-swappable, 1+1 redundancy
- Optional DC power supply: 350 W, -48 to -60 V DC
- AC input: 100 to 240 V AC, 50 to 60 Hz
- Power supply efficiency: 89% at 50% load
- Airflow: Front to rear
- Chassis dimensions (H x W x D): 4.4 x 42.9 x 50.2 cm
- Weight: approximately 9.52 kg
- Operating temperature: 0 to 40 C
- Non-operating temperature: -40 to 65 C
- Operating humidity: 10 to 85% non-condensing
- Operating altitude: up to 10,000 ft
- Sound pressure: 55.7 dBA typical, 76.7 dBA maximum

FAQs

Q: Does the FPR2140-K9 include a software licence?
A: No. FPR2140-K9 is the chassis SKU without a software bundle. It needs a software image and subscription licences to operate. FPR2140-NGFW-K9 (FTD) and FPR2140-ASA-K9 (ASA) are the software-bundled part numbers.

Q: Which network modules does it support?
A: The single module bay supports FPR2K-NM-8X1G, FPR2K-NM-8X10G, FPR-NM-8X1G-F, FPR2K-NM-6X1SX-F, FPR2K-NM-6X10SR-F and FPR2K-NM-6X10LR-F. The bay is not hot-swappable.

Q: What power supplies does it use?
A: It has two power supply slots for 400 W AC modules (FPR2K-PWR-AC-400), which are hot-swappable and run in 1+1 redundancy. An optional 350 W DC module (FPR2K-PWR-DC-350) is also available.

Q: Can I add a second SSD?
A: The chassis has two SSD slots. Slot 1 holds the 200 GB SSD, and slot 2 is reserved for the Malware Storage Pack. FPR2K-SSD100 is the spare SSD part number.

Q: Which software can this firewall run?
A: It runs either Cisco Firepower Threat Defense (FTD) or Cisco ASA software. Check Cisco's compatibility guides for supported versions.
