Cisco FPR2130-ASA-K9 | Firepower 2130 ASA Firewall, 12-Port 1G, 4x 10G SFP+

FPR2130-ASA-K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

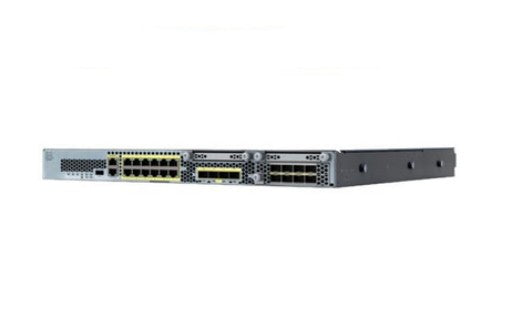

The Cisco FPR2130-ASA-K9 is a 1U rackmount firewall appliance running ASA software, designed for medium to large enterprise network security deployments. It delivers up to 10 Gbps stateful firewall throughput, 5 Gbps multiprotocol throughput, and supports 2 million concurrent connections with 40,000 new connections per second. With 12 fixed Gigabit RJ-45 ports, 4x 10G SFP+ uplinks, and one network module bay for expansion, the Firepower 2130 offers flexible connectivity and scalability for edge, data center, and high-availability security architectures.

Features

Stateful firewall inspection with up to 10 Gbps throughput
- IPsec VPN with up to 1 Gbps encrypted traffic performance
- Support for 2 million concurrent firewall sessions
- Dual multicore CPU architecture: Intel x86 processor for control plane and Cavium NPU for data plane acceleration
- 32 GB DDR4 system memory and 200 GB SSD storage for logging and system operations
- 12x Gigabit Ethernet (10/100/1000) copper ports and 4x 10 Gigabit SFP+ fiber uplinks
- One network module bay for scalable port expansion (supports FPR-NM-8X10G and other modules)
- Dual redundant hot-swappable AC power supplies for power resilience
- 3+1 redundant hot-swappable fan tray for cooling redundancy
- NEBS-ready design for carrier-grade and service provider deployments
- Support for Active/Standby and Active/Active high-availability configurations
- Advanced security features: NAT, ACLs, application inspection, VPN (site-to-site and remote access)
- Management via CLI, ASDM (ASA Device Manager), and SNMP
- Front-to-rear airflow for efficient data center cooling
- 1U rackmount form factor with 4-post EIA-310-D rack compatibility

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 1U rackmount (1.73 x 16.90 x 19.76 in)
- Ports: 12x 10/100/1000Base-T (RJ-45), 4x 10G SFP+
- Expansion: 1x Network Module bay (supports FPR-NM-8X10G and other modules)
- Maximum Interfaces: Up to 24 total Ethernet ports (with optional network module)
- Firewall Throughput: 10 Gbps (stateful inspection), 5 Gbps (multiprotocol)
- Concurrent Connections: 2 million
- New Connections/Second: 40,000
- IPsec VPN Throughput: 1 Gbps
- Memory: 32 GB DDR4 RAM
- Storage: 200 GB SSD
- Processor: Dual multicore CPU architecture (Intel x86 + Cavium NPU)
- Management: 1x Gigabit Ethernet management port, console (RJ-45), USB 2.0
- Power: Dual redundant hot-swappable AC power supplies (100-240 VAC, 50-60 Hz)
- Cooling: 3+1 redundant hot-swappable fan tray
- Operating Mode: ASA software (Cisco Secure Firewall ASA)

FAQs

Q: What software does the FPR2130-ASA-K9 run?
A: This model ships with Cisco ASA (Adaptive Security Appliance) software pre-installed. The Firepower 2100 platform can run either ASA or Firepower Threat Defense (FTD) software, but the -ASA-K9 SKU is configured for ASA deployment.

Q: Can I expand the port capacity on the Firepower 2130?
A: Yes. The FPR2130-ASA-K9 includes one network module (NetMod) bay that supports modules like the FPR-NM-8X10G, which adds 8x 10 Gigabit SFP+ ports. This allows you to scale up to 24 total Ethernet interfaces.

Q: What deployment scenarios is the Firepower 2130 suited for?
A: The FPR2130-ASA-K9 is ideal for enterprise Internet edge deployments, data center segmentation, high-availability firewall pairs, and medium to large campus environments requiring stateful firewall, VPN termination, and scalable threat protection.

Q: Does this firewall support high availability and clustering?
A: Yes. The Firepower 2130 running ASA supports Active/Standby and Active/Active failover configurations for high availability. Clustering is available with Firepower Threat Defense software but requires the FTD image.

Q: Is the Firepower 2130 NEBS-compliant?
A: Yes. The FPR2130 platform is designed to meet Network Equipment Building Standards (NEBS) requirements, making it suitable for carrier-grade and service provider environments that demand rigorous environmental and reliability specifications.
