Cisco

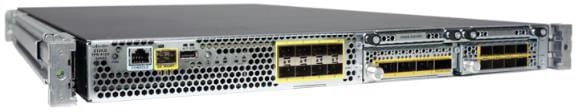

Cisco FPR-4145-CHAS-K9 | Firepower 4145 Firewall, 2x NetMod Bays, No PSU

SKU:FPR-4145-CHAS-K9

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Firepower 4145 is the highest-throughput model in the Cisco Firepower 4100 Series, built for internet edge, data centre and service provider deployments that need next-generation firewall and IPS performance in a 1RU footprint. This SKU is the chassis only, with two network module (NetMod) bays and no power supplies, and it runs either Cisco Secure Firewall ASA or Threat Defense (FTD) software.

On the chassis you get 8 x 10GbE SFP+ ports plus a 1GbE SFP management port. With AVC, firewall throughput is 53 Gbps (1024B), FW + AVC + IPS is 53 Gbps and NGIPS is 55 Gbps. IPSec VPN throughput reaches 24 Gbps, with up to 30 million concurrent sessions, 365K new connections per second and 20,000 VPN peers. Storage is 800 GB, cooling comes from 6 hot-swappable fans, and up to 16 appliances can be clustered. The two NetMod bays accept 1/10/40/100G modules, including fail-to-wire options.

The chassis is supplied without a software licence. FTD feature licences such as Threat, Malware Defense and URL Filtering are subscriptions bought separately. Power supplies are hot-swappable with 1+1 redundancy, in 1100W AC or 950W DC versions.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Runs Cisco Secure Firewall ASA or Threat Defense (FTD) software
- Two network module slots for 1/10/40/100G expansion, including fail-to-wire modules
- Clustering of up to 16 appliances with active/active or active/standby high availability
- Hot-swappable fans and hot-swappable redundant power supplies when fitted
- Flow-offloading with RESTful API orchestration of security services
- Management through Cisco Security Manager, Cisco Defense Orchestrator or local ASDM
- Cisco Trust Anchor Technologies and Talos security intelligence

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Form factor: 1RU rack-mount chassis
- Network module bays: 2 x NetMod
- Fixed ports: 8 x 10GbE SFP+ (Supervisor)
- Management port: 1 x 1GbE SFP
- Console port: 1 x RJ-45 serial
- USB: 1 x USB 2.0
- Firewall throughput: 80 Gbps
- Firewall + AVC throughput: 53 Gbps (1024B)
- FW + AVC + IPS throughput: 53 Gbps (1024B)
- NGIPS throughput: 55 Gbps (1024B)
- TLS hardware decryption: 10 Gbps
- IPSec VPN throughput: 24 Gbps (1024B TCP with Fastpath)
- Maximum concurrent sessions with AVC: 30 million
- Maximum new connections per second with AVC: 365K
- Maximum VPN peers: 20,000
- Storage: 800 GB
- Clustering: up to 16 appliances
- High availability: active/active or active/standby
- Fans: 6 hot-swappable
- Power supply options: 1100W AC or 950W DC, 1+1 redundancy
- AC input: 100 to 240V AC, 50 to 60 Hz, 13A maximum
- Dimensions (H x W x D): 4.4 x 42.9 x 75.4 cm
- Weight: 14.24 kg with no PSUs, network modules or fans
- Operating temperature: 0 to 40 C
- Operating humidity: 5 to 95% non-condensing
- Noise: 63 dBA typical, 74 dBA maximum

FAQs

Q: Does this chassis include a software licence?
A: No. This is a chassis-only SKU with no software licence bundled. FTD feature licences such as Threat, Malware Defense and URL Filtering are subscriptions bought separately, so confirm the licence SKUs needed for your chosen software image.

Q: What power supplies does it use?
A: The Firepower 4100 Series uses hot-swappable power supplies in 1+1 redundancy. Options are 1100W AC (100 to 240V AC, 13A maximum input) and 950W DC (-40 to -60VDC).

Q: Which network modules fit the two NetMod bays?
A: Supported modules include 2 x 100G QSFP28, 8 x 10G SFP+, 8 x 1G fibre or 4 x 1G copper SFP, and 4 x 40G QSFP+. Fail-to-wire modules are also available in 1G copper, 1G SX, 10G SR, 10G LR, 40G SR and 100G variants. The correct firmware package version is needed for each module.

Q: Which firewall software does it run?
A: It runs either Cisco Secure Firewall ASA or Cisco Secure Firewall Threat Defense (FTD) software.

Q: Can multiple units be clustered?
A: Yes. Up to 16 appliances can be clustered, and active/active or active/standby high availability is supported.
