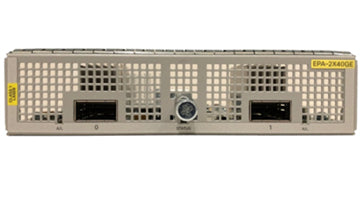

• Cisco EPA-2X40GE ASR 1000 Ethernet Port Adapter with 2x40GbE QSFP+ ports
1 1

Cisco

Cisco EPA-2X40GE | ASR 1000 2x40GE Native QSFP Port Adapter

EPA-2X40GE

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This two-port native QSFP 40 Gigabit Ethernet port adapter (EPA) is built for the Cisco ASR 1000 Series and installs in the ASR1000-MIP100 modular interface processor, delivering 80G of aggregate port capacity. Both 40GE ports are usable without additional licences and no breakout cable is required, making it a straightforward option for high-capacity WAN aggregation and edge routing deployments. It supports Ethernet features, Synchronous Ethernet and MACsec, with feature parity to equivalent SPA plus SIP combinations.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Both 40GE ports enabled without additional licences
- Native QSFP ports, no breakout cable required
- Supports Ethernet features, Synchronous Ethernet and MACsec
- Modular EPA design with feature parity to SPA plus SIP combinations
- Hot-swappable modular design

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 2 x 40 Gigabit Ethernet ports (native QSFP)
- 80G aggregate port capacity
- Ethernet technology: 40GBase-X, optical fibre media
- Installs in ASR1000-MIP100 modular interface processor
- Also listed as an interface module for ASR 1001-HX and 1002-HX
- Supported from Cisco IOS XE 16.6.2
- CLI hardware string: EPA-2X40GE

FAQs

Q: Which ASR 1000 chassis is this port adapter compatible with?
A: It is listed as compatible with the ASR 1002-HX, 1006-X, 1009-X and 1013 chassis, and installs in the ASR1000-MIP100 modular interface processor. It is also listed as an interface module for the ASR 1001-HX and 1002-HX.

Q: Is an additional licence needed to enable the second 40GE port?
A: No. Both 40GE ports on the EPA-2X40GE are usable without additional licences, unlike the EPA-1X40GE where the second port is licensed.

Q: What minimum software release is required?
A: Support begins from Cisco IOS XE 16.6.2.

Q: Does this adapter use breakout cables?
A: No. It provides two native QSFP 40 Gigabit Ethernet ports and does not require a breakout cable.

Q: Does it support MACsec and Synchronous Ethernet?
A: Yes. The adapter supports Ethernet features, Synchronous Ethernet and MACsec.
