Cisco

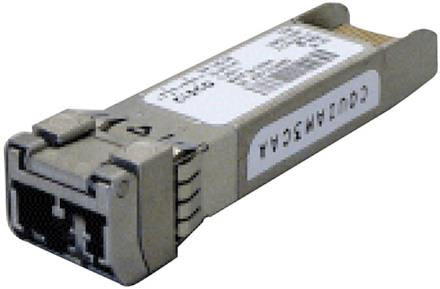

Cisco DWDM-SFP10G-60-61-40K | 10G SFP+ | 10GBASE-ER DWDM | 1560.61nm | 40km SMF | LC duplex | DOM

SKU:DWDM-SFP10G-60-61-40K

Regular price POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

Fixed-wavelength C-band DWDM 10GBASE-ER SFP+ for metro and inter-building backhaul. Provides 40 km reach on OS2 single-mode fiber with DOM/DDM and hot-swap SFP+ convenience. Ideal for passive DWDM MUX/DEMUX applications.

Features

- High-density DWDM transport in the C-band
- Up to 40 km reach without inline amplification
- Full DOM/DDM for proactive monitoring
- EML/APD design for long-distance performance
- LC duplex interface; MSA SFP+ form factor
- Broad platform interoperability

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Is this module compatible with passive DWDM MUX/DEMUX units?
A: Yes, it is engineered for passive DWDM systems using the specified ITU grid wavelength.

Q: Do I need single-mode fiber?
A: Yes. Use OS2 (G.652) single-mode fiber with LC duplex connectors.

Q: Does it support digital monitoring?
A: Yes, DOM/DDM is supported for Tx/Rx power, temperature, voltage, and bias.

Q: Can it be used for shorter runs?
A: Yes, but very short links may require attenuators to prevent receiver overload.

Q: Is the wavelength tunable?
A: No, it is a fixed-wavelength DWDM optic at 1560.61 nm.

Technical Specifications

- Form factor: SFP+
- Line rate: 10.3125 Gb/s (10GbE)
- Base standard: IEEE 802.3ae 10GBASE-ER
- DWDM wavelength: 1560.61 nm (C-band, ITU-T G.694.1 grid)
- Channel spacing: 100 GHz (fixed)
- Optical reach: up to 40 km over OS2/G.652 SMF
- Connector: LC duplex
- Digital diagnostics: DOM/DDM supported
- Tx laser: EML; Rx: APD receiver
- Typical link budget: ~15 dB
- Power consumption: < 1.8 W
- Hot-swappable; SFF-8431/8432 MSA compliant
- Operating temperature: 0°C to +70°C; RoHS compliant
