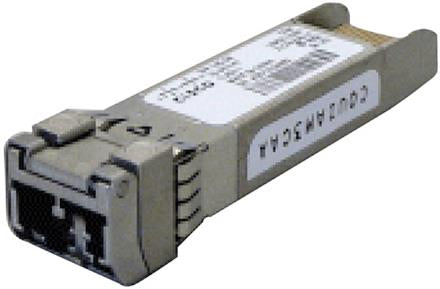

Cisco DWDM-SFP10G-35-82-40K | 10G SFP+ DWDM 10GBASE-ER | 1535.82nm | 40km SMF | Duplex LC | DOM | ITU-T G.694.1 100GHz

SKU:DWDM-SFP10G-35-82-40K

Regular price POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

High-density 10G DWDM SFP+ transceiver for long-reach single-mode links. Fixed 1535.82nm wavelength on the ITU-T 100 GHz grid, 40 km reach, duplex LC, and digital diagnostics (DOM) for precise monitoring. Ideal for multiplexed metro/long-haul transport over C‑band DWDM systems.

Features

- 10G DWDM long-reach connectivity up to 40 km
- Fixed 1535.82 nm wavelength for precise channel planning
- Standards-based SFP+ with DOM for real-time optical monitoring
- Optimized for C-band DWDM MUX/DEMUX deployments
- Hot-swappable for simplified maintenance and upgrades
- Duplex LC interface on single-mode fiber
- MSA-compliant for broad platform interoperability

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Is this a tunable DWDM SFP+?
A: No. It is a fixed-wavelength DWDM module at 1535.82 nm on the ITU-T 100 GHz grid.

Q: What distance can it support?
A: Up to 40 km over single-mode fiber under standard link budget conditions. Actual reach depends on fiber loss, splices, connectors, and DWDM components.

Q: Does it support DOM/DDM?
A: Yes. Digital Optical Monitoring is supported for parameters like temperature, voltage, TX power, and RX power.

Q: Which connector and fiber type are required?
A: Duplex LC connector with single-mode fiber (SMF).

Q: Can I use it without a DWDM MUX/DEMUX?
A: It can operate point-to-point at its fixed wavelength, but it is designed for DWDM systems using MUX/DEMUX or OADMs.

Q: Is it hot-swappable?
A: Yes. It can be inserted or removed without powering down the host device.

Q: Do I need an attenuator for short links?
A: For very short spans, an optical attenuator may be required to prevent receiver saturation. Follow your platform’s optical power guidelines.

Technical Specifications

- Form factor: SFP+
- Data rate: 10 Gb/s
- Optic type: DWDM 10GBASE-ER (long reach)
- Wavelength: 1535.82 nm (fixed λ)
- DWDM grid: ITU-T G.694.1, 100 GHz spacing
- Optical reach: up to 40 km (SMF, standard link budget conditions)
- Fiber type: Single-mode (G.652/ITU-T compliant)
- Connector: Duplex LC
- Digital diagnostics: DOM/DDM (SFF-8472)
- Hot-swappable: Yes
- Compliance: SFF-8431, SFF-8472, RoHS
- Application: C-band DWDM MUX/DEMUX and OADM systems
- Power class: 10G ER optics (use attenuator on very short links if required)
- Operating mode: Full duplex
