Cisco

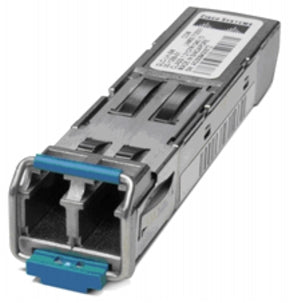

Cisco DWDM-SFP-3425 | 1GbE SFP | 1000BASE-DWDM | 1534.25 nm (ITU Ch 43) | 80 km | LC SMF

SKU:DWDM-SFP-3425

Regular price POA
POA
POA
Sale Sold out
Shipping calculated at checkout.

Description

Gigabit DWDM SFP tuned to 1534.25 nm (ITU Channel 43) for high-density C-band transport over single-mode fiber. Supports up to 80 km with appropriate DWDM link budget, LC duplex interface, hot-swap operation, and DOM for real-time diagnostics—ideal for metro, backbone, and wavelength services with 100 GHz mux/demux systems.

Features

- ITU-tuned 1534.25 nm (Ch 43) for dense wavelength multiplexing
- Long-reach up to 80 km over SMF
- Hot-swappable SFP form factor for rapid service turn-up
- LC duplex interface simplifies patching and integration
- DOM support enables precise optical performance monitoring
- Cooled DFB laser for stable wavelength accuracy on 100 GHz grids

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Do I need a DWDM mux/demux to use this module?
A: Yes. It is designed for ITU 100 GHz DWDM systems and should be paired with a matching 100 GHz mux/demux.

Q: Must both ends use the same channel?
A: Yes. Use the identical ITU channel/wavelength at both ends for a working DWDM link.

Q: Will it work in any SFP port?
A: Use a 1G SFP port that supports optical transceivers and DOM; it does not operate at 10G.

Q: What fiber and connector are required?
A: Single-mode fiber (G.652 or equivalent) with LC duplex connectors.

Q: How far can it reach?
A: Up to 80 km under typical conditions. Actual distance depends on total link loss, splices, connectors, and any amplifiers/attenuators.

Q: Does it support digital diagnostics?
A: Yes, it supports SFF-8472 DOM/DDM for monitoring TX/RX power, temperature, and more.

Technical Specifications

- Data rate: 1.25 Gbps (Gigabit Ethernet)
- Optical standard: 1000BASE-DWDM, ITU-T G.694.1 C-band, 100 GHz spacing
- Wavelength: 1534.25 nm (ITU Channel 43), ~195.40 THz
- Form factor: SFP (hot-swappable)
- Connector: LC duplex
- Fiber type: Single-mode (SMF, G.652)
- Max reach: Up to 80 km (distance depends on span loss and DWDM link design)
- Digital diagnostics: SFF-8472 DOM/DDM supported
- Optics: Cooled DFB laser transmitter, PIN/TIA receiver
- Compliance: RoHS; hot-pluggable in 1G SFP ports
