Cisco

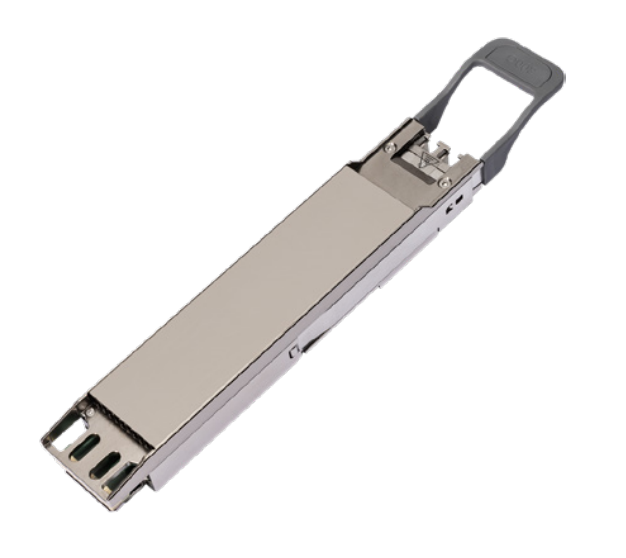

Cisco DP08SFP8-ZRB-A2 | 800G ZR+ OpenROADM OSFP C-Band Coherent Transceiver

SKU:DP08SFP8-ZRB-A2

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This Cisco 800G ZR+ OpenROADM transceiver is an OSFP digital coherent optics (DCO) module for the C-band. It is built for metro and regional data centre interconnects, service provider DWDM links and AI scale-across applications in hyperscale networks, and it extends Cisco Routed Optical Networking to 800G.

The module carries 800G, 600G or 400G line rates using OpenROADM interoperable probabilistic constellation shaping, OIF 800G 16QAM, OpenZR+ or a proprietary enhanced mode. Client formats cover 100GE, 200GE, 400GE and 800GE. The tunable laser spans 1528.58 nm to 1567.34 nm with transmit power above +1 dBm, and reach exceeds 1000 km on amplified DWDM links or up to 80 km unamplified, depending on fibre and line-system design. It uses a duplex LC connector over single-mode fibre, operates at case temperatures from -5 to 75 C and is OSFP power class 8.

It is supported on Cisco switches and routers with OSFP ports and is compatible with 800G-capable routers, switches and transponders with OSFP ports. It interoperates with OpenROADM PCS in 800G ZR+ mode and with OpenZR+ in 400G mode, and it suits any DWDM photonic network built on a compatible amplified line system.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- OSFP form factor for Cisco and third-party 800G-capable routers, switches and transponders with OSFP ports
- Extended reach of over 1000 km on amplified links and up to 80 km unamplified
- OpenROADM interoperable probabilistic constellation shaping (PCS) mode for high-performance interoperability
- High transmit power and OSNR, compatible with any DWDM photonic network
- Supports 100GE, 200GE, 400GE and 800GE client formats
- Low power consumption, reducing power and cooling needs
- Extends Cisco Routed Optical Networking to 800G links
- Suited to metro and regional DWDM, service provider interconnects and AI scale-across in hyperscale networks

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Form factor: OSFP, mechanically compliant with the OSFP MSA
- Power class: OSFP power class 8
- Module type: 800G ZR+ OpenROADM digital coherent optics (DCO), C-band
- Wavelength: tunable, 1528.58 nm to 1567.34 nm
- Reach (amplified DWDM): over 1000 km
- Reach (unamplified): up to 80 km
- Reach note: actual reach depends on fibre and connector loss and amplified line-system design
- Transmit power: greater than +1 dBm (C-band)
- Client formats: 100GE, 200GE, 400GE, 800GE
- 800G modulation: OpenROADM interoperable PCS, OIF 800G 16QAM, proprietary enhanced mode
- 600G modulation: OpenROADM interoperable PCS, proprietary enhanced mode
- 400G modulation: OpenROADM 400G QPSK, OpenZR+, proprietary enhanced mode
- FOIC mode: 800G ZR+ only on transponders
- Connector: duplex LC
- Fibre type: single-mode fibre (SMF)
- Case temperature: -5 to 75 C (41 to 167 F)

FAQs

Q: What host ports does this module need?
A: It needs an OSFP port on a host that supports 800G coherent optics. It is supported on Cisco switches and routers with OSFP ports, and is compatible with third-party 800G-capable routers, switches and transponders with OSFP ports.

Q: How much power does it draw?
A: It is an OSFP power class 8 module and is powered from the host OSFP port. Check that the host port can supply and cool a class 8 module.

Q: What reach can I expect?
A: Reach is over 1000 km on amplified DWDM links in 800G ZR+ mode and up to 80 km unamplified. Actual reach depends on fibre and connector loss and the design of the amplified line system.

Q: Which line rates and client formats does it support?
A: The line side runs at 800G, 600G or 400G using OpenROADM PCS, OIF 800G 16QAM, OpenZR+ or a proprietary enhanced mode. Client formats are 100GE, 200GE, 400GE and 800GE.

Q: Does it work with OpenROADM and OpenZR+ equipment?
A: Yes. It interoperates with OpenROADM PCS in 800G ZR+ mode and with OpenZR+ in 400G mode.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
