Cisco

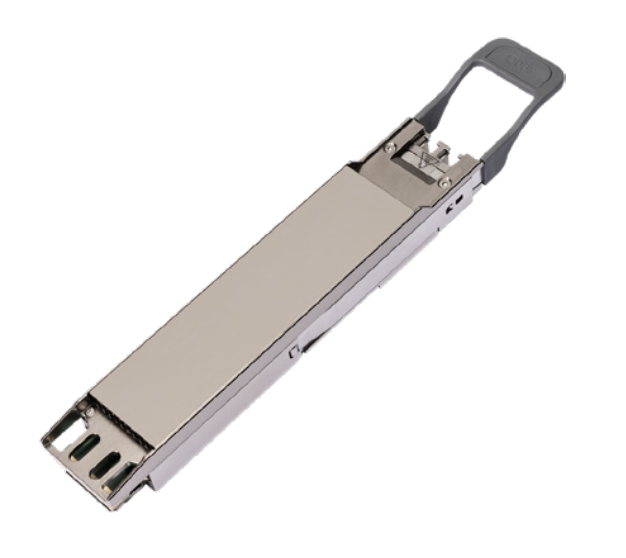

Cisco DP08SFP8-ZRA-A2 | 800G ZR OIF OSFP Coherent Transceiver, C-Band, 120km

SKU:DP08SFP8-ZRA-A2

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This Cisco 800G ZR coherent transceiver is an OSFP digital coherent optics module built to the OIF 800ZR Implementation Agreement for C-band. It is aimed at single-span data centre interconnect (DCI) and AI scale-across applications, carrying 800G traffic directly from an OSFP router or switch port over amplified DWDM links.

The module runs 800G using 16QAM modulation and supports 100GE, 200GE, 400GE and 800GE client formats. It reaches up to 120 km over amplified DWDM and up to 75 km unamplified, with actual reach depending on fibre and connector loss and the line-system design. The tunable C-band laser covers 1528.58 nm to 1567.34 nm with transmit power above +1 dBm. It connects over duplex LC on single-mode fibre, and an OpenZR+ interoperable 400G QPSK mode is also supported. As the C-band OIF 800ZR variant, it is distinct from the ZR+ OpenROADM and L-band siblings.

The OSFP form factor is mechanically compliant with the OSFP MSA and uses power class 8, so the host port must support class 8 power. It works with OSFP ports on Cisco and third-party 800G-capable routers, switches and transponders, and extends Cisco Routed Optical Networking to 800G links.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Enables 800G over a single wavelength directly from a router or switch port
- OIF 800ZR Implementation Agreement compliant, suited to single-span DCI
- Low power consumption helps reduce power and cooling costs
- High transmit power and OSNR for compatibility with DWDM photonic networks
- OpenZR+ interoperable 400G QPSK mode
- Extends Cisco Routed Optical Networking to 800G links
- Works with 800G-capable routers, switches and transponders with OSFP ports

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Form factor: OSFP (OSFP MSA compliant), power class 8
- Standard: OIF 800ZR, 800G 16QAM
- Additional mode: 400G OpenZR+ interoperable QPSK
- Reach (amplified DWDM): up to 120 km
- Reach (unamplified): up to 75 km with 800ZR
- Actual reach: depends on fibre and connector loss and the amplified line-system design
- Band: C-band, tunable 1528.58 nm to 1567.34 nm
- Transmit power: >+1 dBm (C-band)
- Client formats: 100GE/200GE/400GE/800GE
- Connector: duplex LC
- Fibre: single-mode (SMF)
- Case temperature: -5 to 75 C (41 to 167 F)

FAQs

Q: What power class does this OSFP module use?
A: It is an OSFP power class 8 module. The host port must support class 8 power, so check your platform before ordering.

Q: What reach can I expect from the 800G ZR mode?
A: It reaches up to 120 km over amplified DWDM and up to 75 km unamplified. Actual reach depends on fibre and connector loss and the design of the amplified line system.

Q: Which platforms does it work with?
A: It fits OSFP ports on Cisco and third-party 800G-capable routers, switches and transponders. Confirm your platform in the Cisco Transceiver Modules Compatibility Matrix and the Cisco Optics Product Information Matrix.

Q: How does this C-band module differ from the ZR+ OpenROADM and L-band versions?
A: This SKU is the C-band OIF 800ZR module, tunable from 1528.58 nm to 1567.34 nm. The ZR+ OpenROADM and L-band versions are separate SKUs for different standards and wavelength bands.

Q: Does it support 400G operation?
A: Yes. Alongside 800G 16QAM, it supports an OpenZR+ interoperable 400G QPSK mode.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
