Cisco

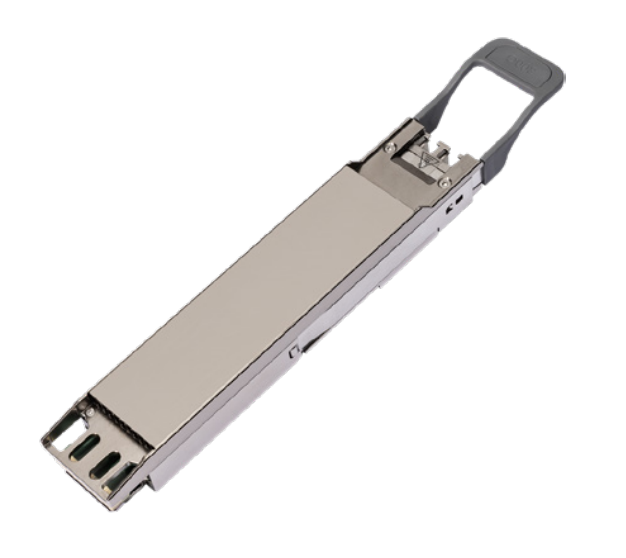

Cisco DP08SFP8-LRB-A2 | 800G ZR+ OpenROADM OSFP DCO Transceiver, L-Band

SKU:DP08SFP8-LRB-A2

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This Cisco 800G ZR+ OpenROADM OSFP digital coherent optics (DCO) transceiver is a tunable L-band module from the Cisco QSFP-DD and OSFP 800G ZR/ZR+ coherent optics family. It is built for metro and regional data centre interconnect and service provider interconnect over amplified DWDM networks, as well as AI scale-across applications in hyperscale environments, and it extends Cisco Routed Optical Networking to 800G links.

The module uses the OSFP form factor, mechanically compliant with the OSFP MSA, and operates at OSFP power class 8. It is tunable across 1570.21 nm to 1610.49 nm in the L-band, which allows operators to double the capacity of existing long-haul networks. Reach is over 1000 km on amplified DWDM links and up to 80 km unamplified, with actual distance depending on fibre and connector loss and the amplified line-system design. Client formats cover 100GE, 200GE, 400GE and 800GE, with OpenROADM interoperable PCS, OIF 800G 16QAM and proprietary enhanced modes for 800G, 600G and 400G operation. Connectivity is duplex LC over single-mode fibre, with a case temperature range of -5 to 75 C.

It is supported on Cisco switches and routers with OSFP ports and on third-party 800G-capable routers, switches and transponders with OSFP ports. Check the Cisco Transceiver Modules Compatibility Matrix for host support. High transmit power and OSNR make it compatible with any DWDM photonic network.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- OpenROADM interoperable PCS for high-performance multi-vendor interoperability
- Extended reach of over 1000 km amplified and up to 80 km unamplified
- L-band tunable operation to double existing long-haul network capacity
- High transmit power and OSNR, compatible with any DWDM photonic network
- Low power consumption for reduced power and cooling costs
- Supports 100GE, 200GE, 400GE and 800GE client formats
- Extends Cisco Routed Optical Networking to 800G links

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Form factor: OSFP, mechanically compliant with the OSFP MSA
- Power class: OSFP power class 8
- Data rate: 800G ZR+ OpenROADM interoperable PCS
- Wavelength: Tunable, 1570.21 nm to 1610.49 nm (L-band)
- Reach (amplified DWDM): Over 1000 km; actual reach depends on fibre/connector loss and/or amplified line-system design
- Reach (unamplified, 800G ZR+): Up to 80 km
- Client formats: 100GE/200GE/400GE/800GE
- FOIC mode: 800G ZR+ only on transponders
- 800G modulation: OpenROADM interoperable PCS, OIF 800G 16QAM, Proprietary enhanced mode
- 600G modulation: OpenROADM interoperable PCS, Proprietary enhanced mode
- 400G modulation: OpenROADM 400G QPSK, OpenZR+, Proprietary enhanced mode
- Connector: Duplex LC
- Fibre type: Single-mode fibre (SMF)
- Case temperature: -5 to 75 C (41 to 167 F)
- Interoperability: OpenROADM interoperable PCS

FAQs

Q: Which host devices does this transceiver work with?
A: It is supported on Cisco switches and routers with OSFP ports and on third-party 800G-capable routers, switches and transponders with OSFP ports. Check the Cisco Transceiver Modules Compatibility Matrix for your platform.

Q: What reach can I expect?
A: Reach is over 1000 km on amplified DWDM links and up to 80 km unamplified. Actual distance depends on fibre and connector loss and the amplified line-system design.

Q: Which wavelength band does it operate in?
A: It is a tunable L-band module covering 1570.21 nm to 1610.49 nm. It suits networks that use the L-band to add capacity to existing long-haul links.

Q: What power class is it?
A: It is OSFP power class 8 and is powered by the host through the OSFP port. Make sure the host port supports power class 8 modules.

Q: Does it interoperate with OpenROADM equipment?
A: Yes. It uses OpenROADM interoperable PCS, which supports multi-vendor interoperability, and it also offers OIF 800G 16QAM and proprietary enhanced modes.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
