Cisco

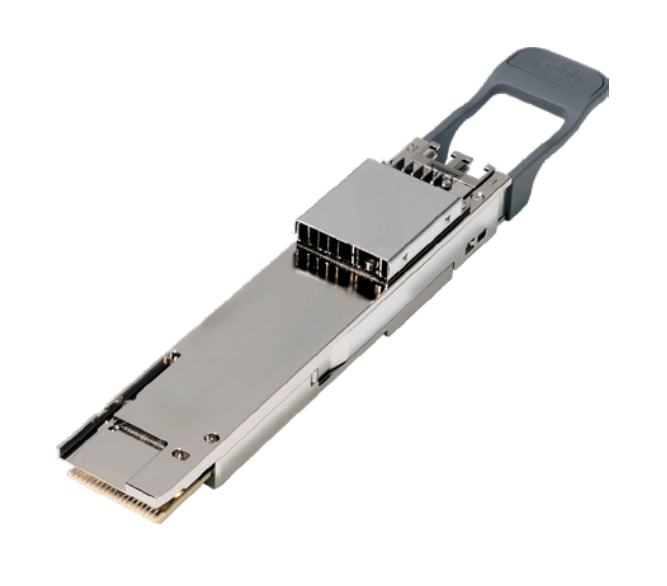

Cisco DP08QSDD-ZRB-A2 | 800G ZR+ OpenROADM QSFP-DD Coherent Transceiver, C-Band

SKU:DP08QSDD-ZRB-A2

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This Cisco 800G ZR+ OpenROADM coherent transceiver is a QSFP-DD digital coherent optics module for metro and regional data centre interconnects, service provider transport and long-haul DWDM links over existing amplified networks. It belongs to the Cisco QSFP-DD and OSFP 800G ZR/ZR+ coherent optics range and extends Cisco Routed Optical Networking to 800G links.

The module operates in the C-band with a tunable wavelength of 1528.58 nm to 1567.34 nm and a transmit power above +1 dBm. In 800G ZR+ mode it reaches over 1000 km on amplified DWDM links and up to 80 km unamplified, with actual reach depending on fibre and connector loss or the amplified line-system design. It uses a duplex LC connector over single-mode fibre, accepts 100GE, 200GE, 400GE and 800GE client formats, and meets QSFP-DD type 2B power requirements with a case temperature range of -5 to 75 C.

The 800G mode supports OpenROADM interoperable probabilistic constellation shaping, OIF 800G 16QAM and a proprietary enhanced mode. The 400G mode interoperates with OpenZR+ and OpenROADM QPSK. It suits Cisco and third-party 800G-capable routers, switches and transponders with QSFP-DD ports.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- QSFP-DD form factor for Cisco and third-party 800G-capable routers, switches and transponders with QSFP-DD ports
- Extended reach of over 1000 km on amplified links with 800G ZR+
- OpenROADM interoperable probabilistic constellation shaping mode for 800G ZR+
- High transmit power and OSNR, suited to any DWDM photonic network
- Low power consumption helps reduce power and cooling needs
- Multiple data rates: 400G, 600G and 800G line rates
- Expands Cisco Routed Optical Networking to 800G links
- Suited to metro and regional data centre and service provider interconnects

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Part number: DP08QSDD-ZRB-A2
- Form factor: QSFP-DD (mechanically compliant with the QSFP-DD MSA)
- Standard: 800G ZR+ OpenROADM, C-band
- Reach (amplified DWDM, 800G ZR+): over 1000 km, depending on fibre/connector loss and line-system design
- Reach (unamplified, 800G ZR+): up to 80 km
- Transmit power: >+1 dBm, C-band
- Wavelength: tunable, 1528.58 nm to 1567.34 nm
- Client formats: 100GE/200GE/400GE/800GE
- FOIC mode in 800G ZR+: transponders only
- 800G modulation: OpenROADM interoperable PCS, OIF 800G 16QAM, proprietary enhanced mode
- 600G modulation: OpenROADM interoperable PCS, proprietary enhanced mode
- 400G modulation: OpenROADM 400G QPSK, OpenZR+, proprietary enhanced mode
- Connector: LC (duplex)
- Fibre: single-mode (SMF)
- Power: QSFP-DD type 2B compliant
- Case temperature: -5 to 75 C (41 to 167 F)

FAQs

Q: What reach does this transceiver support?
A: In 800G ZR+ mode it reaches over 1000 km on amplified DWDM links and up to 80 km unamplified. Actual reach depends on fibre and connector loss and the amplified line-system design.

Q: Which client formats does it support?
A: It supports 100GE, 200GE, 400GE and 800GE client formats. FOIC mode in 800G ZR+ is available on transponders only.

Q: What does it work with?
A: It is supported on Cisco switches and routers, as listed in the Cisco Transceiver Modules Compatibility Matrix. It also works in third-party 800G-capable routers, switches and transponders with QSFP-DD ports.

Q: Does it interoperate with OpenROADM and OpenZR+ equipment?
A: Yes. The 800G mode uses OpenROADM interoperable PCS, and the 400G mode interoperates with OpenZR+ and OpenROADM QPSK.

Q: What wavelength band and fibre type does it use?
A: It operates in the C-band with a tunable wavelength of 1528.58 nm to 1567.34 nm. It connects over single-mode fibre with a duplex LC connector.

Q: What power class does the module meet?
A: It is compliant with QSFP-DD type 2B power requirements, so the host port must support this power class.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
