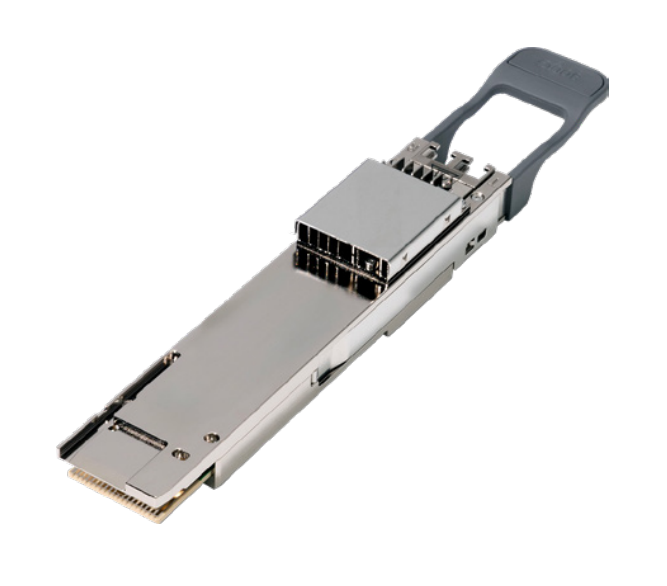

Cisco DP08QSDD-ZRA-A2 | 800G ZR OIF QSFP-DD Transceiver, C-Band, 120km

SKU:DP08QSDD-ZRA-A2

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 800G ZR OIF QSFP-DD transceiver is a tunable C-band coherent optics module from the Cisco QSFP-DD and OSFP 800G ZR/ZR+ family. It is built for single-span, high-capacity data centre interconnect, including AI scale-across applications in hyperscale networks, and extends Cisco Routed Optical Networking to 800G links.

The module carries 800G using OIF 800ZR 16QAM modulation over duplex LC single-mode fibre. Reach is up to 120 km over amplified DWDM links and up to 75 km unamplified, with actual distance depending on fibre and connector loss and the amplified line-system design. The laser tunes across 1528.58 nm to 1567.34 nm with transmit power above +1 dBm. Client formats cover 100GE, 200GE, 400GE and 800GE, and the module also supports 400G OpenZR+ with QPSK. It is QSFP-DD Type 2B power class compliant and operates at a case temperature of -5 to 75 C.

It is supported on Cisco switches and routers with QSFP-DD ports, as well as third-party 800G-capable routers, switches and transponders with QSFP-DD ports. It interoperates with OIF 800ZR and OpenZR+ (400G QPSK) modules.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- QSFP-DD form factor for Cisco and third-party 800G-capable routers, switches and transponders with QSFP-DD ports
- Extended reach for single-span DCI, up to 75 km unamplified and up to 120 km amplified
- Interoperable with OIF 800ZR and OpenZR+ (400G QPSK) implementations
- High transmit power and OSNR, compatible with any DWDM photonic network
- Low power consumption for reduced power and cooling costs
- Extends Cisco Routed Optical Networking to 800G links

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Part number: DP08QSDD-ZRA-A2
- Product description: 800G ZR OIF QSFP-DD DCO - C-Band
- Form factor: QSFP-DD, compliant with QSFP-DD MSA
- Power class: QSFP-DD Type 2B compliant
- Data rate and modulation: 800G OIF 800ZR 16QAM
- Data rate and modulation: 400G OpenZR+ (QPSK)
- Interoperability: OIF 800ZR, OpenZR+ interoperable 400G QPSK
- Reach (amplified): up to 120 km amplified DWDM
- Reach (unamplified): up to 75 km
- Transmit power: greater than +1 dBm, C-band
- Wavelength: tunable, 1528.58 nm to 1567.34 nm (C-band)
- Client formats: 100GE/200GE/400GE/800GE
- Connector: LC (duplex)
- Fibre: single-mode fibre (SMF)
- Case temperature: -5 to 75 C (41 to 167 F)

FAQs

Q: What platforms does this module work with?
A: It is supported on Cisco switches and routers with QSFP-DD ports and on third-party 800G-capable routers, switches and transponders with QSFP-DD ports. Check the Cisco Transceiver Modules Compatibility Matrix for specific platforms.

Q: Will it interoperate with other 800ZR optics?
A: Yes. It is interoperable with OIF 800ZR and OpenZR+ (400G QPSK) modules, so it can link to other standards-based coherent optics.

Q: What distance can it cover?
A: Up to 120 km over amplified DWDM links and up to 75 km unamplified. Actual reach depends on fibre and connector loss and the design of the amplified line system.

Q: How does it differ from the ZRB and LRB variants?
A: This SKU is the 800G OIF 800ZR C-band module. DP08QSDD-ZRB-A2 is the 800G ZR+ C-band version, and DP08QSDD-LRB-A2 is the 800G ZR+ L-band version.

Q: What client rates does it support?
A: It supports 100GE, 200GE, 400GE and 800GE client formats.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
