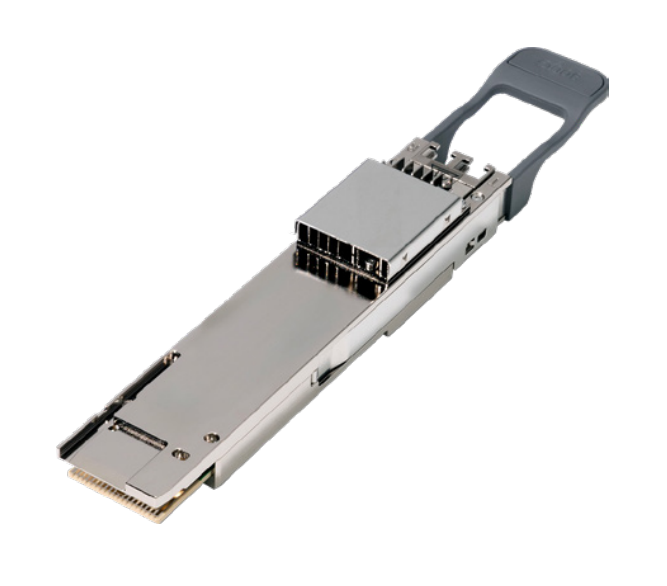

Cisco DP08QSDD-LRB-A2 | 800G ZR+ OpenROADM L-Band QSFP-DD Coherent Transceiver

SKU:DP08QSDD-LRB-A2

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 800G ZR+ OpenROADM QSFP-DD coherent transceiver is a digital coherent optics module from the Cisco QSFP-DD and OSFP 800G ZR/ZR+ family. It carries 800G traffic over amplified DWDM links using the L-band, and suits metro or regional data centre interconnect, service provider interconnect and long-haul L-band capacity expansion. It also extends Cisco Routed Optical Networking to 800G links.

The module is tunable across the L-band from 1570.21 nm to 1610.49 nm and uses a duplex LC single-mode fibre connector. It supports 800G, 600G and 400G line rates, with 100GE, 200GE, 400GE and 800GE client formats. OpenROADM interoperable probabilistic constellation shaping delivers reach beyond 1000 km on amplified links, and up to 80 km unamplified. Actual reach depends on fibre and connector loss and on the amplified line-system design.

It is mechanically compliant with the QSFP-DD MSA and meets the QSFP-DD type 2B power class. It is compatible with Cisco routers and switches listed in the Cisco Transceiver Modules Compatibility Matrix, as well as 800G-capable routers, switches and transponders with QSFP-DD ports.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- QSFP-DD form factor for 800G-capable routers, switches and transponders with QSFP-DD ports
- Extended reach beyond 1000 km on amplified links with 800G ZR+
- OpenROADM interoperable probabilistic constellation shaping for multi-vendor DWDM networks
- Tunable across the L-band to expand capacity on long-haul DWDM networks
- Low power consumption to help reduce power and cooling costs
- High transmit power and OSNR, compatible with any DWDM photonic network
- Extends Cisco Routed Optical Networking to 800G links

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Part number: DP08QSDD-LRB-A2
- Product description: 800G ZR+ OpenROADM QSFP-DD DCO, L-Band
- Form factor: QSFP-DD, mechanically compliant with the QSFP-DD MSA
- Power class: QSFP-DD type 2B compliant
- Reach, 800G ZR+: over 1000 km amplified DWDM
- Reach, unamplified 800G ZR+: up to 80 km
- Client formats: 100GE/200GE/400GE/800GE
- Data rates: 800G / 600G / 400G
- 800G modulation: OpenROADM interoperable PCS, OIF 800G 16QAM, proprietary enhanced mode
- 600G modulation: OpenROADM interoperable PCS, proprietary enhanced mode
- 400G modulation: OpenROADM 400G QPSK, OpenZR+, proprietary enhanced mode
- Wavelength: tunable L-band, 1570.21 nm to 1610.49 nm
- Connector: duplex LC
- Fibre type: single-mode fibre (SMF)
- Case temperature: -5 to 75 C (41 to 167 F)

FAQs

Q: What reach does this transceiver support?
A: It supports over 1000 km on amplified DWDM links and up to 80 km unamplified with 800G ZR+. Actual reach depends on fibre and connector loss and on the line-system design.

Q: Which wavelength band does it operate in?
A: It is an L-band module, tunable from 1570.21 nm to 1610.49 nm. It is intended for L-band DWDM line systems.

Q: What data rates and client formats does it support?
A: It supports 800G, 600G and 400G line rates. Client formats are 100GE, 200GE, 400GE and 800GE.

Q: What host ports and fibre does it need?
A: It fits QSFP-DD ports on 800G-capable routers, switches and transponders. It uses duplex LC single-mode fibre and meets the QSFP-DD type 2B power class.

Q: Is it interoperable with OpenROADM networks?
A: Yes. It supports OpenROADM interoperable PCS modes at 800G and 600G, and OpenROADM QPSK at 400G.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
