Cisco DP04QSDD-ULH-A1 | 400G QSFP-DD Coherent Transceiver, C-band, 3000km
SKU:DP04QSDD-ULH-A1
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

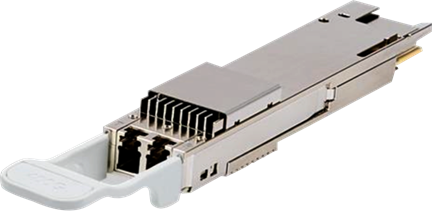

The DP04QSDD-ULH-A1 is a 400G digital coherent QSFP-DD transceiver from the Cisco Routed Optical Networking range. It is built for regional and ultra-long-haul amplified DWDM links, extending pluggable coherent optics into applications that were previously served by high-power Layer 1 transponders without sacrificing spectral efficiency.
This SKU is the C-band version, tunable across 1528.58 nm to 1567.34 nm, with a nominal reach of over 3000 km using 400G 118 Gbaud QPSK. It supports 400G QPSK, 16-QAM and PCS-QAM modulation, delivers Tx power above +1 dBm, and offers multiple 400G application select codes for channel spacing from 75 GHz to 150 GHz. It connects over single-mode fibre with a duplex LC connector and operates across a case temperature range of -5 C to 75 C.
The module is OpenROADM 7.0 and OpenZR+ MSA compliant and is managed through CMIS 5.3 and C-CMIS 1.3. It is QSFP-DD Type 2A compliant and works within the 24 W power envelope of 400G-capable Cisco routers, switches and transponders. The L-band version is a separate SKU, DP04QSDD-LLH-A1.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- QSFP-DD form factor for 400G-capable Cisco routers, switches and transponders
- Extended reach of over 3000 km across amplified DWDM links
- OpenROADM-compliant 400G QPSK with OpenZR+ interoperability
- Multiple 400G application select codes for 75 GHz to 150 GHz channel spacing
- High Tx power and OSNR for use on DWDM photonic networks
- Low power consumption that helps reduce power and cooling costs
- Backward-compatible application select code with 400G QSFP-DD ZR+ High-TX power in OpenZR+ MSA mode
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: QSFP-DD Type 2A, 76-contact card-edge interface
- Data rate: 400G
- Modulation: 400G QPSK, 16-QAM and PCS-QAM
- Band: C-band, tunable 1528.58 nm to 1567.34 nm
- Nominal reach: over 3000 km (400G 118 Gbaud QPSK)
- Reach at 112.5 GHz spacing: 2,800 km
- Reach at 100 GHz spacing: 2,400 km
- Reach at 87.5 GHz spacing: 2,000 km
- Reach at 75 GHz spacing: 1,500 km
- Tx power: above +1 dBm
- Baud rate: up to 118 Gbaud
- Channel spacing: 75 GHz to 150 GHz
- Client formats: 100G, 200G, 400E and FOIC (FOIC on transponders only)
- Connector: duplex LC
- Fibre: single-mode (SMF)
- Case temperature: -5 C to 75 C
- Power: within the 24 W envelope of 400G-capable Cisco routers
- Standards: OpenROADM 7.0, OpenZR+ MSA
- Management: CMIS 5.3 and C-CMIS 1.3
FAQs
Q: Is this the C-band or L-band module?
A: This SKU is the C-band module, tunable from 1528.58 nm to 1567.34 nm. The L-band equivalent is a separate SKU, DP04QSDD-LLH-A1.
Q: What reach does it support?
A: Nominal reach is over 3000 km with 400G 118 Gbaud QPSK. Reach at narrower channel spacing ranges from 1,500 km at 75 GHz to 2,800 km at 112.5 GHz.
Q: What power does the module need from the host?
A: It is QSFP-DD Type 2A compliant and works within the 24 W power envelope supported on existing 400G-capable Cisco routers.
Q: What can it interoperate with?
A: It is OpenROADM 7.0 and OpenZR+ MSA compliant, so it interoperates with modules that support those standards. FOIC client mode is available only on transponders.
Q: Which host platforms support it?
A: It is designed for 400G-capable Cisco routers, switches and transponders, as well as compatible third-party hosts. Check the Cisco Product Information Matrix for the supported platform list.
