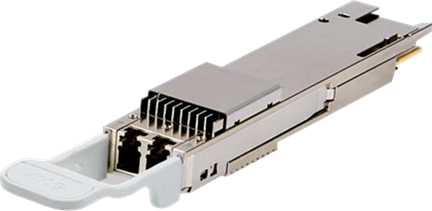

Cisco DP04QSDD-HK9 | 400G QSFP-DD ZR+ Transceiver, +1 dBm, OTN AES-256

SKU:DP04QSDD-HK9

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 400G digital coherent QSFP-DD transceiver is built for operators running DCI, metro aggregation, wireless backhaul and campus interconnect links, including point-to-point dark fibre and Routed Optical Networking over brownfield WDM systems. It is a C-band tunable module with a duplex LC interface and OpenZR+ operation.

The multirate OTN/Ethernet variant carries 400GE client traffic at full 400G bandwidth using 16-QAM, with 300G, 200G and 100G modes also available. A built-in mini-EDFA lifts maximum transmit power to +1 dBm, tunable down to -9 dBm, which is about 10 dB above the standard OIF 400ZR limit. That headroom suits high-insertion-loss add/drop structures and extends reach on dark-fibre spans. An embedded tunable filter gives a narrow optical spectrum compatible with filtered or unfiltered add/drop structures. OFEC forward error correction is used, and the module is built on 7 nm DSP and silicon photonics.

For OTN payloads the module provides wire-speed AES-256 encryption in GCM, GMAC (authentication only) or CTR (encryption only) modes, with key exchange over the GCC channel. It plugs into routers and switches with 400G QSFP-DD ports, and the host platform and software release should be checked against the Cisco Transceiver Module Compatibility Matrix.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Transmit power of +1 dBm, about 10 dB above the standard OIF 400ZR limit, for high-insertion-loss add/drop structures
- Built-in mini-EDFA optical amplifier within a QSFP-DD form factor
- Embedded tunable filter for a narrow optical spectrum compatible with filtered or unfiltered add/drop structures
- Multirate Ethernet and OTN support with Layer 1 authentication and AES-256 encryption of the OPU[Cn,4] payload
- Longer reach on point-to-point dark-fibre links thanks to the higher transmit power
- Routed Optical Networking support over legacy WDM systems (60 Gbaud signal only)
- Selectable 100G to 400G modes using 16-QAM, 8-QAM and QPSK

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Form factor: QSFP-DD, mechanically compliant with QSFP-DD Type 2A
- Electrical interface: 76-contact card-edge
- Media interface: duplex LC connector, 1550 nm fibre carrying a DP-mQAM coherent signal
- Operating band: C-band, tunable
- Line rate: up to 400G per wavelength (16-QAM), with 300G, 200G and 100G modes
- Client support: multirate Ethernet and OTN, 400GE client
- Maximum transmit power: +1 dBm, tunable down to -9 dBm
- Maximum receive power: 13 dBm
- FEC: OFEC
- OTN framing: ODUFlex, OTUCn/FlexO-x with OFEC
- OTN security: AES-256 GCM, GMAC or CTR at wire speed
- 400G 16-QAM symbol rate: 60,138,546,798 baud (Ethernet), 63,139,467,923 baud (OTN)
- 400G 16-QAM receive OSNR sensitivity: 22.5 dB (Ethernet), 23 dB (OTN)
- 400G 16-QAM receive sensitivity: -12 dBm (Ethernet), -14 dBm (OTN)
- 400G 16-QAM chromatic dispersion robustness: ±13,000 ps/nm (Ethernet), ±12,000 ps/nm (OTN) by default
- 100G QPSK receive sensitivity: -20 dBm, chromatic dispersion robustness ±80,000 ps/nm (Ethernet) by default
- Operation: OpenZR+

FAQs

Q: Does this module need a software licence?
A: No software licence is documented for DP04QSDD-HK9, which provides the full 400G bandwidth. The related DP04QSDD-LK9 is the pay-as-you-grow variant limited to 100G, and E-100G-TRK-ZRPL is the right-to-use licence that enables 100G bandwidth on that module.

Q: What is the transmit power and why does it matter?
A: Maximum transmit power is +1 dBm, tunable down to -9 dBm. This is about 10 dB above the standard OIF 400ZR limit, which makes the module suitable for high-insertion-loss add/drop structures in existing WDM systems and extends reach on dark-fibre links.

Q: What does the HK9 multirate variant add?
A: It supports both Ethernet and OTN client signals and adds wire-speed AES-256 authentication and encryption of the OTN payload using GCM, GMAC or CTR modes, with key exchange over the GCC channel.

Q: Which hosts does it work with?
A: It plugs into routers and switches with 400G QSFP-DD ports as part of Cisco Routed Optical Networking. Check the Cisco Transceiver Module Compatibility Matrix for the supported host platforms and software releases.

Q: Can it run over existing WDM systems?
A: Yes. It interoperates with legacy WDM add/drop systems when running at 60 Gbaud, and the embedded tunable filter gives a narrow spectrum that suits filtered or unfiltered add/drop structures.
