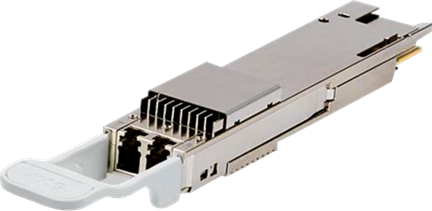

Cisco DP04QSDD-HE0-A1 | 400G QSFP-DD ZR+ Transceiver, High Tx Power, Ethernet

SKU:DP04QSDD-HE0-A1

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 400G digital coherent QSFP-DD ZR+ transceiver carries 400GE client traffic over a duplex LC, C-band tunable DWDM line. It is the Ethernet, High Tx Power (+1 dBm), -A1 revision, and is aimed at routers and switches with 400G ports, as well as brownfield WDM systems with high insertion loss. Typical uses include data centre interconnect, metro access and aggregation, wireless backhaul, campus interconnect and dark-fibre point-to-point links.

An integrated mini-EDFA inside the QSFP-DD package lifts maximum transmit power to +1 dBm, tunable down to -9 dBm. The module supports multiple modulation modes from 100G to 400G per wavelength: 16-QAM at 400G, 8-QAM at 300G, QPSK, 8-QAM or 16-QAM at 200G, and QPSK at 100G, all with oFEC. An embedded tunable filter produces a narrow optical spectrum, which suits both filtered and unfiltered add/drop structures. It connects over single-mode fibre with a duplex LC (UPC) connector and has a case temperature range of 15 to 78 C with DOM support.

This variant is listed for use with the Cisco 8201, 8202, 8201-32FH, 8202-32FH-M, 8201-24H8FH and 8212-48FH-M routers, and with line cards including the 8800-LC-36FH and 88-LC0-36FH-M. It interoperates with DP04QSDD-E36-A1, DP04QSDD-ER1 and DP04QSDD-HE0 over oFEC.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- +1 dBm high transmit power suits the majority of deployed brownfield WDM add/drop schemes
- Integrated mini-EDFA optical amplifier in a QSFP-DD package, built on a 7 nm DSP and silicon photonics
- Embedded tunable filter gives a narrow optical spectrum for filtered or unfiltered add/drop structures
- Extra optical power extends reach on point-to-point dark-fibre links
- Selectable modulation modes from 100G to 400G per wavelength
- Suited to Routed Optical Networking on routers and switches with 400G ports

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Data rate: 400 Gbps
- Form factor: QSFP-DD, compliant to QSFP-DD Type 2A with 76-contact card-edge interface
- Client interface: 400GE Ethernet
- Line interface: digital coherent DWDM, C-band tunable (1528-1568 nm)
- Connector: duplex LC (UPC), single-mode fibre
- Maximum transmit power: +1 dBm, tunable down to -9 dBm
- FEC: oFEC in all modes
- Modulation: 16-QAM (400G), 8-QAM (300G), QPSK / 8-QAM / 16-QAM (200G), QPSK (100G)
- Rx OSNR sensitivity, 16-QAM 400G: 22.5 dB
- Rx OSNR sensitivity, 8-QAM 300G: 19.5 dB
- Rx OSNR sensitivity, QPSK 100G: 11.5 dB
- Rx sensitivity, 400G 16-QAM: -12 dBm
- Maximum Rx power: 13 dBm
- Chromatic dispersion robustness, 400G 16-QAM: +/-13,000 ps/nm default, configurable up to +/-52,000 ps/nm
- Chromatic dispersion robustness, 100G QPSK: +/-80,000 ps/nm default, configurable up to +/-160,000 ps/nm
- Case temperature: 15 to 78 C
- Digital optical monitoring (DOM): supported

FAQs

Q: Does this module need a licence?
A: No licence is described for the Ethernet variant. Cisco's pay-as-you-grow 100G bandwidth variant is a separate part number (DP01QSDD-LK9) and does not apply to this SKU.

Q: Which Cisco platforms is it listed for?
A: It is listed for the Cisco 8201, 8202, 8201-32FH, 8202-32FH-M, 8201-24H8FH and 8212-48FH-M routers. It is also listed for the 8800-LC-36FH, 88-LC0-36FH-M, 88-LC0-36FH, 88-LC0-34H14FH, 88-LC1-36EH and 88-LC1-12TH24FH-E line cards.

Q: Which other modules does it interoperate with?
A: Using oFEC, it interoperates with DP04QSDD-E36-A1, DP04QSDD-ER1 and DP04QSDD-HE0.

Q: How does it differ from standard OIF-MSA 400ZR optics?
A: This High Tx Power version transmits up to +1 dBm, whereas OIF-MSA optics are limited to -10 dBm. The higher power suits brownfield WDM systems with high insertion loss.

Q: What fibre and connector does it use?
A: It uses duplex single-mode fibre with an LC (UPC) connector on the C-band DWDM line side.
