Cisco DP04QSDD-E36-A1 | 400G QSFP-DD Coherent Transceiver, 400ZR+ OpenZR+
SKU:DP04QSDD-E36-A1
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

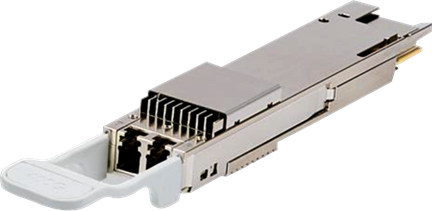

The 400G QSFP-DD ZR/ZR+ low-power coherent optics module is a pluggable digital coherent optic (DCO) running the 400ZR+ mode with OpenZR+ MSA interoperability. It is built for metro and regional data centre interconnect, service provider links across ROADM infrastructure, and AI scale-across applications, and suits Cisco Routed Optical Networking designs.
The module carries 100GE, 200GE or 400GE client traffic over single-mode fibre with a duplex LC connector. It is C-band tunable from 1528.58 nm to 1567.34 nm, with a transmit power above -10 dBm. Reach extends up to 45 km unamplified and over 1000 km on amplified DWDM links, depending on fibre and connector loss and line-system design. The low-power design is QSFP-DD type 2B compliant, which helps limit power and cooling load in high-density switch and router platforms.
It is supported on Cisco switches and routers with QSFP-DD ports, and the Cisco Optics Interoperability Matrix lists it as interoperable with the DP04QSDD-HE0 module in interop mode with oFEC. Platform support is detailed in the Cisco Transceiver Modules Compatibility Matrix.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Low power consumption to reduce power and cooling costs in high-density switch and router platforms
- QSFP-DD form factor for 400GE routers, switches and transponders with QSFP-DD ports
- OpenZR+ MSA interoperability for multi-vendor deployments
- Extended reach of up to 45 km unamplified and over 1000 km amplified with 400ZR+
- Flexible 100GE, 200GE and 400GE client formats
- Suited to Cisco Routed Optical Networking, metro and regional DWDM and AI scale-across applications
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: QSFP-DD (mechanically compliant with QSFP-DD MSA)
- Module type: 400G coherent DCO, 400ZR+ / OpenZR+, low power
- Wavelength: C-band tunable, 1528.58 nm to 1567.34 nm
- Connector: LC (duplex)
- Fibre: Single-mode fibre (SMF)
- Client formats: 100GE / 200GE / 400GE
- Modulation, 400GE: 16-QAM
- Modulation, 300GE: 8-QAM
- Modulation, 200GE: 16-QAM / 8-QAM / QPSK
- Modulation, 100GE: QPSK
- Reach, amplified: over 1000 km amplified DWDM (depends on fibre/connector loss and line-system design)
- Reach, unamplified: up to 45 km
- Transmit power: > -10 dBm
- Case temperature: -5 to 75 C (23 to 167 F)
- Power: QSFP-DD type 2B compliant
- Interoperability: OpenZR+ MSA
FAQs
Q: Does this module need a licence or subscription?
A: No licence or subscription is required for the module. It is powered from the host router or switch port.
Q: What power does it draw?
A: It is a low-power design that is QSFP-DD type 2B compliant, and it is powered from the host port. Check your platform's per-port power budget before deploying in high-density configurations.
Q: What does it work with?
A: It is supported on Cisco switches and routers with QSFP-DD ports and interoperates with OpenZR+ MSA modules. The Cisco Optics Interoperability Matrix lists it as interoperable with the DP04QSDD-HE0 module in interop mode with oFEC.
Q: What reach can I expect?
A: The module supports up to 45 km unamplified and over 1000 km on amplified DWDM links using 400ZR+. Actual reach depends on fibre and connector loss and the line-system design.
Q: Which client rates does it support?
A: It supports 100GE, 200GE and 400GE client formats in 400ZR+ mode.
