Cisco

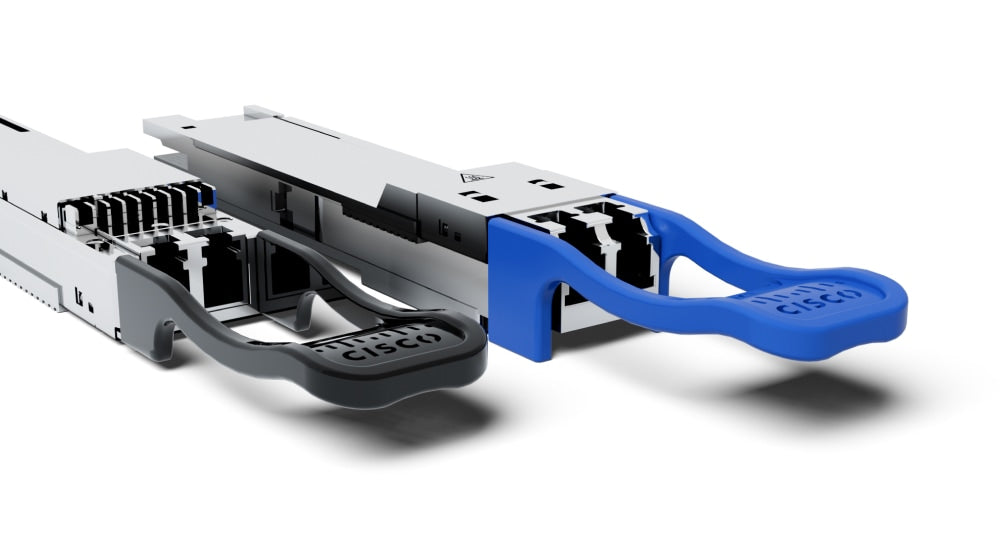

Cisco DP01QSDD-ZT5-A1 | 100G QSFP-DD | OpenZR+ coherent | C-band tunable | 1528-1568 nm | up to 120 km | LC duplex

SKU:DP01QSDD-ZT5-A1

Regular price POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

Coherent 100G QSFP-DD pluggable implementing OpenZR+ for metro and regional DWDM. Full C-band tunability enables flexible wavelength assignment across ROADM-based line systems, while coherent DSP and SD-FEC deliver robust performance on amplified spans. Designed for single-mode OS2 fiber with duplex LC connector and CMIS management for multi-vendor interoperability.

Features

- OpenZR+ coherent 100G for high spectral efficiency
- Full C-band tunability for flexible wavelength assignment
- Duplex LC interface on single-mode OS2 fiber
- SD-FEC and coherent DSP for robust performance on amplified spans
- CMIS management for broad platform interoperability
- Optimized for metro DCI and regional ROADM networks

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Is this module tunable across the full C-band?
A: Yes, it supports full C-band tuning on the ITU-T DWDM grid (typical 50 GHz spacing).

Q: What fiber and connector does it require?
A: It uses duplex LC connectors with single-mode OS2 fiber.

Q: What distances can it achieve?
A: Typical metro/regional spans up to around 120 km at 100G with amplification; actual reach depends on fiber, ROADMs, and link design.

Q: Is it interoperable with OpenZR+ line systems?
A: Yes, it implements OpenZR+ and is designed for multi-vendor interoperability when the line system supports the same profiles.

Q: Does it provide DOM/monitoring?
A: Yes, coherent modules provide extensive telemetry via CMIS for performance monitoring.

Technical Specifications

- Data rate: 100Gbps coherent
- Form factor: QSFP-DD
- Base standard: OpenZR+ (coherent)
- Wavelength: C-band tunable (approx. 1528–1568 nm, ITU-T grid)
- Tuning grid: 50 GHz
- Optical connector: Duplex LC
- Fiber type: Single-mode (OS2)
- Reach: up to ~120 km (amplified, link- and mode-dependent)
- FEC: Soft-decision FEC (coherent DSP)
- Management: CMIS-compliant
- Application: Metro DCI, regional DWDM, ROADM networks
