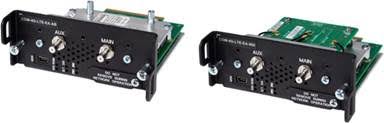

• Cisco CGM-4G-LTE-LA-AB 4G LTE module for CGR1000 chassis
1 1

Cisco

Cisco CGM-4G-LTE-LA-AB | CGR 1000 4G LTE Cat 4 Module, APJC/LATAM, MC7430

CGM-4G-LTE-LA-AB

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The CGM-4G-LTE-LA-AB is a pluggable 4G LTE Category 4 cellular WAN module for the Cisco CGR 1000 series connected grid routers, specifically the CGR 1120 and CGR 1240. It is built on the Sierra Wireless MC7430 modem and is designed for the APJC and LATAM regions, including Australia, providing public cellular backhaul for utility, substation, distribution automation and other remote industrial sites, either as the primary WAN link or as a backup.

The module delivers theoretical speeds of 150 Mbps downlink and 50 Mbps uplink and covers LTE FDD bands 1, 3, 5, 7, 8, 18, 19, 21 and 28 plus TDD bands 38, 39, 40 and 41. It falls back to UMTS/HSPA+ and TD-SCDMA where LTE is unavailable. Two QMA female RF ports (main and diversity) and dual SIM sockets support carrier redundancy, and up to two modules can be fitted per router platform. Operation is rated from -40 C to +65 C and the design meets IEC 61850-3 and IEEE 1613 for utility environments.

The module is powered by the host router chassis. Cisco IOS 15.6(3)M1 or later supports one or two cellular modules, and the MC74xx modem needs IOS 15.7(3)M or later. A service provider data plan and SIM are required for connectivity.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Pluggable 4G LTE Cat 4 cellular WAN module for CGR 1120 and CGR 1240
- Dual SIM support with auto-switch failover between primary and backup link
- Intelligent WAN sensing and automatic modem reset to restore links remotely
- Remote firmware upgrade over cellular
- Detailed 3G/4G link diagnostics and virtual diagnostic monitoring for troubleshooting
- SIM lock/unlock and maintenance end point lock/unlock
- Cellular MIB, ENTITY MIB, IF MIB, SNMP and Telnet management
- Industrial hardening to IEC 61850-3 and IEEE 1613 for utility substations

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Modem: Sierra Wireless MC7430
- LTE category: Cat 4, 150 Mbps downlink / 50 Mbps uplink (theoretical)
- LTE FDD bands: B1, B3, B5, B7, B8, B18, B19, B21, B28
- LTE TDD bands: B38, B39, B40, B41
- Fallback: UMTS/HSPA+ (B1, B5, B6, B8, B9, B19) and TD-SCDMA (B39)
- Region: APJC (including Australia) and LATAM
- SIM: Dual SIM sockets, ISO-7816-2 compliant
- RF interfaces: 2 x QMA female (M0/MAIN and M1/DIV diversity)
- Dimensions (H x W x D): 3.81 x 10.77 x 13.34 cm
- Weight: 0.5 lb
- Operating temperature: -40 to +65 C
- Non-operating temperature: -40 to +85 C
- Operating humidity: 5 to 95 percent non-condensing
- Operating altitude: 3048 m
- Shock and vibration: IEC 61850-3 Class 2
- Standards: IEC 61850-3 (2013), IEEE 1613 (2009), EN61000-6-2/4, ANSI C63.26
- Maximum modules per platform: 2
- Minimum IOS: 15.7(3)M for MC74xx modem modules

FAQs

Q: Does this module need a separate licence?
A: No separate licence is stated for the module. A service provider wireless data plan and SIM are required for connectivity.

Q: Which routers does it fit?
A: It fits the Cisco CGR 1120 and CGR 1240 connected grid routers, with up to two modules per platform.

Q: What IOS version is required?
A: Cisco IOS 15.7(3)M or later is required for modules with the MC74xx family modem. IOS 15.6(3)M1 or later supports one or two cellular modules.

Q: How is the module powered?
A: It is powered by the host CGR 1000 router chassis and has no separate power supply.

Q: Which antennas work with it?
A: Supported antennas include ANT-MP2-I-O-SS-M, ANT-4G-CM-IN-TNC, ANT-4G-OMNI-OUT-N, ANT-4G-PNL-OUT-N, ANT-4G-SR-OUT-TNC, LTE-ANTM-D and ANT-3-4G2G1-O for the CGR 1120.

Q: How does it differ from other CGR 1000 cellular modules?
A: This SKU uses the Sierra Wireless MC7430 modem with the band set for APJC and LATAM. Other regional SKUs use different modems and band sets, so it is not suited to Europe, the Middle East or North America.
