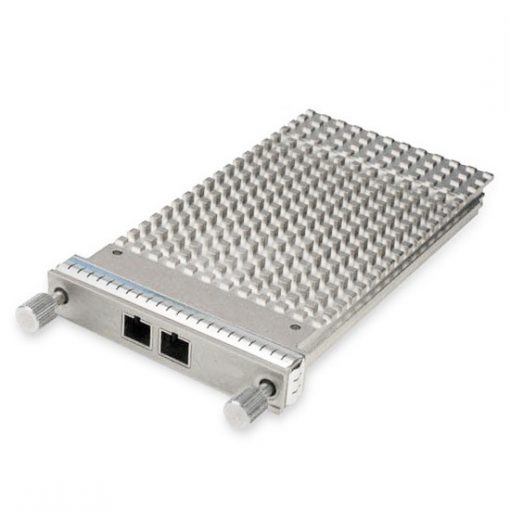

• Cisco CFP-40G-LR4 40GBASE-LR4 transceiver with silver network switch
1 1

Cisco

Cisco CFP-40G-LR4 | 40G CFP Transceiver, 40GBASE-LR4, SMF, 10km, 1310nm

CFP-40G-LR4

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This is a hot-swappable 40 Gigabit Ethernet CFP optical transceiver that carries 40GBASE-LR4 over four 1310 nm wavelengths on standard G.652 single-mode fibre, up to 10 km. It also supports the OTU3 C4S1-2D1 standard, so a single module can serve both Ethernet and OTN links.

The four lanes sit at 1271, 1291, 1311 and 1331 nm, and the multiplexing and demultiplexing of those wavelengths is handled inside the module. Transmit power for 40GBASE-LR4 is from -7 dBm to 2.3 dBm per lane, and receive power is from -13.7 dBm to 2.3 dBm per lane. Digital optical monitoring is supported, power draw is up to 8 W per port, and the module operates from 0 to 70 C. The connector is dual SC/PC, and patch cords with APC connectors are not supported.

It is intended for 40 Gigabit Ethernet links of up to 10 km in the core and distribution layers of data centre, enterprise and service provider networks. It fits 40 Gigabit Ethernet CFP ports on Cisco switches and routers, and the Cisco 40 Gigabit Ethernet Transceiver Modules Compatibility Matrix lists the exact supported platforms.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable input/output module for 40 Gigabit Ethernet CFP ports on Cisco switches and routers
- Supports both 40GBASE Ethernet and OTU3 standards in one module
- Interoperates with IEEE and OTU3 compliant interfaces
- Digital optical monitoring (DOM) support for link health visibility
- Supports the pay-as-you-populate deployment model
- Cisco quality ID lets the host identify whether the module is certified and tested by Cisco
- Four-wavelength multiplexing and demultiplexing handled inside the module

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product type: CFP transceiver module
- Standards supported: IEEE 802.3ba 40GBASE-LR4 and OTU3 C4S1-2D1 multirate
- Form factor: CFP (40 Gigabit Ethernet CFP port)
- Fibre type: Single-mode fibre (SMF), G.652
- Maximum cable distance: 10 km
- Minimum cabling distance: 2 m
- Wavelength: 1310 nm band, four lanes at 1271, 1291, 1311 and 1331 nm
- Connector: Dual SC/PC (patch cords with APC connectors not supported)
- Transmit power 40GBASE-LR4: -7 dBm to 2.3 dBm per lane
- Receive power 40GBASE-LR4: -13.7 dBm to 2.3 dBm per lane
- Transmit power OTU3 C4S1-2D1: -2.3 dBm to 2.3 dBm per lane
- Receive power OTU3 C4S1-2D1: -9.0 dBm to 2.3 dBm per lane
- Digital optical monitoring: Supported
- Power consumption: Up to 8 W per CFP port
- Dimensions (D x W x H): 144.8 x 82 x 13.6 mm (max)
- Weight: 300 g or less (typical)
- Operating temperature: 0 to 70 C (32 to 158 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Laser safety: Class 1 (21CFR-1040 LN#50 7/2001; IEC60825-1)
- Compliance standards: GR-20-CORE, GR-326-CORE, GR-1435-CORE, IEEE 802.3ba, ITU-T G.709 (OTU3)

FAQs

Q: Does this transceiver need a licence or software subscription?
A: No licence or subscription is associated with this module. It is powered by the host CFP port and needs no external supply.

Q: What fibre and connector does it use?
A: It uses standard G.652 single-mode fibre with a dual SC/PC connector, for links up to 10 km. Patch cords with APC connectors are not supported.

Q: How much power does it draw from the host port?
A: It draws up to 8 W per CFP port, supplied by the host, with no external power required.

Q: Which devices does it work with?
A: It fits 40 Gigabit Ethernet CFP ports on Cisco switches and routers. Check the Cisco 40 Gigabit Ethernet Transceiver Modules Compatibility Matrix for the exact supported platforms.

Q: Can it be used for both Ethernet and OTN links?
A: Yes. It supports both 40GBASE-LR4 and the OTU3 C4S1-2D1 standard, so it can be used in Ethernet and OTN links.
