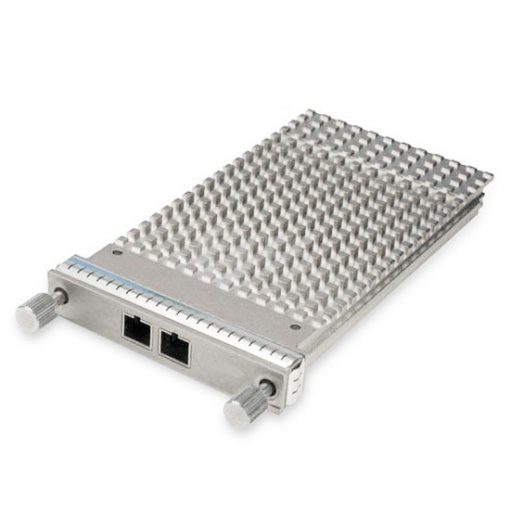

• Cisco CFP-100G-LR4 100GBASE-LR4 transceiver with silver network switch
1 1

Cisco

Cisco CFP-100G-LR4 | 100G CFP Transceiver, 100GBASE-LR4, SMF, 10km

CFP-100G-LR4

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The CFP-100G-LR4 is a hot-swappable 100 Gigabit Ethernet CFP optical transceiver from the Cisco 100GBASE CFP module range. It carries 100G over standard single-mode fibre (G.652) at distances up to 10 km, using four LAN-WDM wavelengths in the 1310 nm band. It suits data centre networking, enterprise core aggregation and service provider transport links.

The module is a 100GBASE-LR4 design that works to IEEE 802.3ba and the CFP MSA. The four lanes sit at 1295.6, 1300.1, 1304.6 and 1309.1 nm. Transmit power runs from -4.3 to 4.5 dBm per lane, and receive power from -10.6 to 4.5 dBm per lane. Digital Optical Monitoring is supported. Maximum power draw is 24 W, supplied by the host CFP port, and the operating temperature range is 0 to 70 C. The connector is dual SC/PC. Within the CFP family, this is the 10 km single-mode option, between the 100 m multimode CFP-100G-SR10 and the 40 km CFP-100G-ER4.

No licence or subscription is required by the module itself. It is supported on Cisco switches and routers with CFP ports, such as ASR 9000 100GE line cards. Use patch cords with PC or UPC connectors only, as APC connectors are not supported.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Supports 100GBASE Ethernet over single-mode fibre up to 10 km
- Hot-swappable, plugs into an Ethernet CFP port on a Cisco switch or router
- Four-lane LAN-WDM design in the 1310 nm band
- Digital Optical Monitoring (DOM) for real-time optical diagnostics
- Supports Cisco quality ID so a Cisco host can identify a certified and tested module
- Supports a pay-as-you-populate deployment model

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Standard: 100GBASE-LR4, CFP form factor
- Reach: up to 10 km on SMF (G.652)
- Minimum cabling distance: 2 m
- Wavelength: 1310 nm band (LAN-WDM), four lanes
- Lane wavelengths: 1295.6 / 1300.1 / 1304.6 / 1309.1 nm
- Connector: dual SC/PC
- Digital Optical Monitoring (DOM): Yes
- Average transmit power: -4.3 to 4.5 dBm per lane
- Average receive power: -10.6 to 4.5 dBm per lane
- Maximum power consumption: 24 W
- Dimensions (D x W x H): 144.8 x 82 x 13.6 mm
- Weight: typically less than 300 g
- Operating temperature: 0 to 70 C (32 to 158 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Laser class: 1
- Standards: IEEE 802.3ba, CFP MSA, GR-20-CORE, GR-326-CORE, RoHS-6

FAQs

Q: Does this transceiver need a licence or subscription?
A: No. The module itself requires no licence or subscription. It is powered from the host CFP port.

Q: What fibre and connectors does it use?
A: It runs over standard single-mode fibre (G.652) with dual SC/PC connectors. Use patch cords with PC or UPC connectors only, as APC connectors are not supported.

Q: Which Cisco platforms support the CFP-100G-LR4?
A: It is supported on Cisco switches and routers with CFP ports, for example ASR 9000 100GE line cards. Check the Cisco 100-Gigabit Ethernet Transceiver Modules Compatibility Matrix for your exact platform.

Q: How does it differ from the CFP-100G-ER4 and CFP-100G-SR10?
A: The CFP-100G-LR4 reaches 10 km on single-mode fibre. The CFP-100G-ER4 reaches 40 km on single-mode fibre, while the CFP-100G-SR10 is a multimode module for 100 m or 150 m links.

Q: How much power does it draw?
A: Maximum power consumption is 24 W per module, drawn from the host CFP port. Operating temperature range is 0 to 70 C.
