Cisco

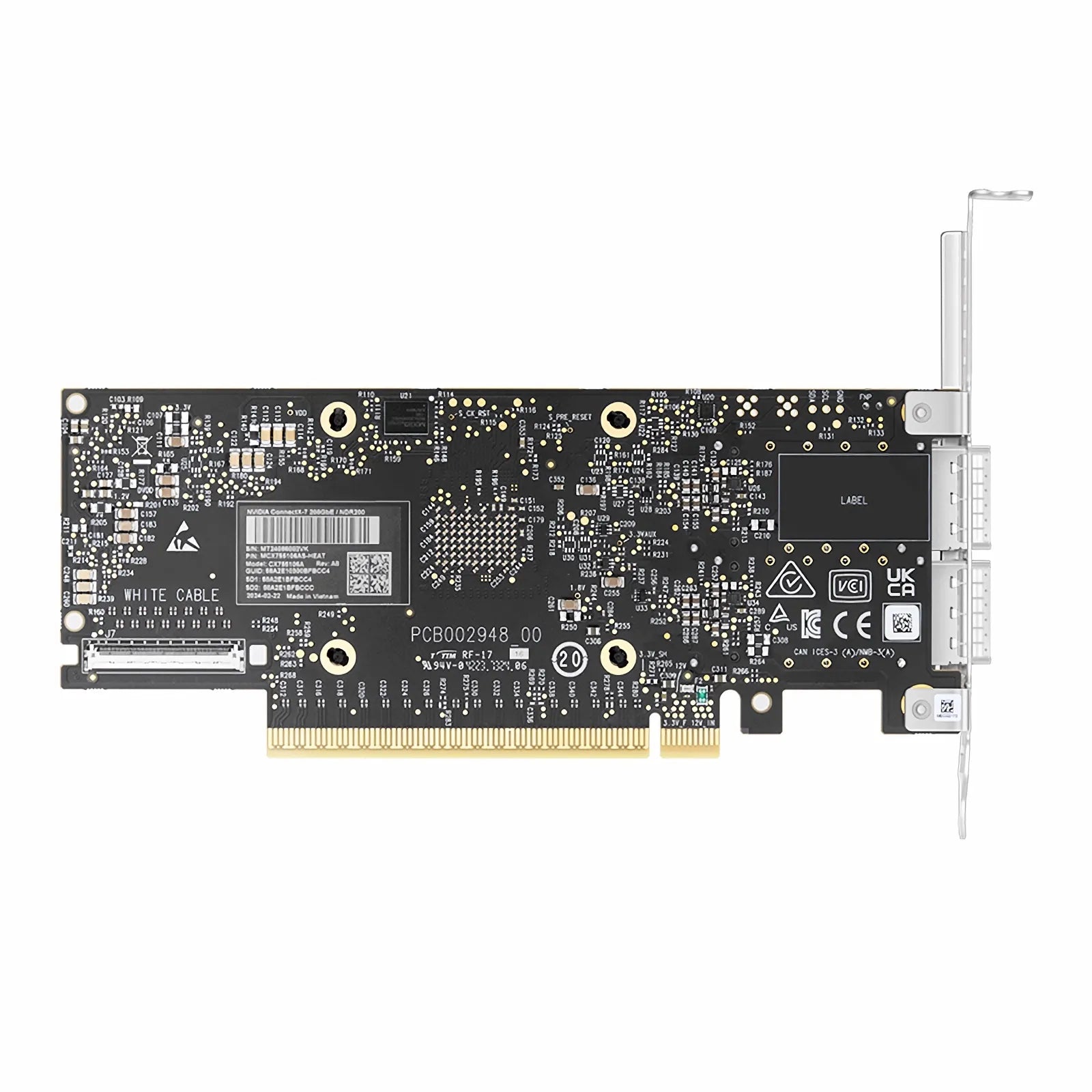

Cisco CAI-P-N7D200GFO | 2x200GbE QSFP112 | PCIe Gen5 x16 | RoCEv2, SR-IOV, GPUDirect | PTP 1588v2 | NVMe-oF/TCP offload

SKU:CAI-P-N7D200GFO

Regular price POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

Dual-port 200GbE PCIe 5.0 adapter with QSFP112 cages for ultra‑low latency networking in AI/ML, HPC, and high‑throughput storage fabrics. Supports advanced offloads including RoCEv2, GPUDirect RDMA, SR‑IOV, and NVMe‑oF/TCP for maximum efficiency and reduced CPU overhead. Backward compatible with lower link rates using supported QSFP-class optics and DAC/AOC cables.

Features

- High-throughput, low-latency connectivity for AI/ML and HPC workloads
- Future-ready QSFP112 ports with flexible speed downshifts
- Advanced offloads reduce CPU utilization and increase performance
- Accurate time synchronization with IEEE 1588v2 PTP/SyncE
- Scalable virtualization via SR-IOV and overlay offloads

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Can these QSFP112 ports use 100G optics or DACs?
A: Yes. With supported modules/cables the ports can operate at lower link rates such as 100G or 200G.

Q: Does this adapter require a PCIe Gen5 slot?
A: It is optimized for PCIe Gen5 x16 but will operate in Gen4/Gen3 slots at proportionally lower bandwidth.

Q: Is RoCEv2 supported for low-latency clustering?
A: Yes, it supports RDMA over Converged Ethernet (RoCEv2) for low‑latency, high‑throughput fabrics.

Q: Does it support GPUDirect RDMA?
A: Yes, GPUDirect RDMA is supported with compatible GPUs, drivers, and OS versions.

Q: What media types are supported?
A: QSFP-class DAC/AOC cables and QSFP112-compatible optical transceivers; actual link rates depend on the module used.

Technical Specifications

- Ports: 2x 200GbE (aggregate 400 Gb/s)
- Port form factor: QSFP112 (backward media compatibility per module support)
- Host interface: PCIe 5.0 (Gen5) x16; operates in Gen4/Gen3 at reduced bandwidth
- Key offloads: RDMA RoCEv2, GPUDirect RDMA, NVMe‑oF/TCP, SR‑IOV, RSS, checksum/TSO/LRO
- Virtualization: SR‑IOV with large VF scale; vSwitch/vRouter offloads
- Overlay offloads: VXLAN/NVGRE/Geneve
- Timing: IEEE 1588v2 PTP/SyncE support for precise time sync
- Cabling/optics: supports QSFP-class DAC, AOC, and Ethernet optics compatible with QSFP112
- Use cases: AI/ML clusters, HPC, distributed storage, ultra‑fast east‑west traffic
