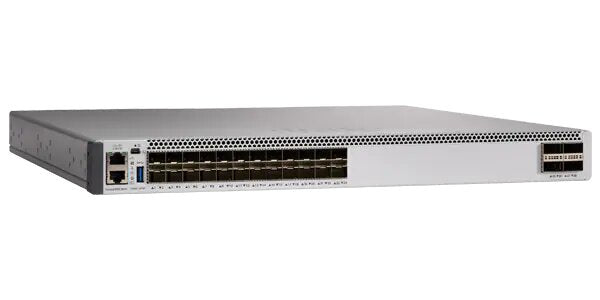

• Cisco C9500-24X-A 24-port 10G SFP+ L2/L3 switch with sleek silver design

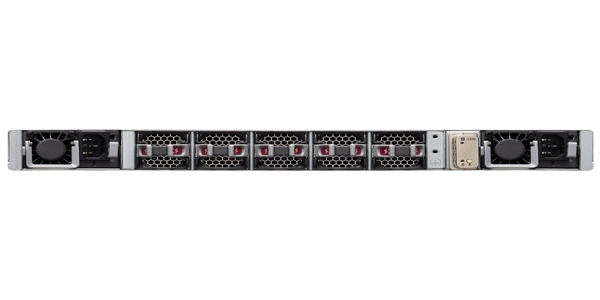

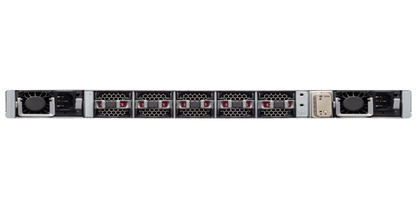

  • Silver-colored cisco catalyst 9500 24-port 10g sfp+ switch with black fans and red indicator lights on sleek metallic rack

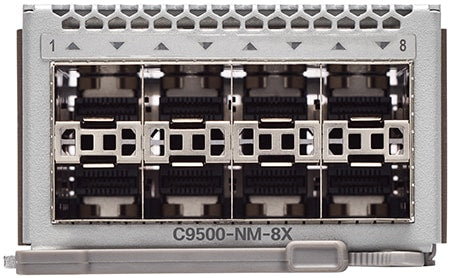

  • Silver metallic cisco catalyst 9500 network expansion card with black connectors and c9500-nm-8x model number visible
1 3

Cisco

Cisco C9500-24X-A | Catalyst 9500 24-Port 10G SFP+ Switch, Network Advantage

C9500-24X-A

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.
Condition

Description

The Cisco C9500-24X-A is a high-performance enterprise core and aggregation switch featuring 24 ports of 10G SFP+ connectivity, comprising 16 fixed ports plus an 8-port C9500-NM-8X module. Built on Cisco's UADP 2.0 ASIC and powered by Network Advantage licensing, it delivers advanced Layer 3 routing, MPLS, VRF segmentation, and StackWise Virtual for mission-critical campus and data center deployments. With 960 Gbps switching capacity and 720 Mpps forwarding rate, this 1RU switch provides scalable, secure, and programmable infrastructure for bandwidth-intensive applications.

Features

24 x 10G SFP+ ports for high-density 10 Gigabit connectivity (16 fixed + 8 modular)
- UADP 2.0 ASIC for hardware-accelerated switching and security
- Layer 3 routing with OSPF, EIGRP, BGP, MPLS, VRF-Lite, EVPN, and Segment Routing
- StackWise Virtual for active-active redundancy and simplified management
- MACsec encryption (802.1ae) on all ports for wire-rate security
- Cisco TrustSec with Security Group Tagging (SGT) for policy-based segmentation
- Trust Anchor Module for secure boot and hardware integrity verification
- Flexible NetFlow in hardware (up to 512,000 entries) for advanced analytics
- Dual power supply support (1+1 redundancy) with platinum-rated AC/DC options
- Nonstop Forwarding (NSF) and Stateful Switchover (SSO) for high availability
- Programmable with open APIs (NETCONF, RESTCONF, gNMI), Python SDK, and on-box scripting
- Model-driven telemetry for real-time monitoring and proactive operations
- Full integration with Cisco DNA Center for automated provisioning and policy management
- Energy Efficient Ethernet (IEEE 802.3az) for reduced power consumption
- Field-replaceable fans and power supplies for streamlined maintenance
- 1RU compact design optimized for rack deployment

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

Total Ports: 24 x 10G SFP+ (16 fixed + 8 modular via C9500-NM-8X)
- Switching Capacity: 960 Gbps
- Forwarding Rate: 720 Mpps
- CPU: 4-core x86, 2.4 GHz
- Memory: 16 GB DDR4
- Flash Storage: 16 GB internal
- MAC Address Table: 64,000 entries
- Routing Entries: Up to 64,000 (UADP 2.0)
- Layer 3 Protocols: OSPF, EIGRP, BGP, MPLS L3VPN, VRF-Lite, EVPN, Segment Routing
- Security: MACsec (802.1ae), Cisco TrustSec, Trust Anchor secure boot
- Stacking: StackWise Virtual (2-switch logical pairing)
- Management: CLI, Web UI, SNMP, NETCONF, RESTCONF, gNMI, Cisco DNA Center
- Power Supply: 1 x 950W AC (default), dual PSU slots (1+1 redundancy)
- Form Factor: 1RU rackmount
- Dimensions (H x W x D): 1.73 x 17.5 x 21.2 in. (4.4 x 44.5 x 56.8 cm)
- Weight: 23.6 lbs (10.7 kg) with dual PSUs
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Humidity: 5% to 90% (non-condensing)
- Minimum IOS XE: 16.5.1a or later

FAQs

Q: What is included with the C9500-24X-A by default?
A: The switch ships with 16 fixed 10G SFP+ ports, one C9500-NM-8X 8-port 10G SFP+ network module pre-installed, one 950W AC power supply, rack mount kit, console cable, and Network Advantage license. Transceivers and a second power supply are sold separately.

Q: Can I use both 1G and 10G SFP modules in the C9500-24X-A?
A: Yes, all 24 SFP+ ports support both 1G SFP and 10G SFP+ transceivers, providing flexible speed options for mixed-speed environments.

Q: What is StackWise Virtual and how many switches can be stacked?
A: StackWise Virtual allows two C9500 switches to operate as a single logical unit using high-speed Ethernet cables, providing active-active redundancy and sub-second failover. Only 2 switches can be paired in a StackWise Virtual domain.

Q: Does the C9500-24X-A support Power over Ethernet (PoE)?
A: No, the C9500-24X-A is a non-PoE model designed for high-speed 10G uplinks and aggregation. For PoE requirements, consider other Catalyst 9500 models with PoE capabilities.

Q: What advanced routing features are enabled with Network Advantage?
A: Network Advantage unlocks advanced Layer 3 capabilities including MPLS L3VPN, EVPN, VRF-Lite, Segment Routing, dynamic routing protocols (OSPF, EIGRP, BGP), enhanced QoS, and full integration with Cisco DNA Center for automation and analytics.
