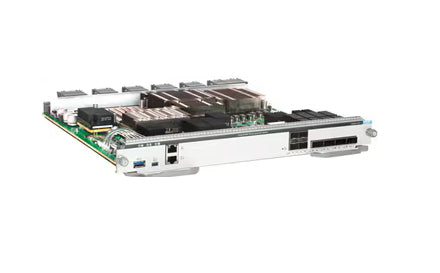

Cisco C9400X-SUP-2/2 | Catalyst 9400 Redundant Supervisor Module, 240 Gbps/Slot, 4x 25G SFP28

C9400X-SUP-2/2

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco C9400X-SUP-2/2 is a redundant supervisor module bundle for Catalyst 9400 Series modular switches, delivering 240 Gbps per line card slot and a 2.4 Tbps fabric backbone. Powered by the UADP 3.0 ASIC, it provides hardware MACsec-256 encryption, flexible SDM templates, and four onboard 25G/10G SFP28 uplinks. Ideal for campus aggregation and distribution layers requiring high availability, advanced security, and investment protection.

Features

240 Gbps per line card slot with 2.4 Tbps total fabric bandwidth for high-density aggregation
- Four onboard 25G/10G SFP28 uplinks per supervisor for simplified cabling and freed-up line card slots
- UADP 3.0 ASIC with programmable pipeline for next-generation features and investment protection
- Hardware MACsec-256 encryption on all ports for campus east-west traffic security
- 100G line-rate IPsec encryption in hardware for secure Layer 3 transport
- Flexible SDM templates for optimized resource allocation across access, aggregation, and core deployments
- Real-time telemetry via gRPC, NETCONF, RESTCONF for model-driven automation
- Nonstop Forwarding (NSF) and Stateful Switchover (SSO) for sub-second failover
- In-Service Software Upgrade (ISSU) for zero-downtime maintenance
- Cisco StackWise Virtual (SVL) support for dual-chassis virtualization
- Cisco SD-Access, VXLAN EVPN, micro-segmentation, and TrustSec integration
- Intel 2.4-GHz x86 processor with up to 960 GB SATA SSD for container-based applications

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

Product Type: Redundant Supervisor Module (2-pack)
- Compatible Chassis: Cisco Catalyst C9404R, C9407R, C9410R
- Fabric Bandwidth per Slot: 240 Gbps per line card slot
- Total System Bandwidth: Up to 2.4 Tbps
- Uplink Ports: 4x 25G/10G SFP28 (per supervisor)
- Processor: Intel 2.4-GHz x86 with up to 960 GB SATA SSD
- ASIC: Cisco Unified Access Data Plane (UADP) 3.0
- Maximum Power Consumption: 600W per active supervisor, 600W per standby supervisor
- Security Features: Hardware MACsec-256, 100G line-rate IPsec encryption, Cisco TrustSec, Secure Boot, Secure Unique Device Identifier (SUDI)
- Management: CLI, Web GUI, NETCONF, RESTCONF, gRPC telemetry, Cisco DNA Center integration
- High Availability: Nonstop Forwarding (NSF), Stateful Switchover (SSO), In-Service Software Upgrade (ISSU)
- Flexible ASIC Templates: Access, Aggregation, Core/Distribution templates for optimized resource allocation

FAQs

Q: What is the difference between C9400X-SUP-2 and C9400X-SUP-2XL?
A: The C9400X-SUP-2 supports 240 Gbps per line card slot with 4x 25G/10G SFP28 uplinks, while the C9400X-SUP-2XL supports 480 Gbps per slot with 4x 100G/40G QSFP28 uplinks plus 4x 25G/10G SFP28 uplinks, offering double the bandwidth and higher-speed connectivity.

Q: Is the C9400X-SUP-2/2 compatible with all Catalyst 9400 chassis?
A: Yes, the C9400X-SUP-2/2 is compatible with all Catalyst 9400 Series chassis including the C9404R, C9407R, and C9410R. It provides 240 Gbps per line card slot across all chassis models.

Q: Does this supervisor module support redundant configurations?
A: Yes, the C9400X-SUP-2/2 is a 2-pack specifically designed for redundant supervisor deployment, providing NSF/SSO for high availability and ISSU for non-disruptive software upgrades.

Q: What software licensing is required for the C9400X-SUP-2?
A: The C9400X-SUP-2 supports Cisco DNA Essentials and Cisco DNA Advantage licenses, which are optional and sold separately. The supervisor includes embedded support for the applicable DNA software tier selected.

Q: Can I use C9400X-SUP-2 alongside older supervisor modules in the same chassis?
A: Both supervisors in a redundant configuration must be of the same type. Mixing supervisor models is not supported. For best performance and feature parity, always deploy matching supervisor modules.
