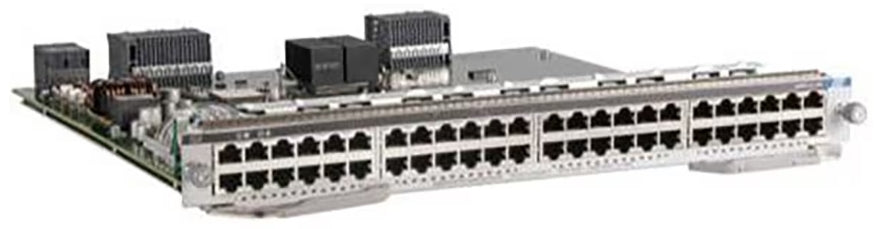

• Cisco C9400-LC-48H-UL 48-port 1G RJ-45 UPOE+ line card
1 1

Cisco

Cisco C9400-LC-48H-UL | Catalyst 9400 48-Port Gigabit UPOE+ Line Card, 90W per Port

C9400-LC-48H-UL

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco C9400-LC-48H-UL is a high-density line card for Catalyst 9400 Series modular switches, delivering 48 ports of Gigabit Ethernet with IEEE 802.3bt UPOE+ support at up to 90W per port. Ideal for powering next-generation Wi-Fi 6/6E access points, IP phones, security cameras, digital signage, and IoT devices in campus and enterprise environments. Hot-swappable design with MACsec-256 hardware security and up to 480Gbps bandwidth per slot when paired with SUP-2XL.

Features

48 non-blocking 10/100/1000 BASE-T copper ports with UPOE+ delivering up to 90W per port
- IEEE 802.3bt Type 4 UPOE+ compliance for digital building and IoT applications
- Backward compatible with Cisco UPOE (60W), PoE+ (30W), and PoE (15W) standards
- Hot-swappable and tool-less installation for minimal downtime
- MACsec-256 hardware-based encryption for Layer 2 security
- Supports Cisco StackWise Virtual for high availability
- Advanced energy management with Energy Efficient Ethernet (IEEE 802.3az)
- Jumbo frame support for enhanced throughput
- Full compatibility with all Catalyst 9400 supervisor engines
- Flexible deployment for campus access, branch office, and digital workplace applications
- Centralized power and data delivery eliminates need for separate electrical circuits
- Real-time device monitoring and remote management via Cisco DNA Center
- Supports SD-Access fabric and network automation
- Cisco IOS XE Software with programmable APIs
- Integrated RFID tags for automated asset tracking

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

48 x 10/100/1000 BASE-T (RJ-45) ports
- UPOE+ support: Up to 90W per port (IEEE 802.3bt Type 4)
- Backward compatible with PoE, PoE+, and Cisco UPOE (15W/30W/60W)
- Bandwidth: Up to 480Gbps per slot with C9400X-SUP-2XL, 240Gbps with C9400X-SUP-2, 240Gbps with C9400-SUP-1XL/1XL-Y, 80Gbps with C9400-SUP-1
- Compatible chassis: C9404R, C9407R, C9410R
- MACsec-256 hardware encryption support
- Non-blocking architecture with jumbo frame support
- Hot-swappable, tool-less installation
- Dimensions (H x W x D): 1.6 x 14.92 x 14.57 in. (4.06 x 37.90 x 37.00 cm)
- Maximum rated power consumption: 65W (line card module)
- Standards: IEEE 802.3, 802.3z, 802.3ab, 802.3bt, 802.3at, 802.3af, 802.3x, 802.3ad, 802.3ae, 802.3as, 802.3az
- Management: Cisco IOS XE Software Release 16.12.1 or later
- Energy Efficient Ethernet (EEE) support

FAQs

Q: What is the difference between C9400-LC-48H and C9400-LC-48H-UL?
A: The C9400-LC-48H-UL is the unlicensed variant, meaning it inherits licensing from the chassis supervisor engine rather than requiring a separate DNA license. Functionally, both line cards offer identical hardware specifications with 48 UPOE+ ports at 90W per port.

Q: Can this line card power Wi-Fi 6E access points?
A: Yes, the C9400-LC-48H-UL delivers up to 90W per port via UPOE+ (IEEE 802.3bt Type 4), which is ideal for powering high-performance Wi-Fi 6 and Wi-Fi 6E access points that require more than the standard 30W PoE+ can provide.

Q: Which Catalyst 9400 chassis support this line card?
A: The C9400-LC-48H-UL is compatible with all Catalyst 9400 Series chassis: C9404R (4-slot), C9407R (7-slot), and C9410R (10-slot). Maximum port density ranges from 96 ports in the C9404R to 384 ports in the C9410R.

Q: What bandwidth does this line card support?
A: Bandwidth per slot varies by supervisor engine: 480Gbps with C9400X-SUP-2XL, 240Gbps with C9400X-SUP-2 or C9400-SUP-1XL/1XL-Y, and 80Gbps with C9400-SUP-1. This ensures non-blocking performance for all 48 Gigabit ports.

Q: Does this line card support MACsec encryption?
A: Yes, the C9400-LC-48H-UL features hardware-based MACsec-256 encryption capabilities, providing Layer 2 security for data in transit across the network fabric when used with compatible supervisor engines.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
