Cisco

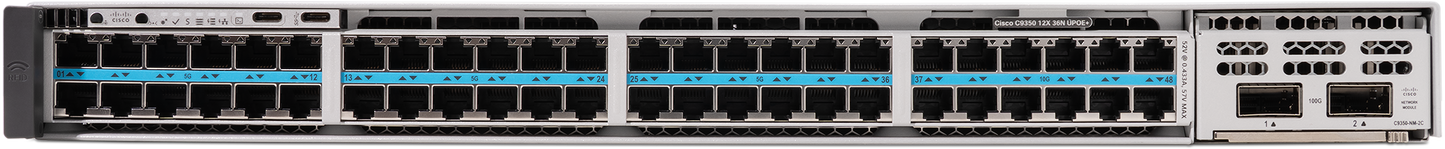

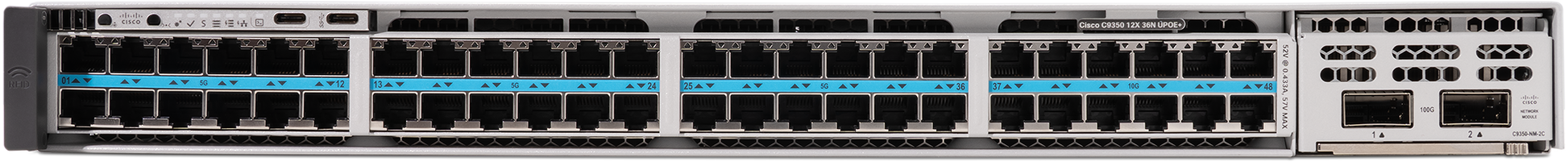

Cisco C9350-48HXN | C9350 48-Port Multigigabit Switch, 4320W UPOE+

C9350-48HXN

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco C9350-48HXN is a high-performance enterprise access switch powered by a Silicon One A100/L ASIC, delivering 1.3 Tbps throughput for demanding campus environments. It features 48 multigigabit ports with 90W UPOE+ on every port for a total PoE budget of 4320W, ideal for powering Wi-Fi 6/6E/7 access points, IP surveillance, and smart building systems. With StackWise-1.6T technology supporting up to 8 switches and modular uplinks up to 200G, it provides scalable, secure connectivity with integrated zero-trust security and post-quantum cryptography readiness.

Features

48 multigigabit Ethernet ports with up to 10 Gbps speeds on copper
- 90W UPOE+ (IEEE 802.3bt Type 4) power on all ports simultaneously
- 4320W total PoE budget for high-density power-hungry deployments
- Cisco Silicon One A100/L ASIC with 1.3 Tbps throughput and flexible pipelines
- StackWise-1.6T stacking: 1.6 Tbps bandwidth, 8-switch stacks, 448 multigigabit ports
- Modular uplinks up to 200G (2x 100G or 8x 25G via network modules)
- Layer 3 routing with OSPF, EIGRP, BGP-4, policy-based routing, and VRF-lite
- Zero-trust security with MACsec AES-GCM-256 encryption and Cisco TrustSec
- Hardware-ready for post-quantum cryptography (PQC) and Cisco Hypershield
- Fast PoE and Perpetual PoE to maintain power during switch reboots
- Hardware Flexible NetFlow (FNF) and Network-Based Application Recognition (NBAR)
- Unified management: Cisco IOS XE, Meraki Dashboard, DNA Center
- 16GB DDR5 memory, x86 CPU, and SSD support for hosting containerized applications
- Programmable with NETCONF, RESTCONF, YANG, Python, and streaming telemetry
- High-scale ACLs with 128,000 HCAM entries for security and QoS policies
- Dual redundant hot-swappable modular power supplies (Titanium/Platinum rated)
- StackPower sharing across up to 4 switches for increased power resiliency

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

48x Multigigabit Ethernet ports: 36x 10/100/1000/2.5G/5G + 12x 10/100/1000/2.5G/5G/10G (RJ45)
- 90W UPOE+ (IEEE 802.3bt Type 4) on all 48 ports simultaneously
- Total PoE budget: 4320W (with appropriate power supplies)
- Switching capacity: 2.6 Tbps; forwarding rate: 1.5 Bpps
- Single Cisco Silicon One A100/L ASIC delivering 1.3 Tbps throughput
- StackWise-1.6T: up to 1.6 Tbps stack bandwidth, 8-switch stacks, 448 multigigabit ports
- Modular uplink support: up to 200G bandwidth (via C9350-NM-2C or C9350-NM-8Y modules)
- 16GB DDR5 memory, x86 multicore CPU, local SSD support for containerized applications
- Layer 3 routing: supports up to 256,000 IPv4 routes, 64,000 MAC addresses
- MACsec AES-GCM-256 encryption, IPsec up to 100G, hardware-ready for post-quantum cryptography
- Management: Cisco IOS XE, Meraki Dashboard, CLI, NETCONF, RESTCONF, SNMP, web GUI
- Operating temperature: -5°C to 45°C; dual modular, hot-swappable power supplies

FAQs

Q: What is the port configuration of the C9350-48HXN?
A: The C9350-48HXN provides 48 multigigabit ports: 36 ports support speeds up to 5 Gbps (10/100/1000/2.5G/5G), and 12 ports support speeds up to 10 Gbps (10/100/1000/2.5G/5G/10G). All ports are RJ45 copper and support 90W UPOE+ power delivery simultaneously.

Q: How much PoE power can the C9350-48HXN deliver?
A: The C9350-48HXN supports 90W UPOE+ (IEEE 802.3bt Type 4) on all 48 ports at the same time, with a maximum PoE budget of 4320W when configured with appropriate power supplies. This makes it ideal for powering high-demand devices like Wi-Fi 7 access points, PTZ cameras, and IoT endpoints.

Q: Can the C9350-48HXN be stacked with other C9350 switches?
A: Yes, the C9350-48HXN features StackWise-1.6T technology, allowing up to 8 switches to be stacked with 1.6 Tbps of total stack bandwidth. A stack can support up to 448 multigigabit ports and 384 UPOE+ ports, managed as a single logical unit with distributed forwarding.

Q: What uplink options are available for the C9350-48HXN?
A: The C9350-48HXN has one modular network uplink slot that supports C9350-NM-2C (2x 100G QSFP28) or C9350-NM-8Y (8x 25G SFP28) modules, providing up to 200G of total uplink bandwidth. This flexible design supports seamless migration from 10G to 25G/100G core connections as traffic demands grow.

Q: Is the C9350-48HXN suitable for Wi-Fi 6E and Wi-Fi 7 deployments?
A: Yes, the C9350-48HXN is purpose-built for next-generation wireless deployments. Its multigigabit ports provide 2.5G/5G/10G backhaul speeds required by Wi-Fi 6E and Wi-Fi 7 access points, and the 90W UPOE+ per port ensures sufficient power for high-performance APs without requiring external power injectors.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
