Cisco

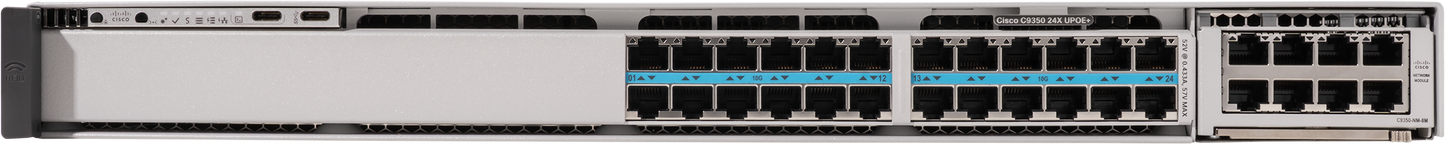

Cisco C9350-24HX | C9350 24-Port Multigigabit Switch, 2160W, 90W PoE+

C9350-24HX

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco C9350-24HX is a high-performance enterprise access switch designed for demanding network environments requiring multigigabit throughput and exceptional power delivery. Powered by Cisco Silicon One A100/L ASIC delivering 1.3 Tbps throughput, this switch provides 24 ports of 10GBASE-T multigigabit Ethernet with 90W UPOE+ per port for a total 2160W PoE budget. Ideal for connecting Wi-Fi 6/6E/7 access points, building automation systems, IP cameras, and IT/OT endpoints requiring high power and high-speed connectivity.

Features

Silicon One A100/L ASIC architecture with 1.3 Tbps throughput and 1.5 billion pps forwarding rate
- 24x 10GBASE-T multigigabit downlinks (10M/100M/1G/2.5G/5G/10G auto-negotiation)
- 90W UPOE+ (IEEE 802.3bt Type 4) on all 24 ports simultaneously
- 2160W total PoE budget with flexible power supply configurations
- Modular uplink slots supporting up to 200G bandwidth
- StackWise-1.6T stacking with up to 8 switches and 1.6 Tbps total bandwidth
- StackPower+ for pooled power redundancy across stack members
- Fast PoE for rapid endpoint power-up without waiting for OS boot
- Perpetual PoE to maintain power during switch reboot or upgrade
- Hardware-based flexible NetFlow (FNF) for traffic visibility
- Network-Based Application Recognition (NBAR) for deep packet inspection
- Post-Quantum Cryptography (PQC) algorithms and hardware-rooted trust anchor
- Hardware-ready for Cisco Live Protect inline threat protection
- Up to 256,000 IPv4 routes, 64,000 MAC addresses for large-scale deployment
- 128,000 HCAM entries for ACLs, QoS, and policy enforcement
- Layer 2 and Layer 3 switching with advanced routing protocols (OSPF, EIGRP, BGP)
- Virtual Output Queuing (VOQ) architecture for congestion management
- MACsec encryption (GCM-256) for wire-speed link security
- Up to three hot-swappable power supplies with N+1 redundancy
- Titanium and Platinum-rated PSUs for energy efficiency
- Modular hot-swappable fan trays with N+1 redundancy
- Support for USB Type-C and optional RFID tag for asset tracking
- 1U rack-mountable form factor with front-to-rear airflow

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

24x 10GBASE-T multigigabit ports supporting 10M/100M/1G/2.5G/5G/10G speeds
- 90W UPOE+ (IEEE 802.3bt Type 4) per port, 2160W total PoE budget
- Silicon One A100/L ASIC delivering 1.3 Tbps switching capacity
- Modular uplink support up to 200G bandwidth (via C9350-NM-2C, C9350-NM-8Y modules)
- StackWise-1.6T stacking technology, up to 1.6 Tbps stack bandwidth
- Supports up to 256,000 IPv4 routes, 64,000 MAC addresses, 128,000 HCAM entries
- 1U rack-mountable, 8.5 kg weight
- Up to three hot-swappable power supply slots (500W, 850W Platinum, 1600W Titanium)
- Management: Cisco IOS XE, CLI, NETCONF, RESTCONF, YANG, Python scripting
- Fast PoE and Perpetual PoE support for uninterrupted power during reboots

FAQs

Q: What types of devices is the C9350-24HX designed to power?
A: The C9350-24HX is optimized for high-power, high-bandwidth devices including Wi-Fi 6, 6E, and 7 access points, building automation systems, IP cameras with PTZ features, thermal cameras, LED lighting fixtures, large displays, and IT/OT endpoints requiring up to 90W per port.

Q: What is the difference between UPOE and UPOE+?
A: UPOE (IEEE 802.3bt Type 3) delivers up to 60W per port, while UPOE+ (IEEE 802.3bt Type 4) provides up to 90W per port. The C9350-24HX supports UPOE+ on all 24 ports, enabling power for the most demanding network devices without additional power infrastructure.

Q: Can the C9350-24HX stack with other Cisco switches?
A: Yes, the C9350-24HX supports StackWise-1.6T technology, allowing up to eight C9350 series switches to be stacked with 1.6 Tbps of total stack bandwidth. The switch uses standard StackWise cables in 0.5m, 1m, and 3m lengths. It cannot stack with Catalyst 9300 or other series.

Q: What uplink options are available for the C9350-24HX?
A: The C9350-24HX supports modular uplinks via the C9350-NM-2C (100G QSFP-DD) and C9350-NM-8Y (25G SFP28) network modules, providing up to 200G total uplink bandwidth. This flexibility allows you to customize uplink connectivity based on aggregation and core requirements.

Q: What management options does the C9350-24HX support?
A: The C9350-24HX runs Cisco IOS XE and supports flexible management including on-premises (CLI, SNMP, Catalyst Center), cloud-based (Meraki Dashboard when ordered with cloud capability), and hybrid models. It offers model-driven programmability via NETCONF, RESTCONF, YANG, streaming telemetry, and on-box Python scripting.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
