Cisco

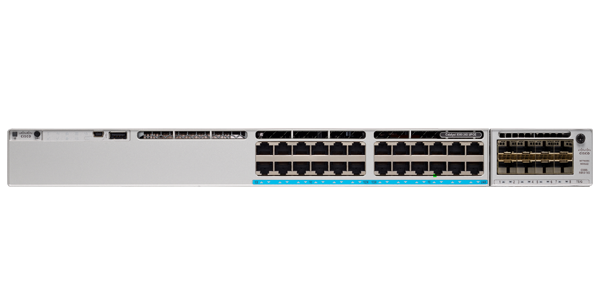

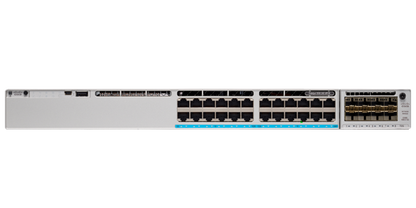

Cisco C9300-24P-A | Catalyst 9300 24-Port Gigabit PoE+ Switch, 445W, Network Advantage

C9300-24P-A

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco Catalyst C9300-24P-A is a stackable enterprise access switch featuring 24 Gigabit Ethernet PoE+ ports with 445W power budget and modular uplink expansion. Running IOS XE with Network Advantage licensing, it delivers advanced Layer 3 routing, secure segmentation, SD-Access integration, and StackWise-480 stacking for campus and branch deployments. Ideal for powering Wi-Fi 6 access points, IP phones, cameras, and IoT devices while supporting flexible uplink migration to 1G, 10G, or 40G.

Features

Network Advantage license: full Layer 3 routing (BGP, OSPF, EIGRP), VRF-Lite, Cisco TrustSec, SD-Access fabric, StackWise Virtual
- StackWise-480 stacking: up to 8 switches, 480 Gbps bandwidth, single management plane
- StackPower support: redundant power sharing across stacked switches
- Cisco UADP 2.0 ASIC: hardware-based encryption, deep packet inspection, telemetry
- MACsec encryption for securing data in transit over Ethernet links
- Flexible NetFlow (FNF): 64,000 flow entries for traffic monitoring and analytics
- Integrated Wireshark for on-device packet capture and troubleshooting
- Advanced QoS: Class-Based Weighted Fair Queuing (CBWFQ), 5120 QoS scale entries
- Security: 802.1X authentication, ACL (5120 entries), Security Group Tag (SGT) caching, SGACL
- Layer 2: VLAN, Private VLAN, STP (IEEE 802.1D/w/s), LACP (802.3ad), trunking
- Layer 3: static routing, RIP, OSPF, EIGRP, BGP, multicast (PIM-SM, IGMP, MSDP)
- High availability: Non-Stop Routing (NSR), Stateful Switchover (SSO), Redundant Power Supply (N+1)
- Programmability: RESTCONF, NETCONF, YANG models, Python scripting, on-box containers
- Cisco DNA Center integration for intent-based networking, automation, and assurance

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

24x 10/100/1000 RJ-45 PoE+ ports, up to 30W per port (IEEE 802.3at)
- Default PoE budget: 445W (expandable to 720W with secondary or upgraded power supply)
- Modular uplink slot supporting C9300-NM-4G (4x1G), C9300-NM-8X (8x10G), or C9300-NM-2Q (2x40G) network modules (sold separately)
- Switching capacity: 208 Gbps; forwarding rate: 154.76 Mpps (wire-speed, non-blocking)
- StackWise-480 technology: up to 8 switches, 480 Gbps stacking bandwidth
- Memory: 8GB DRAM, 16GB flash; 16MB packet buffer
- 32,000 MAC addresses; 32,000 IPv4 routes; 16,000 IPv6 routes
- Default power supply: PWR-C1-715WAC (715W AC)
- Dimensions: 1.73 x 17.5 x 20.7 in (1RU); fanless operation not supported (3 field-replaceable fans)
- Management: CLI, NETCONF, RESTCONF, SNMP v1/v2c/v3, RMON 1/2, Cisco DNA Center
- Certifications: IEEE 802.1D, 802.1p, 802.1Q, 802.1s, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ad (LACP), 802.3af, 802.3at, 802.3u, 802.3x

FAQs

Q: What is included with the Network Advantage license?
A: Network Advantage provides full Layer 3 routing (BGP, OSPF, EIGRP), advanced virtualization with VRF-Lite, Cisco TrustSec for secure segmentation, StackWise Virtual, SD-Access fabric integration, and full programmability via APIs. It is ideal for complex campus networks requiring policy-based automation and advanced security.

Q: Can I increase the PoE budget beyond 445W?
A: Yes. You can add a secondary power supply or upgrade the default 715W PSU to an 1100W model (PWR-C1-1100WAC) to increase the PoE budget to 720W, enabling 30W PoE+ on all 24 ports simultaneously.

Q: Do I need to purchase uplink modules separately?
A: Yes. The C9300-24P-A ships with a modular uplink slot but no pre-installed network module. You must order the appropriate module based on your uplink requirements: C9300-NM-4G for 4x1G, C9300-NM-8X for 8x10G, or C9300-NM-2Q for 2x40G.

Q: Can I stack this switch with Catalyst 9300L models?
A: No. Modular uplink models (C9300/C9300X) use StackWise-480 and are not compatible with fixed uplink models (C9300L), which use StackWise-320. You can stack C9300-24P-A with other C9300 or C9300X models only.

Q: What devices can be powered by the PoE+ ports?
A: The 24 PoE+ ports support IEEE 802.3at devices requiring up to 30W per port, including Wi-Fi 6 access points, IP phones, surveillance cameras, building automation sensors, and digital signage displays.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
