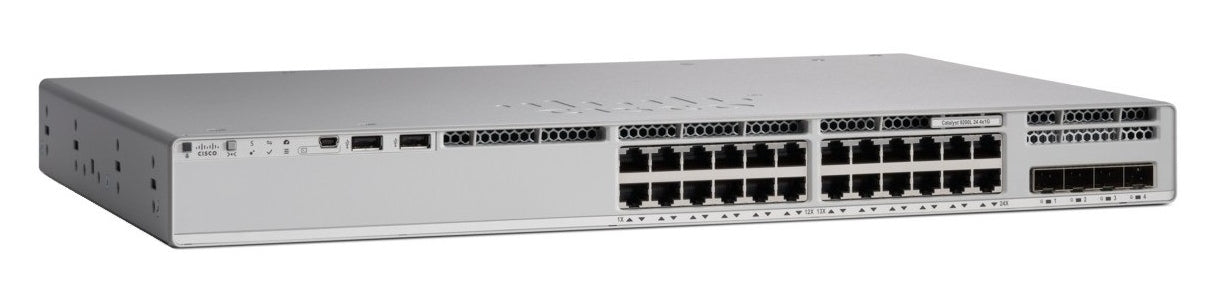

• Cisco C9200L-24PXG-2Y-A silver switch with black ports
1 1

Cisco

Cisco C9200L-24PXG-2Y-A | Catalyst 9200L 24-Port PoE+ Switch, 8x mGig 10G, 370W, 2x 25G SFP28

C9200L-24PXG-2Y-A

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco C9200L-24PXG-2Y-A Catalyst 9200L is a next-generation enterprise access switch delivering 8 multigigabit ports (up to 10G) and 16 Gigabit PoE+ ports with two fixed 25G SFP28 uplinks. With 370W PoE budget, Layer 3 routing, StackWise-80 support, and Network Advantage licensing, this switch is ideal for high-performance Wi-Fi 6/6E deployments, VoIP, and modern campus networks requiring automation and security.

Features

Layer 2 and Layer 3 switching with full routing protocols (OSPF, EIGRP, BGP, RIP)
- 8x multigigabit (mGig) ports supporting 100M/1G/2.5G/5G/10G over copper
- Full PoE+ (IEEE 802.3at) on all 24 ports with intelligent per-port power management
- StackWise-80 technology for simplified management and high availability
- Cisco UADP 2.0 Mini ASIC with programmable pipeline for advanced telemetry
- Energy Efficient Ethernet (EEE) for reduced power consumption
- Advanced security: MACsec encryption, TrustSec, IEEE 802.1X authentication
- Redundant power supply support for business continuity
- Fixed redundant fans for cooling reliability
- Cisco DNA Center integration for network automation and analytics
- Support for SD-Access fabric and segmentation with SGT (Security Group Tags)
- QoS, ACLs, VLANs, and multicast routing for traffic optimization
- Blue beacon LEDs (front and back) for easy physical identification
- Built-in passive RFID for asset management
- Model-driven programmability with open APIs (YANG, NETCONF, RESTCONF)
- Cisco IOS XE Software with consistent feature set across Catalyst 9000 family

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

Total ports: 24 (8x multigigabit 100M/1G/2.5G/5G/10G, 16x 10/100/1000 PoE+)
- Uplinks: 2x 25G SFP28 fixed (1G/10G/25G)
- PoE budget: 370W with default PWR-C5-600WAC power supply (740W with optional secondary PSU)
- All 24 ports support IEEE 802.3at PoE+ (up to 30W per port)
- Switching capacity: 292 Gbps (372 Gbps with stacking)
- Forwarding rate: 229.16 Mpps (277 Mpps with stacking)
- DRAM: 2 GB, Flash: 4 GB
- MAC address table: 16,000 entries
- IPv4 routing: 11,000 total (8,000 direct, 3,000 indirect)
- Stacking: StackWise-80 (80 Gbps bandwidth, up to 8 switches, C9200L-STACK-KIT required)
- Management: Cisco IOS XE, CLI, Web UI, SNMP, Cisco DNA Center, Meraki dashboard support
- Dimensions (H x W x D): 1.73 x 17.5 x 13.8 in (4.4 x 44.5 x 35.0 cm)
- Cooling: Fixed redundant fans
- Power supply: Dual PSU slots, field-replaceable, AC input 120/230V
- Console: RJ-45, USB-C, USB Type-A
- License: Network Advantage included

FAQs

Q: What is the PoE budget of the C9200L-24PXG-2Y-A?
A: The switch provides 370W PoE budget with the default 600W AC power supply. By adding an optional secondary power supply, the PoE budget increases to 740W, enabling power for all 24 PoE+ ports simultaneously.

Q: What devices are the multigigabit ports ideal for?
A: The 8 multigigabit ports support speeds up to 10G and are designed for high-performance Wi-Fi 6 and Wi-Fi 6E access points, high-bandwidth desktops, and uplinks to aggregation switches. They auto-negotiate at 100M/1G/2.5G/5G/10G over existing copper cabling.

Q: Can this switch be stacked with other Catalyst 9200 models?
A: Yes, it supports StackWise-80 stacking (80 Gbps bandwidth) and can stack with other C9200L fixed models of the same license level, up to 8 switches. Mixed stacking with C9200 modular models or other Catalyst series is not supported. The C9200L-STACK-KIT is required for each switch in the stack.

Q: What features are included in the Network Advantage license?
A: Network Advantage provides full Layer 3 routing (OSPF, EIGRP, BGP), advanced security (MACsec, TrustSec), QoS, redundancy protocols, IPv6, multicast routing, and support for Cisco DNA Center automation and SD-Access deployment.

Q: What are the uplink options on this switch?
A: The C9200L-24PXG-2Y-A has two fixed 25G SFP28 uplink ports that support 1G, 10G, and 25G optics, providing high-speed connectivity to the distribution or core layer for future-proof scalability.
