Cisco

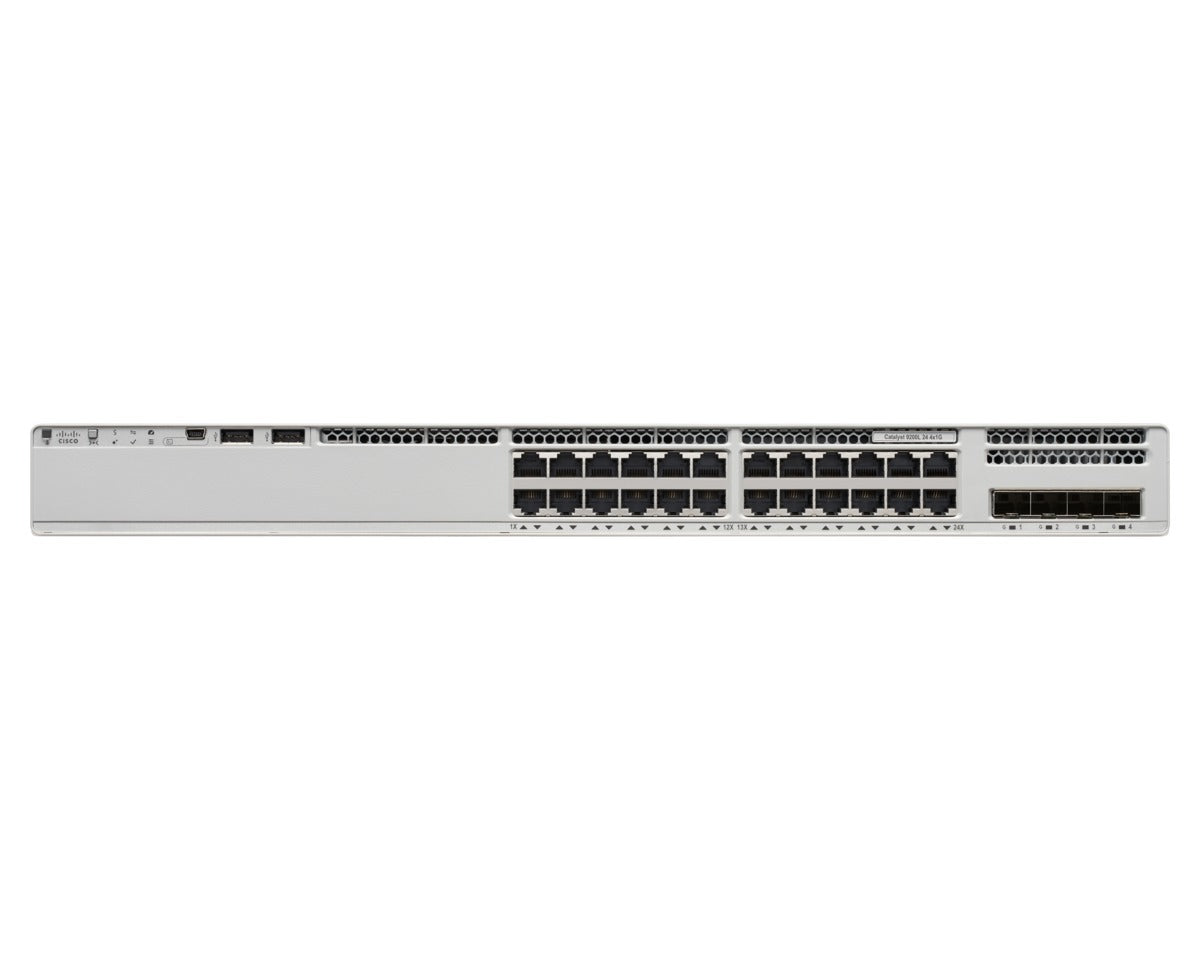

Cisco C9200-24P-A | Catalyst 9200 24-Port Gigabit PoE+ Switch, 370W, Network Advantage

C9200-24P-A

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco Catalyst C9200-24P-A is an enterprise-class stackable switch delivering 24 Gigabit Ethernet PoE+ ports with 370W power budget (expandable to 740W with dual PSUs) and modular uplink options. Built for campus and branch deployments, it features advanced Layer 3 routing with Network Advantage licensing, 160 Gbps StackWise stacking, field-replaceable power supplies and fans, and full integration with Cisco DNA Center for intent-based networking and automation.

Features

Full PoE+ support across all 24 ports with per-port power monitoring and allocation
- Modular architecture with field-replaceable uplink modules, power supplies, and fans
- StackWise-160 technology for stacking up to 8 switches as a single logical unit
- Advanced Layer 3 routing with OSPF, EIGRP, BGP, ISIS, and multicast protocols
- MACsec encryption for line-rate security on all ports
- Cisco TrustSec for policy-based network segmentation
- VXLAN support for software-defined segmentation and micro-segmentation
- Cisco DNA Center integration for automation, assurance, and analytics
- UADP 2.0 Mini ASIC for programmable hardware acceleration
- Energy Efficient Ethernet (IEEE 802.3az) and per-port power management
- Dual redundant power supply and fan modules for high availability
- Blue beacon LEDs (front and rear) for easy physical identification
- USB-C and USB Type-A console ports for simplified management access
- Cisco IOS XE with open APIs, NETCONF/YANG, and programmability

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

24x 10/100/1000 Mbps RJ-45 ports with full PoE+ (IEEE 802.3at, 30W per port)
- PoE budget: 370W with single PSU (PWR-C6-600WAC included), expandable to 740W with optional secondary PSU
- Modular uplink slot for flexible expansion (supports 1G/10G/25G/40G network modules, sold separately)
- Switching capacity: 128 Gbps standalone, 288 Gbps stacked
- Forwarding rate: 95.23 Mpps
- Stacking bandwidth: 160 Gbps with StackWise-160 (up to 8 switches)
- Memory: 4 GB DRAM, 4 GB Flash
- MAC address table: 32,000 entries
- Layer 3 routing: OSPF, EIGRP, BGP, ISIS, RIP, HSRP, VRRP
- Security features: MACsec (AES-128), TrustSec, VXLAN
- Management: Cisco DNA Center, CLI, web GUI, SNMP, NETCONF, RESTCONF
- Dual field-replaceable fans and power supplies for redundancy
- Dimensions (H x W x D): 1.73 x 17.5 x 15.4 in (4.4 x 44.5 x 39.1 cm), 1RU
- Operating temperature: -5°C to +45°C (up to 1,500 m), -5°C to +40°C (up to 3,000 m)
- Cisco IOS XE Software with Network Advantage license included

FAQs

Q: What is the difference between Network Advantage and Network Essentials licensing?
A: Network Advantage unlocks advanced Layer 3 routing protocols including BGP, EIGRP, ISIS, and VXLAN, along with enhanced security segmentation features like TrustSec and policy-based routing. Network Essentials provides basic Layer 2 switching and limited Layer 3 capabilities.

Q: Does this switch include uplink modules?
A: No, the C9200-24P-A has a modular uplink slot but the network module must be purchased separately. Available options include 4x 1G, 4x 10G, 2x 25G, or 2x 40G modules, allowing you to choose the uplink speed based on your infrastructure requirements.

Q: Can I increase the PoE budget beyond 370W?
A: Yes, installing a second power supply unit increases the total PoE budget from 370W to 740W, enabling you to power all 24 ports at full 30W PoE+ capacity simultaneously.

Q: Is the C9200-24P-A stackable, and can it stack with C9200L models?
A: Yes, it supports StackWise-160 stacking up to 8 switches with 160 Gbps bandwidth. However, mixed stacking is not supported - you cannot stack C9200 modular models with C9200L fixed-uplink models or other Catalyst series.

Q: What devices can I power with PoE+ on this switch?
A: The switch can power IEEE 802.3at PoE+ devices including wireless access points (Wi-Fi 6/6E APs), IP phones, IP cameras, IoT sensors, and other network devices requiring up to 30W per port.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
