Cisco

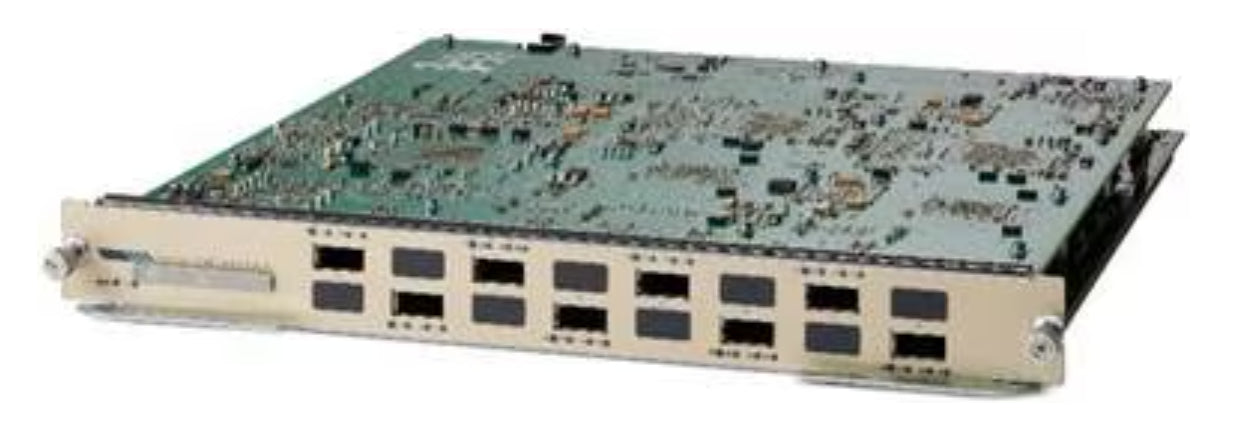

Cisco C6800-8P40G-XL | 8x40GbE QSFP+ line card (XL scale), 4x10G breakout per port (up to 32x10G), high FIB/ACL scale

Cisco C6800-8P40G-XL | 8x40GbE QSFP+ line card (XL scale), 4x10G breakout per port (up to 32x10G), high FIB/ACL scale

SKU:C6800-8P40G-XL

Regular price $0.00 AUD
Regular price
$0.00 AUD
$0.00 AUD
Regular price
Sale Sold out
Shipping calculated at checkout.

Description

XL-scale 40 GbE line card for Catalyst 6800 chassis providing the same flexible port options as the standard model, with expanded hardware resources for larger routing, ACL, and QoS table capacity in large-scale campus and aggregation fabrics.

Features

- XL-scale FIB/ACL/QoS resources for large networks
- Eight 40GbE ports with flexible 10G breakout
- Wire-rate L2/L3 forwarding with compatible supervisors
- Broad QSFP+ optics ecosystem (SR4/LR4) plus DAC/AOC
- Designed for high-availability campus core deployments

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Similar products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: How does the XL version differ from the standard 8x40G card?
A: Functionally, port capabilities are the same. The XL variant provides larger forwarding and policy tables (FIB/ACL/QoS) for scale-intensive deployments.

Q: Does the XL card also support 10G breakout?
A: Yes. Each QSFP+ can be broken out to 4x10G with compatible breakout modules/cables.

Q: What software or supervisor is recommended?
A: Use a compatible supervisor (e.g., SUP6T) and corresponding software release to leverage XL scaling and features.

Q: Is there any special licensing for XL features?
A: XL scaling is a hardware capability of the line card; software image selection may be required for specific advanced features.

Technical Specifications

- Form factor: Catalyst 6800 chassis line card (XL scale)
- Port density: 8x 40 Gigabit Ethernet (QSFP+)
- Breakout support: 4x10G per QSFP+ (up to 32x10G total)
- Aggregate port bandwidth: 320 Gbps (8 x 40G)
- XL resources: Increased FIB, ACL, and QoS table capacity vs non-XL
- Optics compatibility: 40GBASE-SR4, 40GBASE-LR4 (QSFP+), DAC/AOC
- Typical wavelengths: SR4 850 nm, LR4 1310 nm
- Typical connectors: SR4 MPO-12, LR4 duplex LC (module dependent)
- High availability: Supports SSO/NSF and ISSU with redundant supervisors
- Recommended supervisors: SUP6T for full feature/performance
- Chassis compatibility: Catalyst 6800 series chassis (e.g., 6807-XL)
