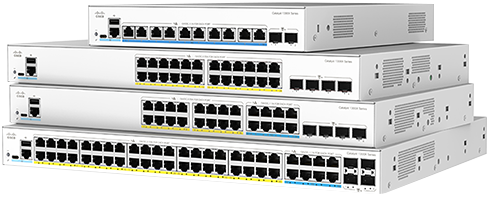

• Cisco C1300X-24NGU-4X stack of white switches with black ports yellow accents
1 1

Cisco

Cisco C1300X-24NGU-4X | Catalyst 1300X 24-Port Switch, 8x 5G + 16x 1G UPoE, 740W, 4x 10G SFP+

C1300X-24NGU-4X

Stock Status: Enquire

$2,923.50 AUD
$2,923.50 AUD
$2,923.50 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco Catalyst 1300X-24NGU-4X is a managed Layer 3 switch designed for SMB and enterprise branch networks requiring high-density UPoE and multi-gigabit connectivity. It delivers 8 ports of 1/2.5/5G multi-gigabit Ethernet, 16 ports of Gigabit UPoE supporting up to 60W per port via 802.3bt Type 3, and 4x 10G SFP+ uplinks with 740W total PoE budget. Ideal for powering Wi-Fi 6/7 access points, IP cameras, and advanced IoT devices with OSPF routing, front-panel stacking, and comprehensive security features.

Features

Layer 3 managed switch with static routing, OSPF dynamic routing, and full inter-VLAN routing
- 8 ports multi-gigabit 1/2.5/5G RJ45 for high-bandwidth wireless and endpoint connectivity
- 16 ports Gigabit Ethernet with UPoE 802.3bt Type 3 delivering up to 60W per port
- 740W total PoE power budget to support high-density wireless, IP cameras, and IoT devices
- 4x 10G SFP+ uplinks for fiber or DAC connections, supporting 10G data and 25G stacking
- Front-panel stacking up to 8 switches with hardware failover and unified management
- Advanced QoS with 4 egress queues, traffic prioritization, rate limiting, and policing
- Comprehensive Layer 2 features including 4094 VLANs, STP/RSTP/MSTP, link aggregation (LACP)
- Enterprise security with IEEE 802.1X, web authentication, RADIUS/TACACS+, DHCP snooping, dynamic ARP inspection
- IPv6 First Hop Security suite including RA Guard, ND inspection, and DHCPv6 guard
- Energy Efficient Ethernet IEEE 802.3az for reduced power consumption during low traffic
- Cisco Business Dashboard and mobile app for simplified deployment and cloud-based monitoring
- Full CLI support via SSH and Telnet for advanced configuration and scripting
- SNMP v1/v2c/v3 for integration with third-party network management systems
- Rack-mountable 1RU form factor with included 19-inch mounting brackets
- Fanless or low-noise operation suitable for office, classroom, and retail deployments

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Total Ports: 24 access ports (8x 1/2.5/5GBase-T multi-gig + 16x 10/100/1000 UPoE) + 4x 10G SFP+ uplinks
- PoE Budget: 740W total, supports 802.3bt Type 3 UPoE up to 60W per port on 16 Gigabit ports, 802.3at PoE+ on multi-gig ports
- Switching Capacity: Up to 128 Gbps, forwarding rate 95.23 Mpps
- Layer 3 Features: Static routing, OSPF dynamic routing, inter-VLAN routing, IPv4/IPv6 dual stack
- Memory & Flash: 1GB DDR4 RAM, 512MB Flash storage
- Stacking: Front-panel stacking up to 8 switches via SFP28 ports, 25G stacking bandwidth
- Management: Cisco Business Dashboard, Web UI, CLI, SNMP, SSH, Telnet, Network Plug and Play
- Security: IEEE 802.1X authentication, DHCP snooping, Dynamic ARP inspection, IP Source Guard, IPv6 First Hop Security, ACLs
- QoS: IEEE 802.1p CoS, DSCP, 4 egress queues per port, traffic shaping and policing
- Power: 100-240V AC 50/60 Hz internal power supply, maximum consumption 437W with full PoE load
- Dimensions: 445 x 299 x 44 mm (17.5 x 11.8 x 1.73 in), rack-mountable 1RU
- Environmental: Operating temperature 0°C to 45°C, humidity 10% to 90% non-condensing
- Certifications: UL 62368, CSA 22.2, CE mark, FCC Part 15 Class A, Energy Efficient Ethernet IEEE 802.3az

FAQs

Q: What is the difference between UPoE and standard PoE+?
A: UPoE (Universal PoE) via 802.3bt Type 3 delivers up to 60W per port on the 16 Gigabit ports, compared to 30W for standard PoE+ 802.3at. This higher power budget supports demanding devices like Wi-Fi 6E/7 access points, PTZ cameras, and LED lighting. The 8 multi-gigabit ports support standard PoE+ at 30W per port.

Q: Can I use this switch for Wi-Fi 6 or Wi-Fi 7 access point deployment?
A: Yes, the C1300X-24NGU-4X is specifically designed for next-generation wireless. The 8 multi-gigabit ports support 1/2.5/5 Gbps speeds ideal for Wi-Fi 6 APs, while the 60W UPoE capability on 16 ports can power high-performance Wi-Fi 7 access points without additional power supplies.

Q: Does this switch support stacking and what are the benefits?
A: Yes, the C1300X series supports front-panel stacking of up to 8 switches using the 4x 10G SFP28 ports with 25G stacking bandwidth. Stacking allows unified management with a single IP address, redundancy, and simplified configuration across up to 400 ports managed as one logical unit.

Q: What Layer 3 routing protocols are supported?
A: The C1300X-24NGU-4X supports static IPv4/IPv6 routing for inter-VLAN communication and OSPF dynamic routing protocol. OSPF provides automatic path determination and rapid convergence, making it suitable for branch office networks requiring advanced routing without the complexity of enterprise core switches.

Q: Is a license required to use Layer 3 or PoE features?
A: No license is required. The C1300X series includes all Layer 3 routing, PoE management, security features, and stacking capabilities out of the box with no ongoing subscription fees. Software updates are included with complimentary 1-year technical support.
