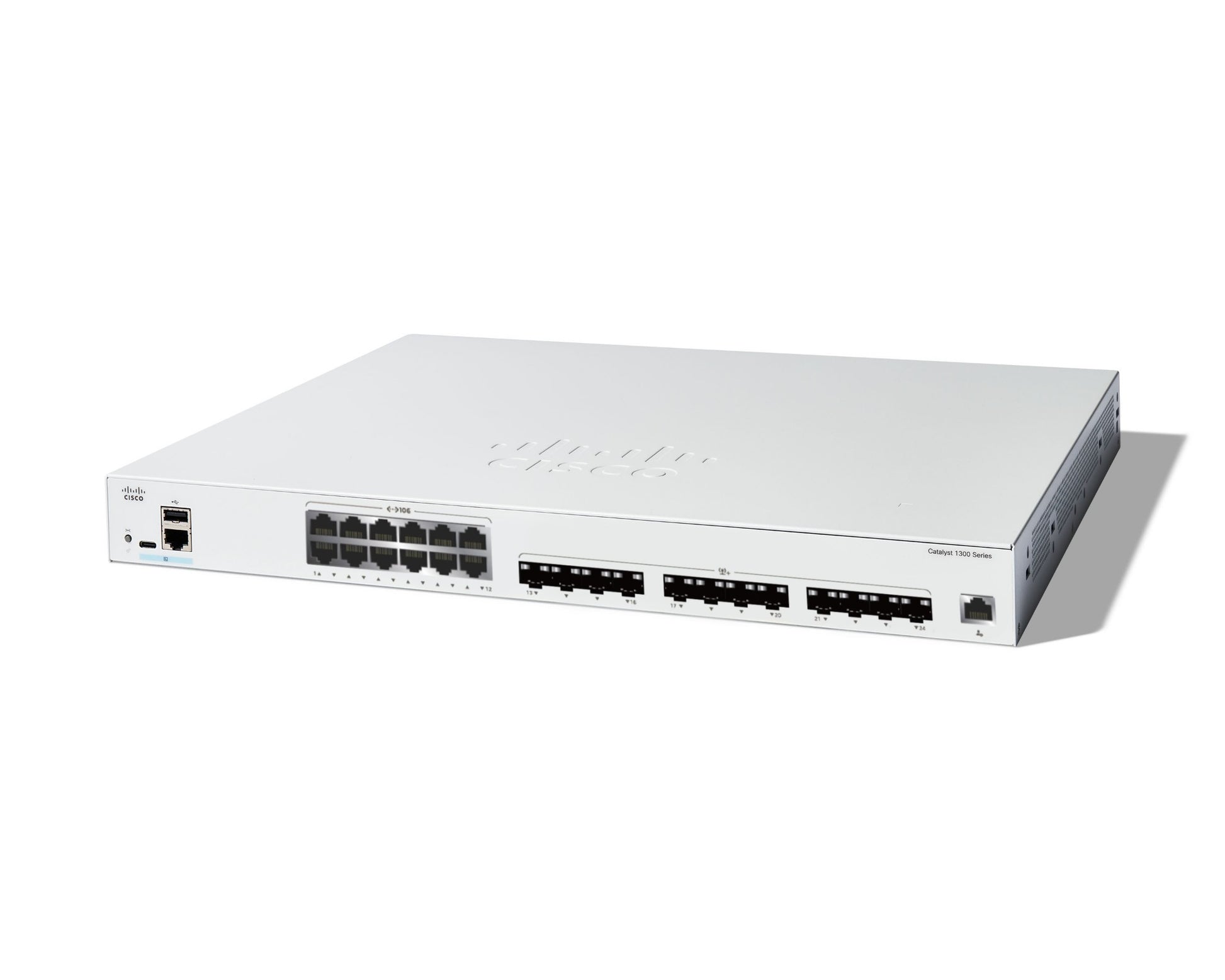

• Cisco C1300-24XTS silver switch with black ports and 10G uplinks
1 1

Cisco

Cisco C1300-24XTS | Catalyst 1300 24-Port 10G Switch, 12x RJ45 + 12x SFP+

C1300-24XTS

Stock Status: Enquire

$6,088.55 AUD
$6,088.55 AUD
$6,088.55 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco Catalyst C1300-24XTS is a Layer 3 managed switch designed for small to medium-sized businesses and enterprise branch offices. It features 12 x 10 Gigabit copper RJ-45 ports and 12 x 10 Gigabit SFP+ ports, delivering high-speed connectivity with 480 Gbps switching capacity and 357.12 Mpps forwarding rate. With front-panel hardware stacking support for up to 8 switches, advanced security features, and an intuitive management interface, this switch provides enterprise-grade performance without licensing requirements.

Features

Layer 3 routing with static routing, RIP, OSPF, and Policy-Based Routing (PBR)
- Advanced VLAN support: up to 4093 VLANs, port-based, 802.1Q tag-based, MAC-based, protocol-based, and IP subnet-based VLANs
- IEEE 802.1X authentication and port security for network access control
- Web-based authentication for clientless endpoint authentication
- Dynamic ARP inspection, IP Source Guard, and DHCP snooping for threat protection
- IPv6 First Hop Security with ND inspection, RA guard, and DHCPv6 guard
- Link aggregation: IEEE 802.3ad LACP with up to 8 groups and 8 ports per group
- Spanning Tree Protocol: 802.1d, 802.1w RSTP, 802.1s MSTP, PVST+, and RPVST+
- QoS with voice VLAN and traffic prioritization
- VLAN translation and Q-in-Q for service provider environments
- Multicast support with IGMP snooping
- Energy-efficient design compliant with IEEE 802.3az Energy Efficient Ethernet
- Dual image support for hitless software upgrades
- SSH and SSL encryption for secure management
- Ring and chain stacking with auto-stacking port speed configuration
- LAG support across multiple stacked units for high availability

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

Total 24 ports: 12 x 10G RJ-45 copper ports + 12 x 10G SFP+ fiber ports
- Additional 1 x Gigabit Ethernet management port
- Switching capacity: 480 Gbps
- Forwarding rate: 357.12 Mpps
- Layer 3 routing capabilities with support for IPv4 and IPv6
- Hardware stacking: Up to 8 switches, 200 ports managed as single system
- Power consumption: 86.7W typical (220V)
- Form factor: 1U rack-mountable
- Supports dual software images for minimal downtime during upgrades
- Management: CLI, Web UI, Cisco Business Dashboard, Cisco Business mobile app
- 10 Gigabit copper and SFP+ ports support both 10 Gigabit and 1 Gigabit speeds
- Front-panel hardware stacking with ring and chain topologies
- Limited lifetime hardware warranty with 1-year complimentary technical support

FAQs

Q: Does the C1300-24XTS require any licenses to operate?
A: No, the Catalyst C1300-24XTS requires no subscription or licenses to use. All Layer 2 and Layer 3 features are available out of the box, making it ideal for cost-conscious deployments.

Q: Can I stack multiple C1300-24XTS switches together?
A: Yes, the C1300-24XTS supports front-panel hardware stacking. You can stack up to 8 switches from the same family (Family 2 includes C1300-12XT-2X, C1300-12XS, C1300-16XTS, C1300-24XS, C1300-24XT, and C1300-24XTS), managing up to 200 ports as a single system with unified management and a single IP address.

Q: What speed do the ports support on this switch?
A: Both the 10 Gigabit copper RJ-45 ports and the 10 Gigabit SFP+ ports support dual-speed operation at 10 Gigabit and 1 Gigabit speeds, providing deployment flexibility for mixed-speed environments.

Q: Is this switch suitable for enterprise branch office deployments?
A: Yes, the C1300-24XTS is specifically designed for enterprise branch offices and SMB networks. It offers enterprise-class Layer 3 features, advanced security capabilities including IEEE 802.1X, dynamic ARP inspection, DHCP snooping, and IPv6 First Hop Security, making it ideal for distributed enterprise deployments.

Q: What management options are available?
A: The switch offers flexible management options including full CLI access via console or SSH, intuitive web-based GUI, Cisco Business Dashboard for centralized management, and the Cisco Business mobile app for on-the-go configuration and monitoring. Bluetooth management is also supported via optional USB dongle.
