• Cisco C1300-24XT 24-port 10G silver switch with 4x SFP+
1 1

Cisco

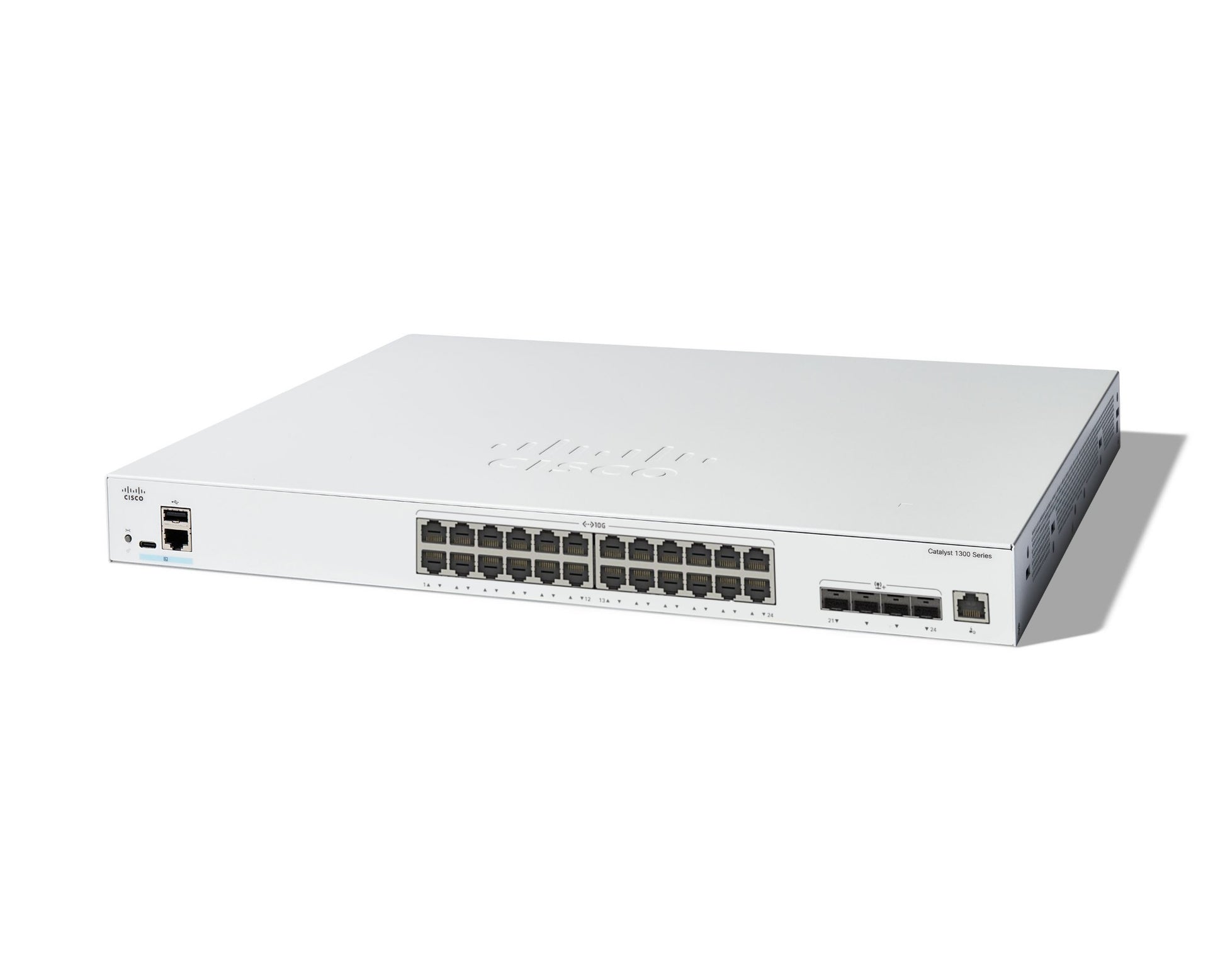

Cisco C1300-24XT | Catalyst 1300 24-Port 10G Switch, 4x 10G SFP+/RJ45, Layer 3

C1300-24XT

Stock Status: Enquire

$5,681.30 AUD
$5,681.30 AUD
$5,681.30 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco C1300-24XT is a fully managed Layer 3 switch designed for enterprise branch offices and SMB networks requiring high-speed 10 Gigabit connectivity. With 20 dedicated 10G copper ports and 4 combo 10G SFP+/RJ45 uplinks, this switch delivers reliable performance with 480 Gb/s switching capacity and advanced networking features. Managed via intuitive Cisco Business Dashboard or CLI, it supports front-panel stacking of up to 8 units and comprehensive security features including 802.1X, ACLs, and DHCP snooping.

Features

Layer 3 static routing for inter-VLAN routing and network segmentation
- Advanced QoS (Quality of Service) with 802.1p CoS and DSCP-based prioritization
- Comprehensive security: 802.1X authentication, MAC filtering, port security, ACLs
- Advanced threat defense: Dynamic ARP inspection, IP Source Guard, DHCP snooping (IPMB)
- IPv6 First Hop Security with ND inspection, RA guard, and DHCPv6 guard
- Front-panel hardware stacking up to 8 switches with ring and chain topologies
- Dual firmware image support for zero-downtime software upgrades
- Rapid network convergence with RSTP (802.1w) and MSTP (802.1s)
- IGMP snooping v1/v2/v3 for efficient multicast traffic management
- Link aggregation (LAG/EtherChannel) with LACP support across stack units
- Energy Efficient Ethernet (IEEE 802.3az) for reduced power consumption
- Customized Linux OS with intuitive web dashboard and mobile app management
- USB Type-C port for easy file and image management
- Secure management protocols: SSH v2, HTTPS, SNMPv3, RADIUS, TACACS+
- Auto-surveillance VLAN and voice VLAN with LLDP-MED support
- Port mirroring (SPAN) for traffic analysis and troubleshooting
- Broadcast/multicast/unicast storm control
- Jumbo frame support up to 9KB for optimized data transfer
- Cable diagnostics and onboard packet capture for advanced troubleshooting

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

Total Ports: 24 (20 x 10G RJ45 + 4 x 10G RJ45/SFP+ combo)
- Port Speed: 10 Gigabit Ethernet (supports 10G/5G/2.5G/1G auto-negotiation)
- Uplinks: 4 x 10G SFP+/RJ45 combo ports (shared)
- PoE Support: None (non-PoE model)
- Switching Capacity: 480 Gb/s
- Forwarding Rate: 357.14 Mpps
- CPU: ARM dual-core at 1.4 GHz
- Memory: 1 GB DDR4 RAM
- Flash Storage: 512 MB
- Layer Support: Layer 2 and Layer 3 switching with static routing
- Stacking: Front-panel hardware stacking, up to 8 switches
- Management: Web GUI, CLI (SSH/console), Cisco Business Dashboard, Cisco Business mobile app
- Console: RJ-45 console port and USB Type-C port
- Out-of-Band Management: 1 x Gigabit Ethernet OOB port
- VLAN Support: Up to 256 VLANs, 802.1Q VLAN tagging
- Power Consumption: 88W maximum
- Form Factor: 1U rack-mountable
- Dimensions: 44.5 x 21.1 x 4.4 cm (17.5 x 8.3 x 1.7 in)
- Weight: 4.9 kg (10.8 lb)
- Cooling: Low-noise fan cooling
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Compliance: IEEE 802.3az Energy Efficient Ethernet, IEEE 802.1X, IEEE 802.3af/at

FAQs

Q: Does the C1300-24XT require a license to operate?
A: No, the Cisco Catalyst 1300-24XT operates without any subscription or license requirements. All Layer 2 and Layer 3 features are available out of the box, making it ideal for businesses seeking a cost-effective managed switch solution.

Q: Can the 10G copper ports support lower speeds like 1 Gigabit?
A: Yes, the 10G copper ports on the C1300-24XT support multi-gigabit auto-negotiation and can operate at 10G, 5G, 2.5G, and 1G speeds, providing flexibility for connecting legacy devices and future-proofing your network infrastructure.

Q: What is the difference between the combo ports and regular ports?
A: The 4 combo ports support both 10G copper RJ45 and 10G SFP+ fiber connectivity, but only one media type can be active per port at a time. The 20 regular ports are dedicated 10G copper RJ45 only. This design provides flexible uplink options for fiber or copper connections.

Q: Can I stack the C1300-24XT with other Catalyst 1300 models?
A: The C1300-24XT can be stacked with other models from the same family (Family 2), including C1300-12XT-2X, C1300-12XS, C1300-16XTS, C1300-24XS, and C1300-24XTS. Cross-stacking between different families is not supported. Up to 8 switches can be stacked with a single management IP address.

Q: What warranty and support does Cisco provide for this switch?
A: The C1300-24XT includes a limited lifetime hardware warranty and complimentary 1-year technical support through the Cisco Small Business Support Center. Extended support options are available through Cisco Smart Net Total Care for 24x7 advanced replacement and technical assistance.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
