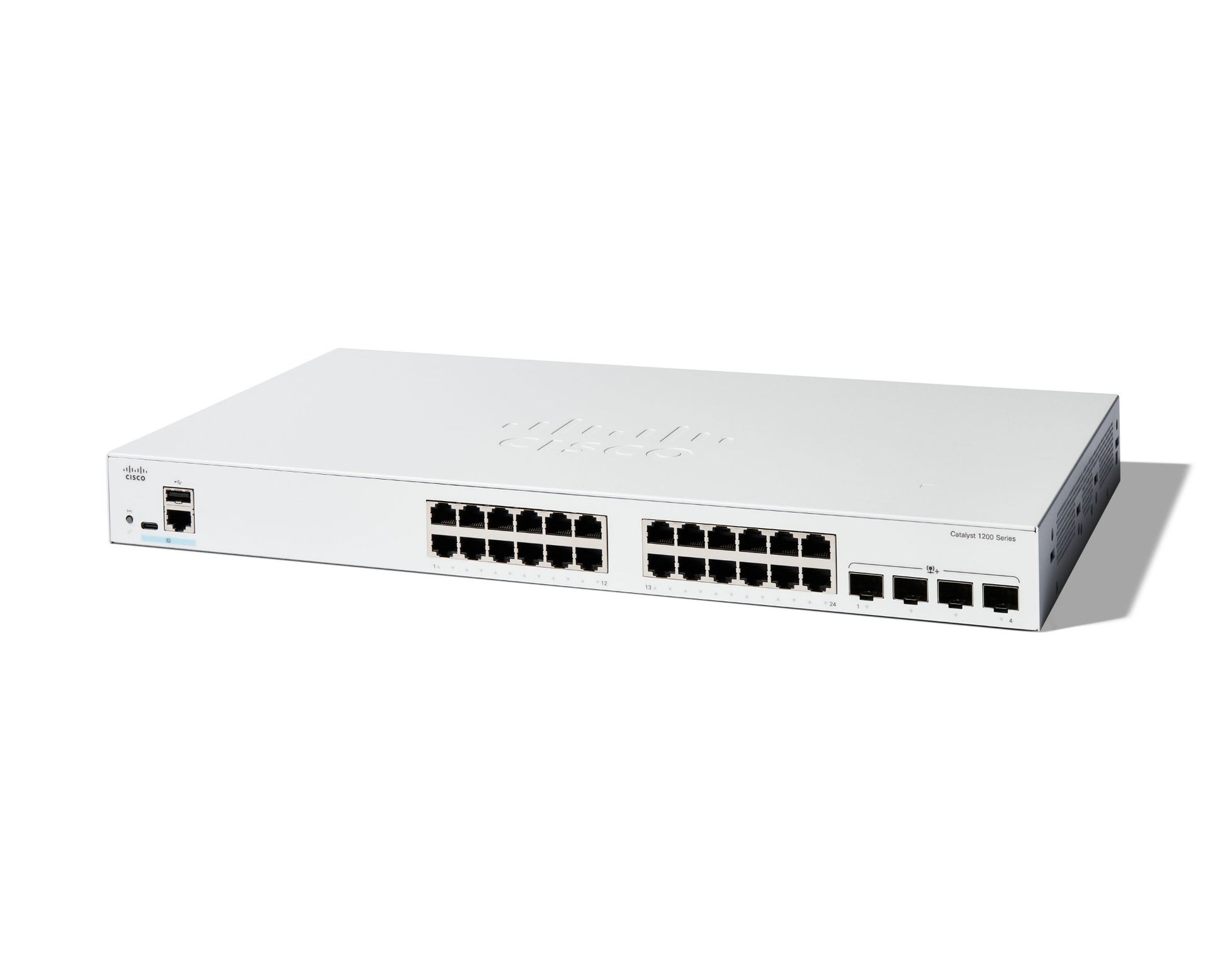

• Cisco C1200-24T-4X white 24-port switch with console port
1 1

Cisco

Cisco C1200-24T-4X | Catalyst 1200 24-Port Gigabit Switch, 4x 10G SFP+

C1200-24T-4X

Stock Status: Enquire

$1,070.42 AUD
$1,070.42 AUD
$1,070.42 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco Catalyst C1200-24T-4X is an affordable smart switch designed for small to medium-sized businesses, combining powerful performance with comprehensive network features. With 24 Gigabit Ethernet ports and 4x 10G SFP+ uplinks, this fanless switch delivers 128 Gbps switching capacity and Layer 3 static routing capabilities. Managed through the Cisco Business Dashboard, mobile app, web UI, or CLI, it provides advanced security, VLAN segmentation, and QoS features ideal for modern business networks requiring quiet operation and high-speed uplink connectivity.

Features

Layer 2 switching with Layer 3 static routing (IPv4 and IPv6)
- Advanced VLAN support including 802.1Q tagging, private VLANs, and voice VLAN
- Spanning Tree Protocol: 802.1d STP, 802.1w RSTP (default), 802.1s MSTP (8 instances), PVST+ and Rapid PVST+ (126 instances each)
- Link aggregation (IEEE 802.3ad LACP) for increased bandwidth and redundancy
- Comprehensive security: IEEE 802.1X port-based authentication, extensive ACLs, port security, DoS attack prevention
- Quality of Service (QoS): 8 hardware queues per port, priority-based scheduling, rate limiting
- IGMP snooping for efficient multicast traffic management
- DHCP server and DHCP relay for simplified IP address management
- Cisco Network Plug and Play for zero-touch provisioning
- Boot integrity visibility for platform identity and software integrity verification
- Energy Efficient Ethernet (IEEE 802.3az) for reduced power consumption
- SNMP v1/v2c/v3 for comprehensive network monitoring
- Port mirroring (SPAN) for traffic analysis and troubleshooting
- Syslog and RMON support for event logging and network diagnostics
- Cable diagnostics for copper port troubleshooting
- USB Type-C port for file management, image uploads, and console access

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

24x 10/100/1000Base-T RJ-45 ports
- 4x 10G SFP+ uplink ports
- Switching capacity: 128 Gbps
- Forwarding rate: 95.23 Mpps (wire-speed, non-blocking)
- Packet buffer: 1.5 MB (dynamically shared)
- Layer 3 static routing: up to 32 static routes and 16 IP interfaces
- VLAN support: up to 255 active VLANs
- Jumbo frame support: up to 9000 bytes (default MTU 2000 bytes)
- QoS: 8 hardware queues per port
- Management: Cisco Business Dashboard, Web UI, Mobile App, SNMP, CLI, USB Type-C console
- Power: 100-240VAC, 50-60Hz internal universal power supply
- Power consumption: 27W typical
- Fanless design for silent operation
- Dimensions: 445 x 240 x 44 mm (17.5 x 9.45 x 1.73 in), 1U rack-mountable
- Weight: 2.78 kg (6.13 lb)
- Operating temperature: -5°C to 50°C (23°F to 122°F)
- MTBF: 2,026,793 hours at 25°C
- Certifications: UL 62368, CSA 22.2, CE, FCC Part 15 Class A

FAQs

Q: Does the C1200-24T-4X require any software licenses?
A: No, the Catalyst 1200 Series switches do not require separate software licenses. All features are included with the hardware purchase, making deployment simple and cost-effective.

Q: What is the difference between the C1200-24T-4X and C1200-24T-4G models?
A: The C1200-24T-4X features 4x 10G SFP+ uplink ports with 128 Gbps switching capacity, while the C1200-24T-4G has 4x 1G SFP uplinks with 56 Gbps capacity. The 4X model is ideal for higher bandwidth aggregation and future growth.

Q: Can this switch support PoE devices?
A: No, the C1200-24T-4X is a non-PoE model. For Power over Ethernet requirements, consider the C1200-24P-4X (195W PoE+) or C1200-24FP-4X (370W PoE+) models in the same series.

Q: Is the C1200-24T-4X suitable for enterprise campus deployments?
A: The Catalyst 1200 Series is primarily designed for small to medium-sized business networks. For larger enterprise campus environments requiring stacking, advanced Layer 3 routing, and redundancy features, consider the Catalyst 9200 or 9300 Series.

Q: What transceivers are compatible with the 10G SFP+ ports?
A: The 10G SFP+ ports support Cisco and third-party SFP+ transceivers including 10GBASE-SR, 10GBASE-LR, 10GBASE-LRM modules, as well as Direct Attach Copper (DAC) and Active Optical Cables (AOC). Use Cisco's transceiver compatibility tool to verify specific modules.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
