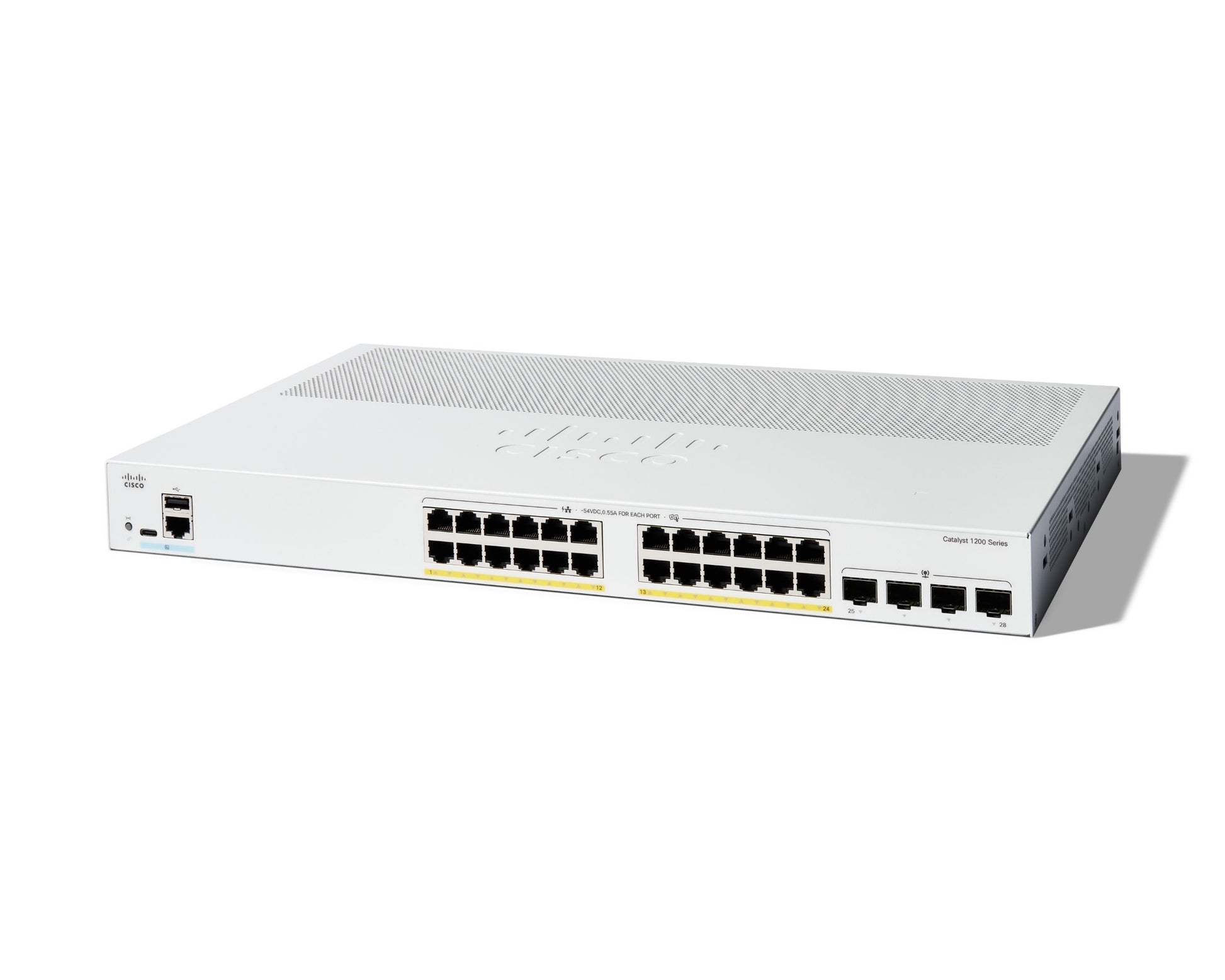

• Cisco C1200-24P-4G 24-port white PoE+ switch with USB
1 1

Cisco

Cisco C1200-24P-4G | Catalyst 1200 24-Port Gigabit PoE+ Switch, 195W, 4x 1G SFP

C1200-24P-4G

1 in stock

$1,046.89 AUD
$1,046.89 AUD
$1,046.89 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco C1200-24P-4G is a smart-managed Layer 3 switch designed for small and medium-sized businesses. It delivers 24 Gigabit PoE+ ports with a 195W power budget to support IP phones, wireless access points, and surveillance cameras, plus 4 SFP uplinks for flexible fiber or copper backbone connectivity. With fanless operation, Layer 3 static routing, and intuitive management via Cisco Business Dashboard or mobile app, this switch provides reliable, silent network performance for offices, retail, education, and healthcare environments.

Features

Layer 3 static routing for inter-VLAN communication and network segmentation
- IEEE 802.1X port-based network access control for secure authentication
- Access Control Lists (ACLs) for traffic filtering and security policies
- Quality of Service (QoS) with 802.1p priority queuing for voice and video traffic
- Spanning Tree Protocol support: 802.1d, 802.1w (RSTP), 802.1s (MSTP), PVST+, RPVST+
- Link Aggregation (LACP/802.3ad) for increased bandwidth and redundancy
- IGMP v1/v2/v3 snooping for efficient multicast traffic management
- DHCP snooping, IP Source Guard, and Dynamic ARP Inspection for Layer 2 security
- Port security and storm control to prevent network attacks
- Auto-negotiation and auto-MDI/MDIX on all copper ports
- Energy Efficient Ethernet (IEEE 802.3az) for reduced power consumption
- Cable diagnostics and port mirroring for troubleshooting
- Dual firmware images for safe upgrades and recovery
- Voice VLAN and auto-voice VLAN for simplified VoIP deployment
- Comprehensive logging and SNMP v1/v2c/v3 for monitoring

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

24x 10/100/1000 Mbps PoE+ (802.3af/at) Ethernet ports
- 4x 1G SFP uplink ports
- Total PoE budget: 195W (up to 30W per port)
- Switching capacity: 56 Gbps
- Forwarding rate: 41.66 Mpps (64-byte packets)
- MAC address table: 8,000 entries
- VLAN support: Up to 255 active VLANs
- Layer 3 static routing (up to 32 routes, 16 IP interfaces)
- Jumbo frame support: Up to 9,000 bytes
- Management: Cisco Business Dashboard, Web GUI, Mobile App, CLI, SNMP
- Fanless design for silent operation
- Power supply: Internal, 100-240V AC, 50-60 Hz
- Dimensions: 445 x 240 x 44 mm (17.5 x 9.45 x 1.73 inches)
- Weight: 2.63 kg (5.80 lb)
- Operating temperature: -5°C to 50°C (23°F to 122°F)
- Certifications: UL 62368, CSA 22.2, CE mark, FCC Part 15 Class A

FAQs

Q: Does this switch require a license to operate?
A: No, the C1200-24P-4G does not require any software licenses. It is a smart-managed switch with all features enabled out of the box, including Layer 3 static routing, VLAN support, and security features.

Q: What is the maximum PoE power per port?
A: Each PoE+ port can deliver up to 30W per port following the IEEE 802.3at standard, within the switch's total 195W PoE budget. The switch automatically allocates power to connected devices based on their requirements.

Q: Can this switch be managed remotely?
A: Yes, the C1200-24P-4G supports remote management through the Cisco Business Dashboard (cloud-based), Web GUI, Mobile App, CLI, and SNMP, allowing administrators to configure and monitor the switch from anywhere.

Q: Is the switch suitable for noise-sensitive environments?
A: Yes, the C1200-24P-4G features a fanless design, making it completely silent during operation. This makes it ideal for offices, classrooms, clinics, retail spaces, and other environments where noise is a concern.

Q: What type of SFP modules are compatible with the uplink ports?
A: The four SFP uplink ports support standard Cisco 1G SFP modules, including multimode fiber (GLC-SX-MM), single-mode fiber (GLC-LH-SM), and copper SFP modules (GLC-T), providing flexible connectivity options for different network topologies.
