• Cisco C1200-24FP-4X switch with 24x 1G PoE+ ports and 4x 10G SFP+
1 1

Cisco

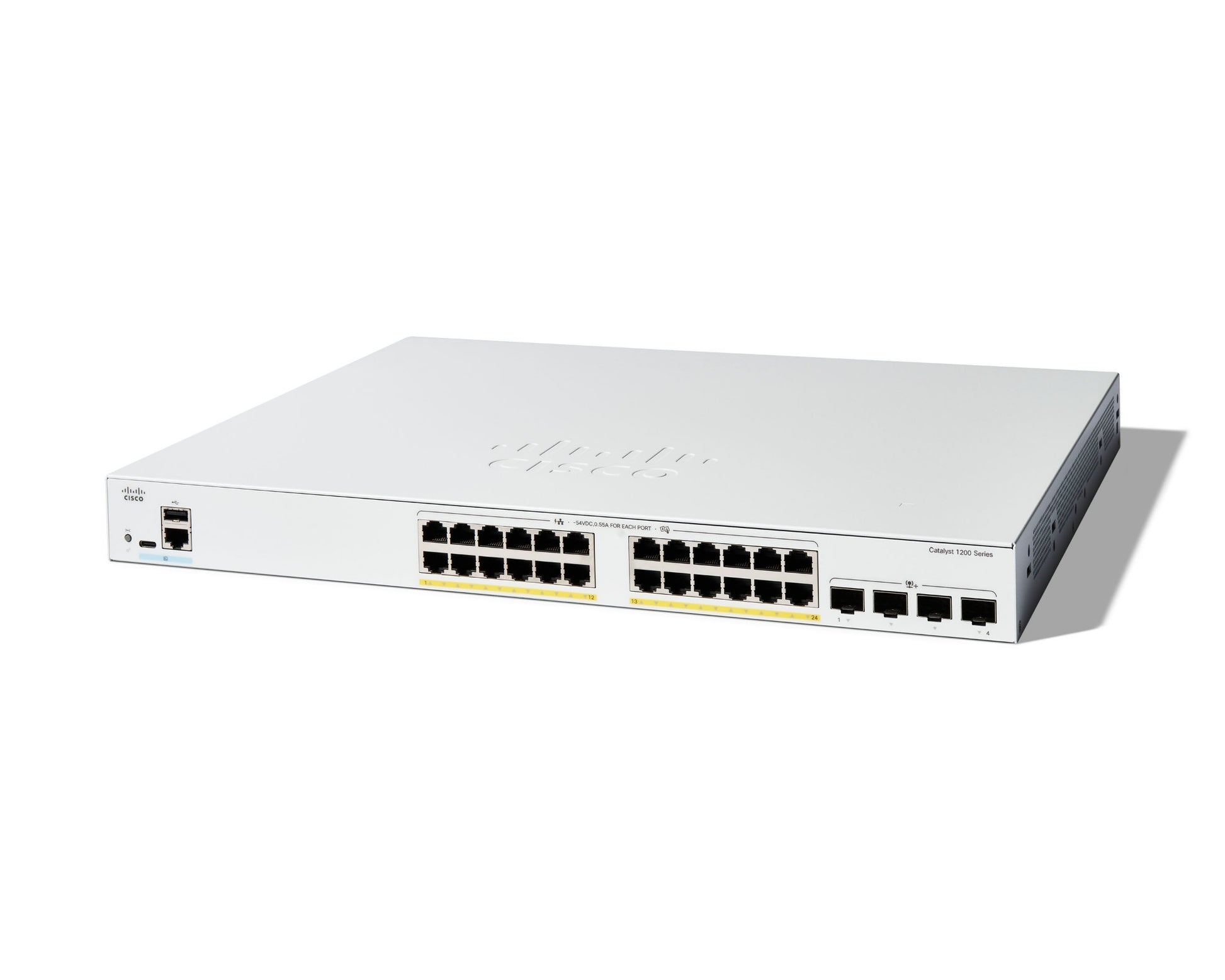

Cisco C1200-24FP-4X | Catalyst 1200 24-Port Gigabit PoE+ Switch, 375W, 4x 10G SFP+

C1200-24FP-4X

Stock Status: Enquire

$1,795.19 AUD
$1,795.19 AUD
$1,795.19 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco Catalyst 1200-24FP-4X is a smart managed switch designed for small and medium-sized businesses requiring high-performance access layer connectivity with 10G uplinks. It delivers 24 Gigabit PoE+ ports with a 375W budget to power IP phones, wireless access points, and surveillance cameras, plus 4x 10G SFP+ uplinks for high-speed fiber aggregation to core or distribution layers. With Layer 3 static routing, robust security features, and flexible management via Cisco Business Dashboard, mobile app, web UI, or CLI, this 1RU rack-mountable switch provides enterprise-class reliability at an affordable SMB price point.

Features

Layer 2 switching with Layer 3 static routing (IPv4/IPv6)
- IEEE 802.3af/at PoE+ with 375W total budget
- Wire-speed, non-blocking architecture (128 Gbps, 95.23 Mpps)
- Advanced VLAN support: 802.1Q, voice VLAN, private VLAN edge, guest VLAN
- Spanning Tree Protocol: 802.1d STP, 802.1w RSTP, 802.1s MSTP, PVST+, Rapid PVST+
- Link aggregation: IEEE 802.3ad LACP, up to 4 groups, 8 ports per group
- Security: 802.1X port-based authentication, IPv4/IPv6 ACLs, DHCP snooping, IP Source Guard, Dynamic ARP Inspection, DoS prevention, port security, storm control
- Quality of Service (QoS): 8 hardware queues per port, 802.1p/DSCP classification, Weighted Round-Robin (WRR), strict priority queuing, rate limiting
- Multicast: IGMPv1/v2/v3 snooping, IGMP querier, up to 255 multicast groups, MLDv1/v2 snooping
- Energy Efficient Ethernet (IEEE 802.3az)
- Management via Cisco Business Dashboard (embedded probe), mobile app, Web UI, CLI, SNMP, syslog, RMON
- Cisco Network Plug and Play for zero-touch deployment
- Dual firmware images for resilient upgrades
- LLDP and LLDP-MED for device discovery and VoIP interoperability
- Rack-mountable 1RU form factor with included mounting kit

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

24x 10/100/1000 RJ-45 PoE+ ports (IEEE 802.3af/at)
- 4x 10G SFP+ uplink ports
- PoE budget: 375W total, up to 30W per port
- Switching capacity: 128 Gbps
- Forwarding rate: 95.23 Mpps (wire-speed, non-blocking)
- VLAN support: Up to 255 active VLANs
- MAC address table: 8,000 entries
- Packet buffer: 1.5 MB (shared)
- Memory: 1 GB RAM, 512 MB Flash
- Jumbo frame support: Up to 9,000 bytes
- Layer 3 static routing: Up to 32 IPv4 routes, 16 IP interfaces
- Management: Cisco Business Dashboard (embedded probe), Cisco Business mobile app, Web UI (HTTP/HTTPS), CLI (SSH/Telnet), SNMPv1/v2c/v3, Cisco Network Plug and Play
- Dimensions (W x D x H): 445 x 345 x 44 mm (17.5 x 13.59 x 1.73 in)
- Weight: Approximately 4.6 kg (10.14 lb)
- Power supply: Internal, 100-240V AC, 50-60 Hz
- Cooling: 1x fan
- Acoustic noise: 34.8 dBA at 25°C
- MTBF: 698,220 hours at 25°C
- Certifications: UL 62368, CSA 22.2, CE, FCC Part 15 Class A

FAQs

Q: Does the C1200-24FP-4X require a separate license to operate?
A: No, the C1200-24FP-4X is a smart managed switch that does not require any additional licenses. All Layer 2 and Layer 3 static routing features are included out of the box, making it a cost-effective solution for SMB networks.

Q: Can this switch support 10G SFP+ transceivers on all four uplink ports simultaneously?
A: Yes, all four SFP+ ports support 10G SFP+ transceivers and can be used simultaneously for high-speed fiber uplinks or aggregation to core switches, providing up to 40 Gbps of uplink bandwidth.

Q: What is the maximum PoE budget and how is it distributed across ports?
A: The C1200-24FP-4X provides a total PoE budget of 375W across all 24 PoE+ ports, with each port capable of delivering up to 30W per IEEE 802.3af/at standards. Power is dynamically allocated based on connected device requirements.

Q: Is this switch suitable for powering high-density Wi-Fi 6 access point deployments?
A: Yes, with 375W total PoE budget and wire-speed 10G uplinks, the C1200-24FP-4X is ideal for powering Wi-Fi 6 access points, IP cameras, and VoIP phones in branch offices, retail, education, or small campus environments requiring reliable PoE and high-speed backhaul.

Q: What management options are available for deploying multiple C1200-24FP-4X switches?
A: The switch supports flexible management including Cisco Business Dashboard with embedded probe for cloud-assisted monitoring, Cisco Business mobile app for simplified setup, web UI, CLI via SSH/Telnet, SNMPv1/v2c/v3, and Cisco Network Plug and Play for zero-touch provisioning in multi-site deployments.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
