• Cisco C1200-24FP-4G 24-port PoE+ switch with SFP uplinks
1 1

Cisco

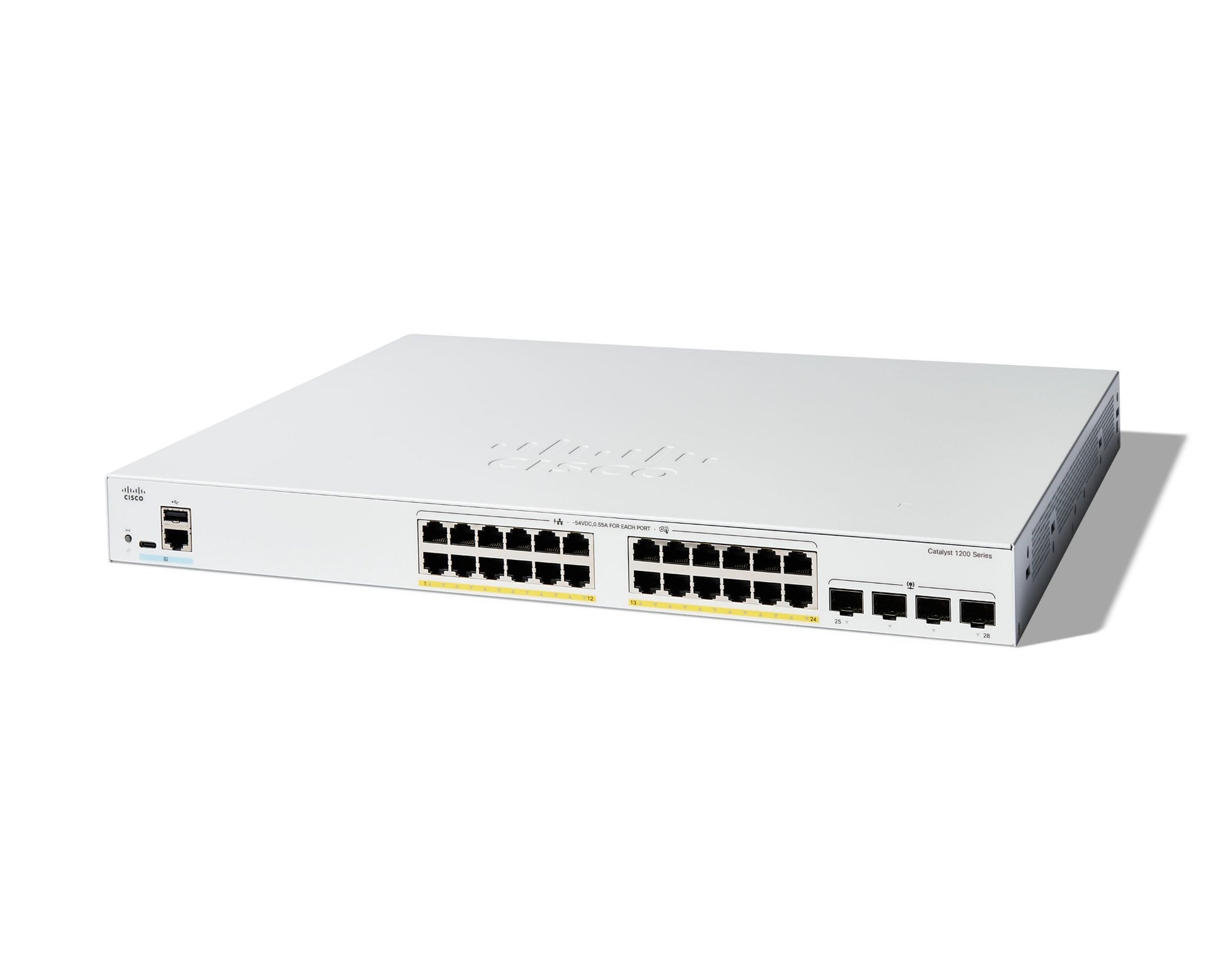

Cisco C1200-24FP-4G | Catalyst 1200 24-Port Gigabit PoE+ Switch, 375W, 4x 1G SFP

C1200-24FP-4G

1 in stock

$1,691.24 AUD
$1,691.24 AUD
$1,691.24 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco C1200-24FP-4G Catalyst 1200 is a smart managed Layer 3 switch designed for small to medium-sized businesses requiring high-density PoE deployment. With 24 Gigabit Ethernet PoE+ ports delivering 375W total power budget and 4 Gigabit SFP uplinks, it powers IP phones, wireless access points, and security cameras without external injectors. Managed via Cisco Business Dashboard, web GUI, or mobile app, this rack-mountable switch delivers robust security, VLAN segmentation, and static routing for growing enterprise networks.

Features

Layer 3 static routing for inter-VLAN communication without external router
- Up to 255 active VLANs with 802.1Q VLAN tagging
- Spanning Tree Protocol: 802.1d STP, 802.1w RSTP, 802.1s MSTP (8 instances), PVST+, and Rapid PVST+ (126 instances)
- IEEE 802.3af and 802.3at PoE/PoE+ with intelligent power management
- Quality of Service (QoS): 802.1p CoS, DSCP-based traffic prioritization, 4 egress queues per port
- Advanced security: 802.1X authentication, MAC-based authentication, dynamic ARP inspection, IP source guard
- DHCP snooping and IP-MAC-port binding for network integrity
- Access Control Lists (ACLs) for Layer 2/3/4 traffic filtering
- IPv4 and IPv6 dual-stack support with IPv6 management, ND snooping, and RA guard
- Link aggregation (LACP) with up to 8 groups and 8 ports per group
- Port mirroring (SPAN) for traffic monitoring and troubleshooting
- Storm control for broadcast, multicast, and unicast traffic
- Energy Efficient Ethernet (IEEE 802.3az) for reduced power consumption
- Cable diagnostics and Ethernet OAM (802.3ah) for fault detection
- SNMP v1/v2c/v3, RMON, syslog, and LLDP for comprehensive network monitoring
- Rack-mount kit included for standard 19-inch racks

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

24x 10/100/1000 Mbps PoE+ (802.3af/at) ports
- 4x 1G SFP uplinks for fiber or copper connectivity
- 375W total PoE power budget, up to 30W per port
- 56 Gbps switching capacity
- 41.66 Mpps forwarding rate
- Layer 3 static routing with up to 255 VLANs
- 8,000 MAC address table entries
- Jumbo frame support up to 9,000 bytes
- 1 cooling fan for active airflow
- Internal universal power supply: 100-240V AC, 50-60 Hz
- Dimensions: 445 x 345 x 44 mm (17.5 x 13.59 x 1.73 in), 1U rack-mountable
- Weight: 4.6 kg (10.14 lb)
- Operating temperature: -5°C to 50°C (23°F to 122°F)
- Certifications: UL 62368, CSA 22.2, CE, FCC Part 15 Class A
- MTBF: 698,220 hours at 25°C
- Management: Cisco Business Dashboard, web GUI, CLI (SSH/Telnet), SNMP v2/v3, Cisco Network Plug and Play

FAQs

Q: Does the C1200-24FP-4G require a license for full functionality?
A: No, the Catalyst 1200 Series operates without software licensing requirements. All Layer 2 and Layer 3 static routing features are included at no additional cost, simplifying deployment and total cost of ownership.

Q: What is the difference between the C1200-24FP-4G and C1200-24P-4G?
A: The C1200-24FP-4G provides full PoE with a 375W power budget, while the C1200-24P-4G offers 195W. The FP model includes a single cooling fan for thermal management under full PoE load, whereas the 24P model is fanless. Both share the same port configuration and Layer 3 capabilities.

Q: Can this switch be managed remotely?
A: Yes, the C1200-24FP-4G supports remote management via Cisco Business Dashboard (cloud-based), web interface, CLI over SSH, SNMP, and the Cisco Business mobile app. Cisco Network Plug and Play enables zero-touch provisioning for simplified deployment.

Q: Is the C1200-24FP-4G suitable for deploying wireless access points?
A: Absolutely. With 375W of PoE+ power, this switch can power up to 12 high-performance access points at 30W each, or more lower-power devices. The 4 SFP uplinks provide flexible fiber connectivity to core switches or wireless controllers.

Q: What security features does this switch include?
A: The switch includes 802.1X port-based authentication, dynamic ARP inspection, DHCP snooping, IP-MAC-port binding, Access Control Lists (ACLs), guest VLANs, and IPv6 security features such as ND snooping and RA guard, providing comprehensive network access control and threat mitigation.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
