• Cisco C1200-16T-2G switch with 16x 1G ports and 2x 1G SFP uplinks
1 1

Cisco

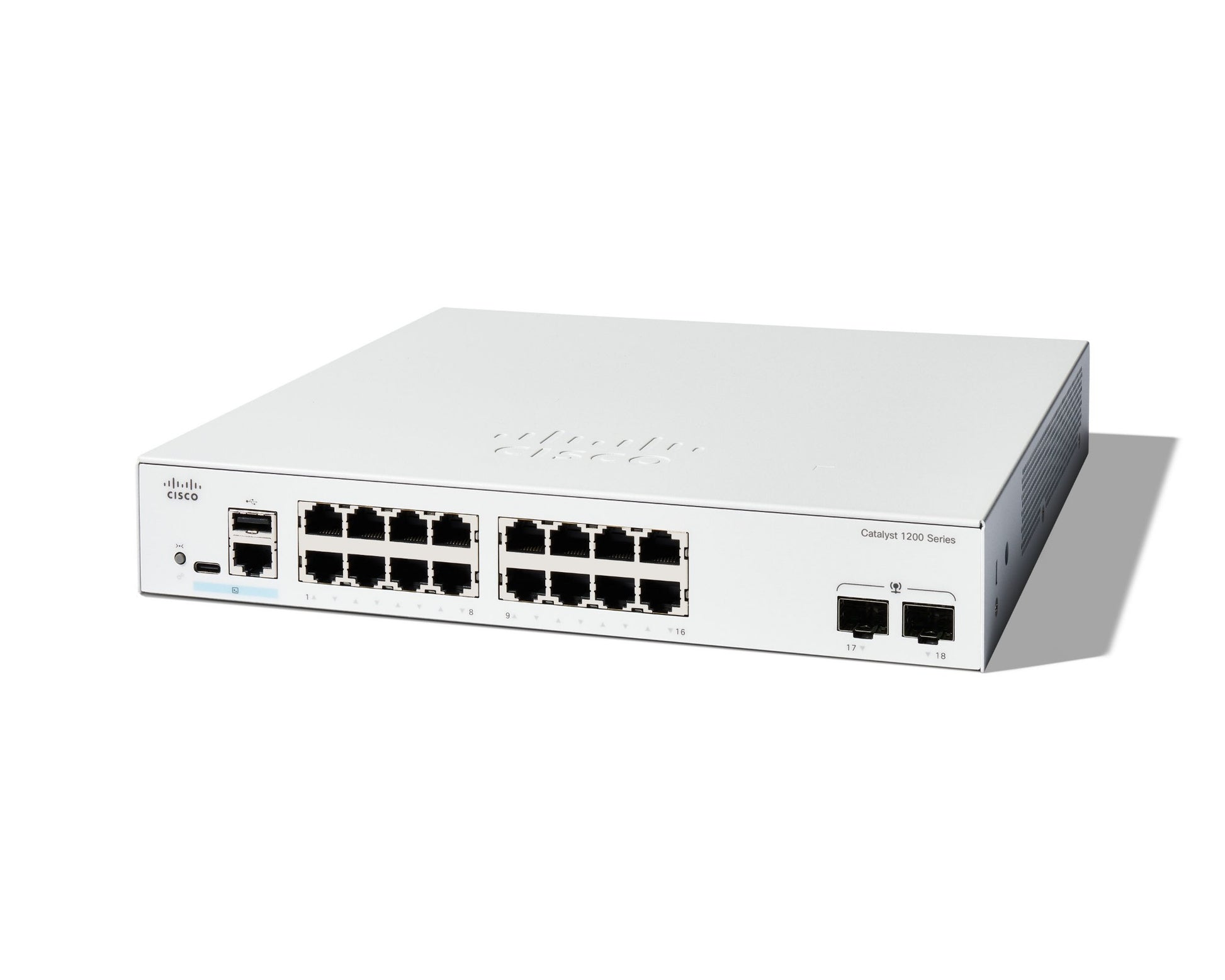

Cisco C1200-16T-2G | Catalyst 1200 16-Port Gigabit Switch, 2x 1G SFP

C1200-16T-2G

Stock Status: Enquire

$570.74 inc. GST
$518.85 ex. GST
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco C1200-16T-2G is a compact fanless smart switch designed for small and medium-sized business networks. It delivers 16 Gigabit Ethernet ports and 2 SFP uplinks with Layer 3 static routing, managed through Cisco Business Dashboard, mobile app, or web interface. Ideal for connecting computers, IP phones, and wireless access points with enterprise-grade security and reliability at an affordable price point.

Features

Layer 2 switching with Layer 3 static routing (up to 32 IPv4 static routes)
- Spanning Tree Protocol: 802.1d STP, 802.1w RSTP (default), 802.1s MSTP (8 instances), PVST+ and Rapid PVST+ (126 instances each)
- Link aggregation: 4 groups, 8 ports total
- VLAN support: 255 active VLANs, 802.1Q tagging, voice VLAN, GVRP/GARP
- IGMP v1/v2/v3 snooping with support for 255 multicast groups
- Quality of Service (QoS): 8 priority queues, traffic classification and prioritization
- Security: 802.1X authentication, port security, access control lists (512 ACL rules), DHCP snooping, IP Source Guard
- Management protocols: SSH-2, HTTPS, SNMP v2c/v3, RMON, RADIUS, Syslog, TFTP, SCP
- Energy Efficient Ethernet (IEEE 802.3az)
- Jumbo frame support up to 9000 bytes (default MTU 2000 bytes)
- Loop protection and broadcast storm control
- Boot integrity visibility for platform identity and software integrity
- Fanless, silent operation suitable for office environments
- Customized Linux-based operating system

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

16x 10/100/1000 Mbps Ethernet RJ-45 ports
- 2x 1G SFP uplinks
- Switching capacity: 36 Gbps (non-blocking, wire-speed)
- Forwarding rate: 26.78 Mpps (64-byte packets)
- Memory: 1 GB RAM
- Flash: 512 MB
- Layer 2 switching and Layer 3 static routing
- Supports up to 255 active VLANs
- Packet buffer: 1.5 MB
- Fanless design (silent operation)
- Internal universal power supply (100-240V AC, 50-60 Hz)
- Power consumption: approximately 18.6W (typical, no PoE)
- MTBF: 2,165,105 hours at 25°C
- Management: CLI, Web UI, SNMP, Cisco Business Dashboard, Cisco Business mobile app
- Dimensions: 10.56" W x 1.73" H x 10.69" D
- Operating temperature: 23°F to 122°F (-5°C to 50°C)
- Limited lifetime hardware warranty

FAQs

Q: Does the C1200-16T-2G support Power over Ethernet (PoE)?
A: No, the C1200-16T-2G is a non-PoE model. For PoE+ support with this form factor, consider the C1200-16P-2G, which provides 120W PoE budget across 16 ports.

Q: What management options are available for this switch?
A: The C1200-16T-2G can be managed via the local web interface, CLI (Telnet/SSH), SNMP, the Cisco Business Dashboard (cloud-based), or the Cisco Business mobile app for simplified setup and monitoring.

Q: Is a rack mount kit included with the C1200-16T-2G?
A: No, the C1200-16T-2G does not ship with a rack mount kit by default. Rack mounting hardware must be ordered separately as an accessory if rackmount installation is required.

Q: Does this switch require licensing or subscriptions?
A: No, the Catalyst 1200 Series operates without software licenses or subscription fees. All features are included out-of-the-box with a limited lifetime hardware warranty.

Q: What Layer 3 features does the C1200-16T-2G support?
A: The switch supports Layer 3 static routing with up to 32 IPv4 static routes and 16 IPv4 interfaces, enabling inter-VLAN routing and segmentation for small to midsize networks.
