• Cisco C1200-16P-2G 16-port PoE+ smart managed switch
1 1

Cisco

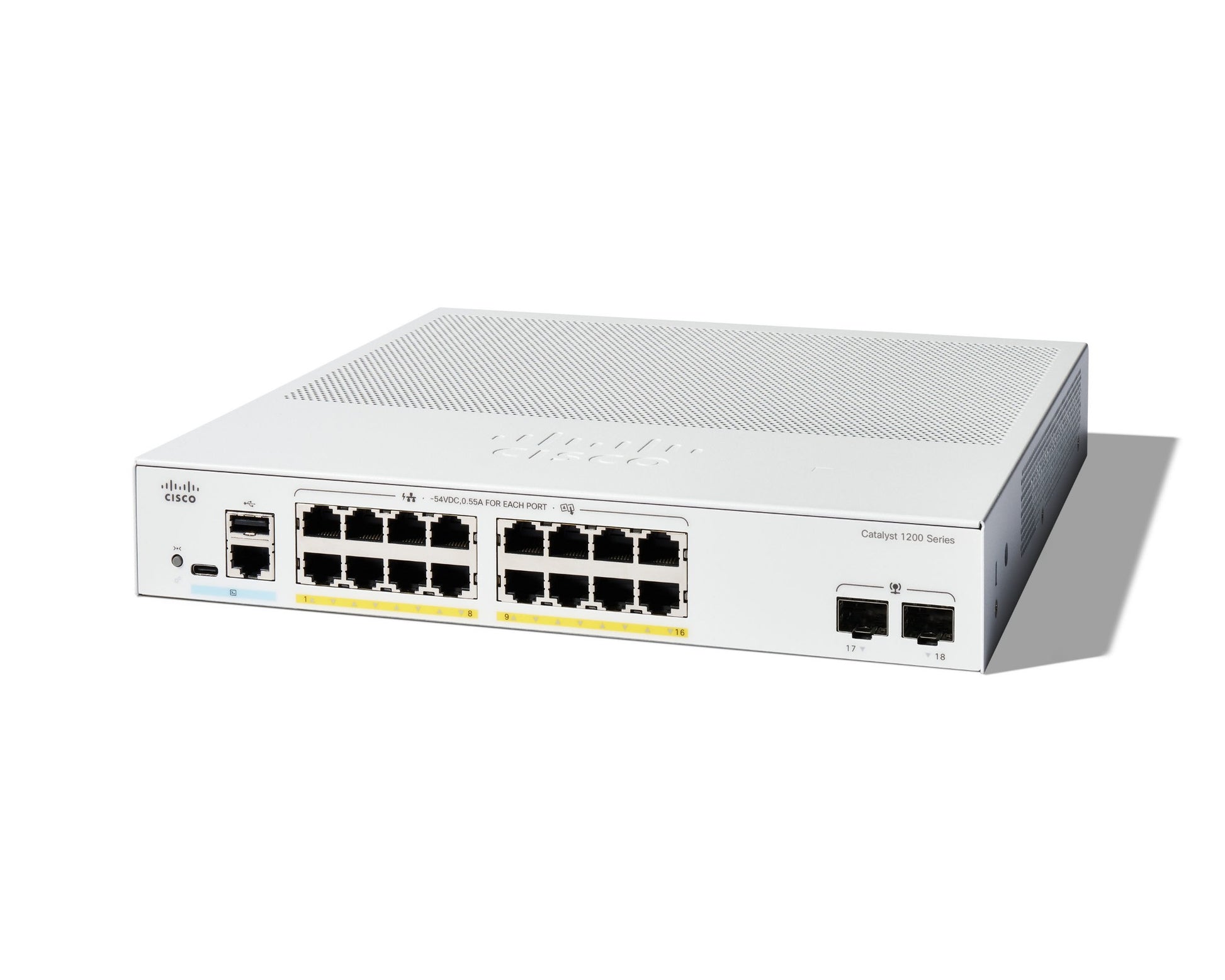

Cisco C1200-16P-2G | Catalyst 1200 16-Port Gigabit PoE+ Switch, 120W, 2x 1G SFP

C1200-16P-2G

Stock Status: Enquire

$878.67 AUD
$878.67 AUD
$878.67 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco C1200-16P-2G is a smart managed switch designed for small and medium-sized businesses, delivering 16 Gigabit Ethernet PoE+ ports with a 120W total power budget and 2 Gigabit SFP uplinks. This fanless, rack-mountable switch features Layer 3 static routing, VLAN support, QoS, and comprehensive security capabilities, making it ideal for deploying IP phones, wireless access points, and security cameras. Managed through the Cisco Business mobile app, web dashboard, or CLI, the C1200-16P-2G provides enterprise-level performance at an affordable price point for branch offices, retail, and education networks.

Features

Layer 3 static routing for inter-VLAN routing and network segmentation
- IEEE 802.1Q VLAN support with up to 256 VLANs
- Quality of Service (QoS) with 802.1p prioritization for voice and video traffic
- IEEE 802.1X port-based network access control
- Spanning Tree Protocol: 802.1d STP, 802.1w RSTP, 802.1s MSTP (8 instances), PVST+, Rapid PVST+ (126 instances)
- Comprehensive ACL support for traffic filtering and security
- IGMP snooping for efficient multicast traffic management
- Link aggregation (LACP) IEEE 802.3ad for increased bandwidth and redundancy
- Jumbo frame support up to 9000 bytes
- Storm control for broadcast, multicast, and unicast traffic
- DHCP snooping and IP Source Guard for security
- Denial-of-Service (DoS) attack prevention
- LLDP and LLDP-MED for device discovery and VoIP phone configuration
- Cisco Discovery Protocol (CDP) for network visibility
- Perpetual PoE to maintain power to connected devices during switch reboots
- Energy Efficient Ethernet (EEE) IEEE 802.3az for reduced power consumption
- IPv4 and IPv6 dual-stack support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

16x 10/100/1000 Mbps PoE+ RJ-45 ports
- 2x 1G SFP uplink ports
- PoE+ power budget: 120W total (up to 30W per port, 802.3at/af compliant)
- Switching capacity: 36 Gbps
- Forwarding rate: 26.78 Mpps (64-byte packets)
- MAC address table: 8,000 entries
- Layer 3 static routing
- Management: Cisco Business Dashboard, mobile app, web UI, CLI, SNMP
- Console ports: RJ-45 and USB Type-C
- Power supply: Internal universal 100-240V AC, 50-60 Hz
- Fanless design for silent operation
- Operating temperature: -5°C to 50°C (23°F to 122°F)
- Dimensions: 268 x 297 x 44 mm (10.56 x 11.69 x 1.73 inches)
- Rack-mountable (mounting kit not included)
- Certifications: UL 62368, CSA 22.2, CE, FCC Part 15 Class A

FAQs

Q: Does this switch require a license to operate?
A: No, the C1200-16P-2G is a smart managed switch that operates without requiring additional licenses. All features including Layer 3 static routing, VLAN, QoS, and security capabilities are available out of the box.

Q: Can this switch power 802.11ac wireless access points?
A: Yes, the C1200-16P-2G supports PoE+ with up to 30W per port, which is sufficient to power modern 802.11ac and Wi-Fi 6 access points, as well as IP cameras, VoIP phones, and other PoE-enabled devices within the 120W total power budget.

Q: Is the C1200-16P-2G suitable for noise-sensitive environments?
A: Yes, the switch features a fanless design for completely silent operation, making it ideal for installation in open offices, classrooms, retail spaces, medical clinics, or any environment where acoustic noise is a concern.

Q: What management options are available for this switch?
A: The C1200-16P-2G can be managed through the Cisco Business mobile app, Cisco Business Dashboard (web-based), local web UI, CLI via console or SSH, and SNMP for integration with network management systems.

Q: What SFP transceivers are compatible with the uplink ports?
A: The 2x 1G SFP uplink ports support standard Cisco 1000BASE-T, 1000BASE-SX, and 1000BASE-LX SFP modules, including GLC-T, GLC-SX-MM, GLC-LH-SM, and BiDi transceivers for flexible fiber or copper backbone connectivity.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
