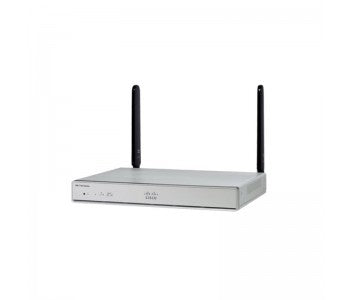

• Cisco C1161-8P ISR 1100 router with silver sleek design and black antennas
1 1

Cisco

Cisco C1161-8P | ISR 1100 Router, 8-Port Gigabit, 2x GE SFP/RJ45

C1161-8P

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco C1161-8P is a compact ISR 1100 Series router delivering high-performance SD-WAN and security for branch offices. It features 8 Gigabit Ethernet LAN ports, dual WAN connectivity with one GE copper port and one GE SFP/RJ45 combo port, and runs Cisco IOS XE software. With 4GB DRAM and 4GB Flash, the router supports up to 825 Mbps encrypted throughput, making it ideal for small to medium enterprise deployments requiring robust connectivity and integrated security.

Features

Cisco IOS XE Software with unified platform for traditional routing and SD-WAN
- Integrated security features including IPsec VPN, firewall, and intrusion prevention
- Flexible WAN options: dual Gigabit Ethernet WAN ports with fiber SFP support
- Optional 4G LTE Advanced connectivity via pluggable module (CAT4)
- Application Visibility and Control (AVC) for traffic prioritization
- Quality of Service (QoS) with Class-Based Weighted Fair Queuing (CBWFQ)
- Dynamic Multipoint VPN (DMVPN) for scalable site-to-site connectivity
- Advanced routing protocols including EIGRP, OSPF, BGP
- SNMP, NETCONF, RESTCONF for flexible management and automation
- Compact, fanless design for quiet operation in office environments
- USB 3.0 port for storage and backup
- Easy deployment with zero-touch provisioning and cloud management options
- Separate data and control plane architecture for enhanced reliability
- Support for Network Address Translation (NAT) and Access Control Lists (ACLs)
- Optional PoE/PoE+ capability for powering connected devices (4 PoE or 2 PoE+ ports)

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

8x Gigabit Ethernet LAN ports (RJ45)
- 1x Gigabit Ethernet WAN port (copper)
- 1x Gigabit Ethernet WAN/SFP combo port (copper/fiber)
- Memory: 4GB DRAM, 4GB Flash (base configuration)
- Maximum encrypted throughput: 825 Mbps (single tunnel, IMIX)
- SD-WAN IPsec throughput: 595 Mbps (IMIX)
- IPv4 forwarding throughput: 1765 Mbps (IMIX)
- IPsec tunnels: Up to 100 (autonomous mode), 200 SD-WAN overlay tunnels
- 1x USB 3.0 port, 1x micro-USB console port
- Optional PoE/PoE+ upgrade available (4 PoE or 2 PoE+ ports with 150W PSU)
- Optional LTE pluggable module support (CAT4)
- Dimensions: 1.65 x 10.80 x 7.85 in (41.9 x 274 x 199 mm)
- Weight: 3.48 lb (1.58 kg)
- Power supply: 66W (default), 150W for PoE/PoE+ configurations
- Operating temperature: 0°C to 40°C
- Cisco IOS XE Software (minimum version 16.11.1)

FAQs

Q: Does the C1161-8P include PoE capability?
A: The base C1161-8P model does not include PoE by default. However, optional PoE/PoE+ upgrades are available, providing either 4 PoE ports or 2 PoE+ ports. When PoE is selected, the default 66W power supply is replaced with a 150W unit.

Q: What SD-WAN capabilities does this router support?
A: The C1161-8P supports Cisco SD-WAN (controller mode) with IOS XE SD-WAN software, delivering up to 595 Mbps SD-WAN IPsec throughput and supporting up to 200 SD-WAN overlay tunnels. It can also run in autonomous mode (non-SD-WAN) for traditional routing deployments.

Q: Can I upgrade the memory on the C1161-8P?
A: No, the DRAM and Flash memory cannot be field-upgraded. The base C1161-8P comes with 4GB DRAM and 4GB Flash. If you require 8GB DRAM and 8GB Flash for application hosting capabilities, you should select the C1161X-8P variant instead.

Q: What WAN connectivity options are available?
A: The C1161-8P provides two WAN interfaces: one Gigabit Ethernet copper WAN port and one Gigabit Ethernet combo port supporting both copper (RJ45) and fiber (SFP) connectivity. Additionally, an optional LTE pluggable module can be added for wireless WAN backup or primary connectivity.

Q: What deployment scenarios is the C1161-8P best suited for?
A: This router is ideal for small to medium enterprise branch offices requiring secure SD-WAN connectivity, multi-site VPN deployments, and integrated routing with security features. Its compact form factor, dual WAN ports, and optional LTE support make it well-suited for retail, healthcare, and distributed enterprise locations.
