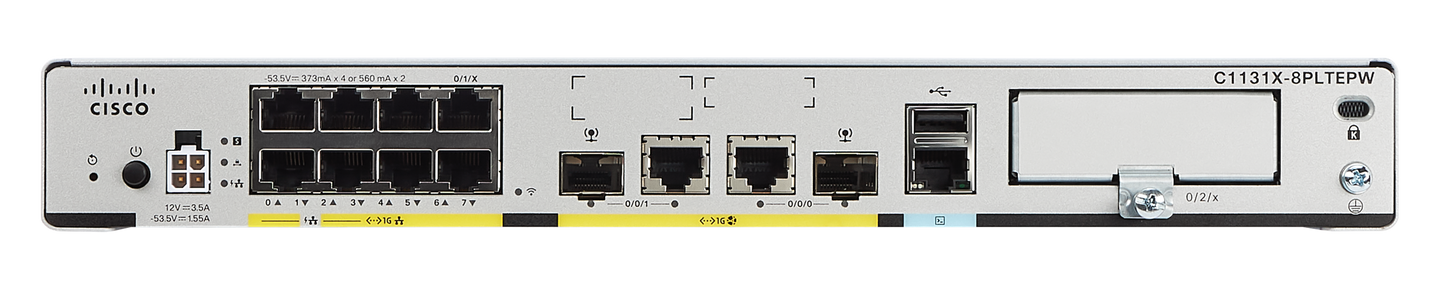

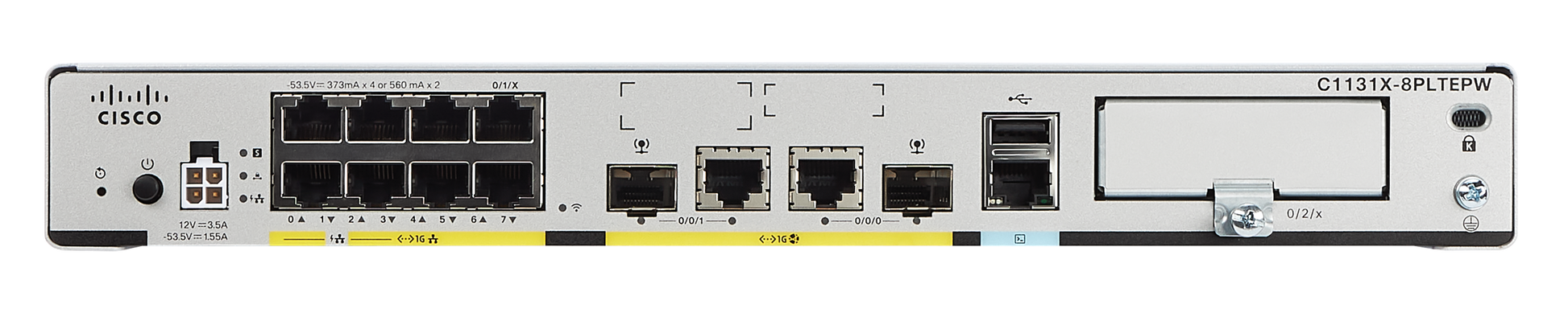

• Cisco C1131X-8PLTEPWZ router with 8x 1G LAN PoE+ ports and yellow label
1 1

Cisco

Cisco C1131X-8PLTEPWZ | ISR 1100X 8-Port PoE+ Router, 2x 1G SFP, Wi-Fi 6, LTE

C1131X-8PLTEPWZ

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco C1131X-8PLTEPWZ is a compact integrated services router combining routing, switching, and wireless capabilities in one device. It features eight Gigabit Ethernet PoE+ LAN ports, dual 1G SFP WAN ports, embedded Wi-Fi 6 dual-band access point, and a pluggable LTE Advanced Pro module slot with GPS and SMS support. Ideal for secure SD-WAN branch deployments requiring converged wired, wireless, and cellular connectivity.

Features

Cisco IOS XE operating system with regular security updates
- SD-WAN capabilities with application-aware routing and policy-based traffic steering
- Integrated Wi-Fi 6 (802.11ax) with MU-MIMO for high-density wireless environments
- Layer 3 routing with static routes, RIP, OSPF, EIGRP, and BGP support
- Advanced security features including zone-based firewall (ZBFW), VPN, and IPsec encryption
- LTE Advanced Pro cellular WAN with GPS for location-based services and SMS for management alerts
- Embedded 8-port Gigabit Ethernet switch with PoE+ for simplified branch deployments
- Application hosting on 8GB DRAM and 16GB flash for third-party containers and services
- Quality of Service (QoS) for traffic prioritization and bandwidth management
- Dual SFP uplinks for flexible fiber or copper WAN connectivity
- USB port for external storage, cellular backup, or out-of-band management
- Zero-touch provisioning with Cisco DNA Center and Plug and Play
- High availability with cellular and dual WAN failover support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

8x Gigabit Ethernet LAN ports with 802.3at PoE+ support
- 2x Gigabit Ethernet WAN/SFP combo ports
- 1x pluggable LTE Advanced Pro module slot with GPS and SMS support
- Embedded Wi-Fi 6 (802.11ax) dual-band access point with 2x2 MU-MIMO
- 8GB DRAM and 16GB flash memory for application hosting
- Maximum encrypted throughput: 650 Mbps (single tunnel, IMIX)
- Cisco IOS XE software with SD-WAN controller mode support
- 1x USB 2.0 Type-A port for peripheral connectivity
- Desktop or rack-mountable form factor
- Dimensions: 1.65 x 10.80 x 7.85 inches
- Management: CLI, web GUI, SNMP, Cisco DNA Center

FAQs

Q: Does this router support SD-WAN?
A: Yes, the C1131X-8PLTEPWZ runs Cisco IOS XE software and supports both autonomous mode and controller-managed SD-WAN mode, enabling advanced path selection, application-aware routing, and centralized orchestration through Cisco vManage.

Q: What is the PoE power budget for the LAN ports?
A: The eight Gigabit Ethernet LAN ports support 802.3at PoE+ (up to 30W per port). Total PoE budget depends on the power supply configuration; verify power requirements for your specific deployment and connected devices.

Q: Is the LTE module included or sold separately?
A: The C1131X-8PLTEPWZ has a pluggable module slot for LTE Advanced Pro, but the cellular module is typically sold separately. Select the appropriate regional LTE module (CAT6 or CAT4) and SIM card for your carrier and deployment location.

Q: Can the embedded Wi-Fi access point operate in standalone mode?
A: Yes, the embedded Wi-Fi 6 access point supports autonomous mode, Mobility Express for controller-less small deployments, or CAPWAP mode for integration with a Cisco wireless LAN controller.

Q: What licensing is required for advanced features?
A: Advanced routing, security, and SD-WAN features typically require Cisco DNA Essentials or Advantage licensing. Basic routing and switching functions operate without additional licenses; consult Cisco documentation for your specific feature requirements.
