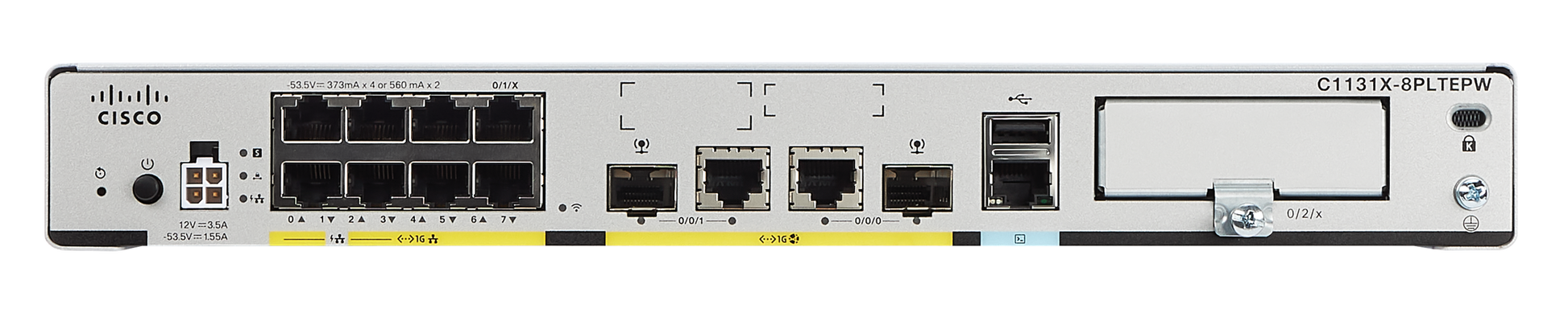

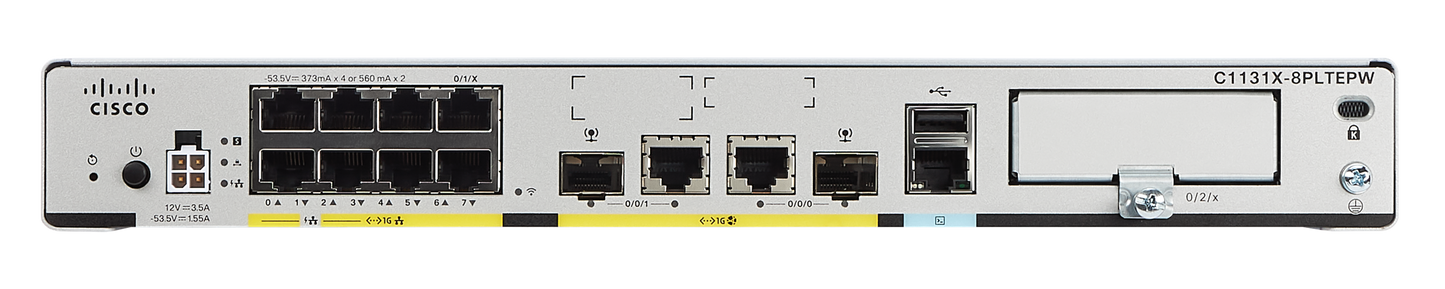

• Cisco C1131-8PWZ router with 8x 1G LAN PoE+ ports
1 1

Cisco

Cisco C1131-8PWZ | ISR 1100 8-Port PoE+ Router, 2x 1G SFP, Wi-Fi 5, LTE-Ready

C1131-8PWZ

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco C1131-8PWZ ISR 1100 router delivers converged branch connectivity in a compact platform, combining 8 Gigabit Ethernet PoE+ LAN ports with dual Gigabit Ethernet WAN/SFP interfaces for flexible uplink options. With integrated Wi-Fi 5 dual-band wireless, a pluggable LTE module slot featuring SMS and GPS capability, and SD-WAN readiness, this router is purpose-built for secure, high-availability branch deployments. Ideal for small to medium enterprises seeking unified wired, wireless, and cellular WAN connectivity with enterprise-grade security and performance.

Features

Integrated Wi-Fi 5 (802.11ac) dual-band wireless access point with 2x2 MIMO
- Pluggable LTE module slot for cellular WAN with SMS/GPS capability
- SD-WAN support with intelligent path control and application optimization
- 8x Gigabit Ethernet PoE+ LAN ports for IP phones, cameras, and access points
- Dual Gigabit Ethernet WAN/SFP combo ports for fiber or copper uplinks
- Advanced security: Zone-based firewall, IPsec VPN, FlexVPN, DMVPN
- Comprehensive routing: OSPF, EIGRP, BGP, static routing, policy-based routing
- High availability: VRRP, HSRP, MHSRP for redundant gateway configurations
- QoS and traffic shaping for voice, video, and data prioritization
- Embedded Wireless Controller for simplified wireless deployment
- Application hosting capability with Cisco IOx framework
- USB 3.0 console and peripheral support for storage or 4G dongles
- Compact fanless or low-noise design suitable for office environments
- Cisco IOS XE Software with universal image and right-to-use licensing

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

LAN Ports: 8x Gigabit Ethernet PoE+ (802.3at)
- WAN Ports: 2x Gigabit Ethernet/SFP combo
- Wireless: Integrated Wi-Fi 5 (802.11ac) dual-band access point, 2x2 MIMO, Z domain
- Cellular: Pluggable LTE module slot with SMS/GPS support
- Memory: 4GB DRAM, 8GB flash storage
- Throughput: Up to 650 Mbps encrypted (single tunnel IMIX)
- Management: Cisco IOS XE Software, CLI, web GUI, SNMP
- Connectivity: USB 3.0 console port, USB peripheral support
- Power: External AC power supply, PoE+ supported on all LAN ports
- Form Factor: Compact desktop/wall-mountable design

FAQs

Q: What wireless standard does the integrated access point support?
A: The C1131-8PWZ features an integrated Wi-Fi 5 (802.11ac) dual-band access point with 2x2 MIMO capability, providing concurrent 2.4GHz and 5GHz wireless connectivity for branch office users and IoT devices.

Q: Can this router support cellular failover for WAN redundancy?
A: Yes, the C1131-8PWZ includes a pluggable LTE module slot that accepts compatible Cisco cellular modules, enabling 4G LTE Advanced backup connectivity with integrated SMS and GPS functionality for resilient WAN failover and remote management.

Q: Is SD-WAN functionality included with this model?
A: The C1131-8PWZ is SD-WAN ready and supports Cisco SD-WAN capabilities through appropriate software licensing (Essentials or Advantage tier). SD-WAN features enable intelligent path selection, application-aware routing, and centralized orchestration across multiple WAN links.

Q: What type of SFP modules are compatible with the WAN ports?
A: The dual WAN ports support Gigabit Ethernet SFP/RJ45 combo interfaces, compatible with standard 1000BASE-X SFP optics including single-mode and multimode fiber transceivers, providing flexible fiber or copper WAN handoff options.

Q: Can the integrated access point operate in controller mode?
A: Yes, the embedded wireless access point supports both autonomous mode and Embedded Wireless Controller mode, allowing simplified deployment in small to medium branch locations without requiring a separate wireless LAN controller.
