• Cisco C1131-8PLTEPWZ router with 8x 1G PoE+ LAN ports
1 1

Cisco

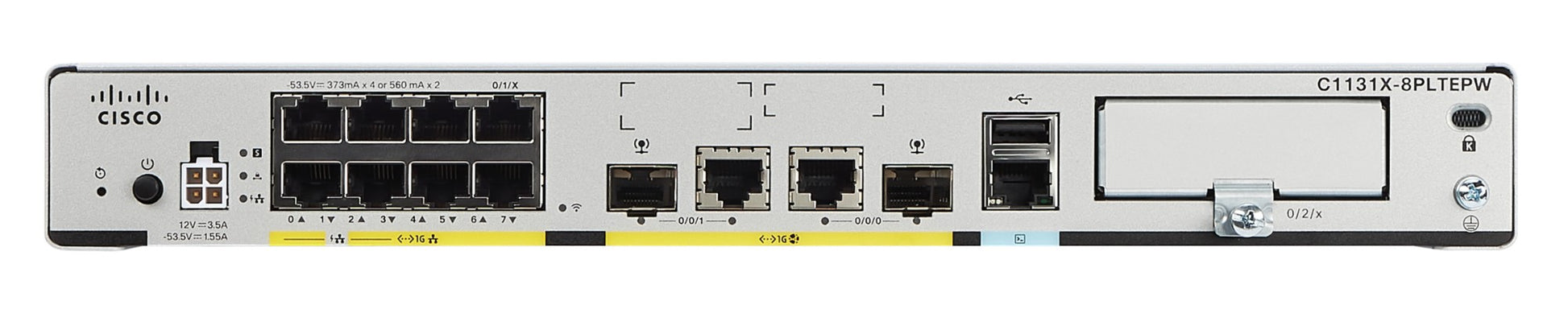

Cisco C1131-8PLTEPWZ | ISR 1100 8-Port Gigabit Router, LTE, Wi-Fi 5, 2x SFP

C1131-8PLTEPWZ

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco C1131-8PLTEPWZ ISR 1100 Series router delivers enterprise-grade secure connectivity for branch offices and remote sites. It integrates 8 Gigabit Ethernet LAN ports, dual Gigabit WAN/SFP ports, pluggable LTE Advanced Pro cellular connectivity with GPS/SMS, and an embedded Wi-Fi 5 dual-band access point. With SD-WAN readiness and Cisco IOS XE software, this router provides comprehensive security, application visibility, and flexible WAN options in a compact desktop form factor.

Features

Cisco IOS XE Software with universal image and right-to-use licensing
- SD-WAN controller mode and autonomous mode support
- Integrated security: firewall, VPN, IPS, URL filtering (requires Security license)
- Layer 3 routing protocols: BGP, OSPF, EIGRP, static routing
- QoS and traffic shaping for application performance optimization
- Dual WAN connectivity: Gigabit Ethernet, SFP fiber, and LTE cellular
- Embedded Wi-Fi 5 (802.11ac Wave 2) dual-band access point with up to 400 client support
- GPS and SMS support for LTE cellular module
- Application hosting capabilities with Docker container support
- NAT, DHCP server/client, DNS proxy
- VLAN support (IEEE 802.1Q) for network segmentation
- Management via CLI, web GUI, SNMP, and Cisco DNA Center
- USB 3.0 port for external storage and USB LTE dongles
- Compact desktop form factor with low power consumption
- Hot-swappable pluggable LTE module for easy upgrades

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

8x Gigabit Ethernet (10/100/1000) LAN ports
- 2x Gigabit Ethernet WAN/SFP combo ports
- Pluggable LTE Advanced Pro (3GPP Category 18) cellular module with GPS and SMS support
- Embedded Wi-Fi 5 (802.11ac Wave 2) dual-band access point, up to 867 Mbps on 5 GHz, aggregate 1 Gbps
- 4 GB DRAM, 8 GB flash storage
- Maximum encrypted throughput: 650 Mbps (single tunnel, IMIX)
- Optional PoE/PoE+ upgrade available (requires ISR-1100-POE4 module)
- SD-WAN capable (Cisco DNA Essentials or Advantage subscription required)
- Management: CLI, web GUI, SNMP, Cisco IOS XE 17.7.1 or later
- USB 3.0 Type A port for storage and peripherals
- Console: RJ-45
- Power: External AC 100-240V (50/60 Hz) power supply
- Dimensions: Compact desktop form factor
- Operating temperature: 0°C to 40°C (32°F to 104°F)
- Operating humidity: 10% to 85% non-condensing

FAQs

Q: Does the C1131-8PLTEPWZ support Power over Ethernet?
A: PoE and PoE+ are optional on this model. The ISR-1100-POE4 module can be added to provide up to 4 PoE or 2 PoE+ ports on the 8 Gigabit Ethernet LAN interfaces, ideal for powering IP phones or access points.

Q: What LTE cellular capabilities does this router include?
A: This model includes a pluggable LTE Advanced Pro (3GPP Category 18) module slot with GPS and SMS support, offering high-speed cellular WAN backup or primary connectivity for remote sites. The pluggable module must be ordered separately.

Q: Can this router be used for SD-WAN deployments?
A: Yes, the C1131-8PLTEPWZ is SD-WAN ready and can run in controller mode with Cisco SD-WAN (Viptela) software. SD-WAN functionality requires a Cisco DNA Essentials or Advantage subscription license.

Q: What is the Wi-Fi capability of the embedded access point?
A: The router has an integrated Wi-Fi 5 (802.11ac Wave 2) dual-band access point supporting up to 867 Mbps on the 5 GHz band and an aggregate data rate of 1 Gbps across both 2.4 GHz and 5 GHz radios. It can support up to 200 clients per radio (400 total).

Q: What is the difference between C1131 and C1131X models?
A: The C1131 models include 4 GB DRAM and 8 GB flash, while C1131X models include 8 GB DRAM and 16 GB flash for enhanced application hosting capabilities. This C1131-8PLTEPWZ is the standard 4 GB model.
